APC AP6038A
  • APC AP6038A
  • APC AP6038A
  • APC AP6038A

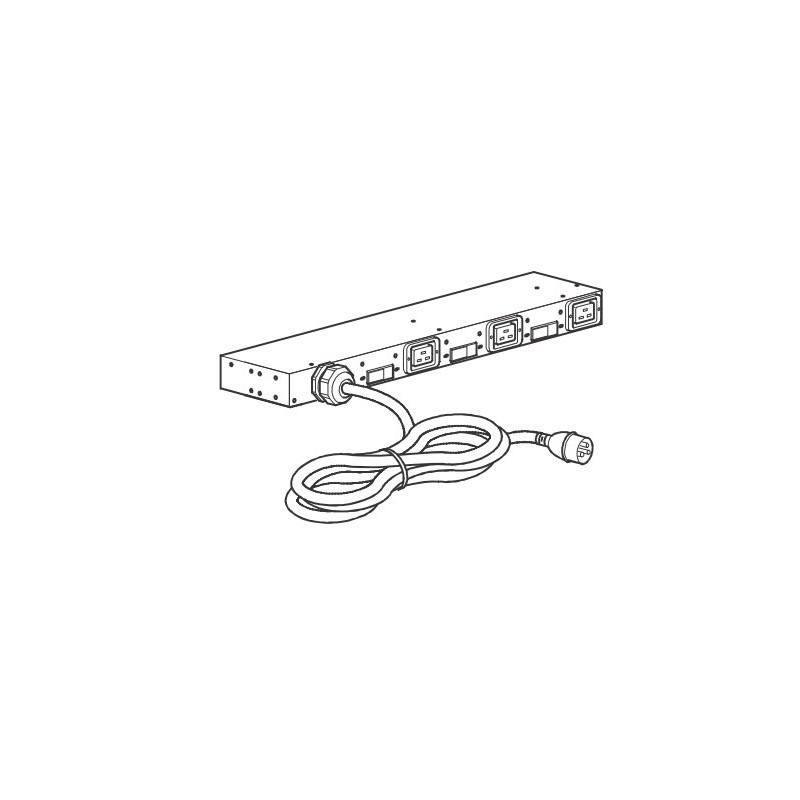

The APC by Schneider Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack.
AC outlets quantity3 AC outlet(s)
Cable length3.65 m
CertificationVDE, CE
Colour of productBlack
Dimensions (WxDxH)39.49 x 19.5 x 50.01 mm
Input frequency50/60 Hz
Maximum current48 A
Maximum input current per phase48 A
MountingHorizontal
Nominal input voltage200-240 V
Nominal output voltage200-240 V
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)0 - 50 °C
PDU typesBasic
Power plugC19 coupler
Rack mounting1U
RoHS complianceYes
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-15 - 60 °C
Weight5400 g

AP6038A.pdf

APC AP6038A Data Sheet

Download (709.43k)
