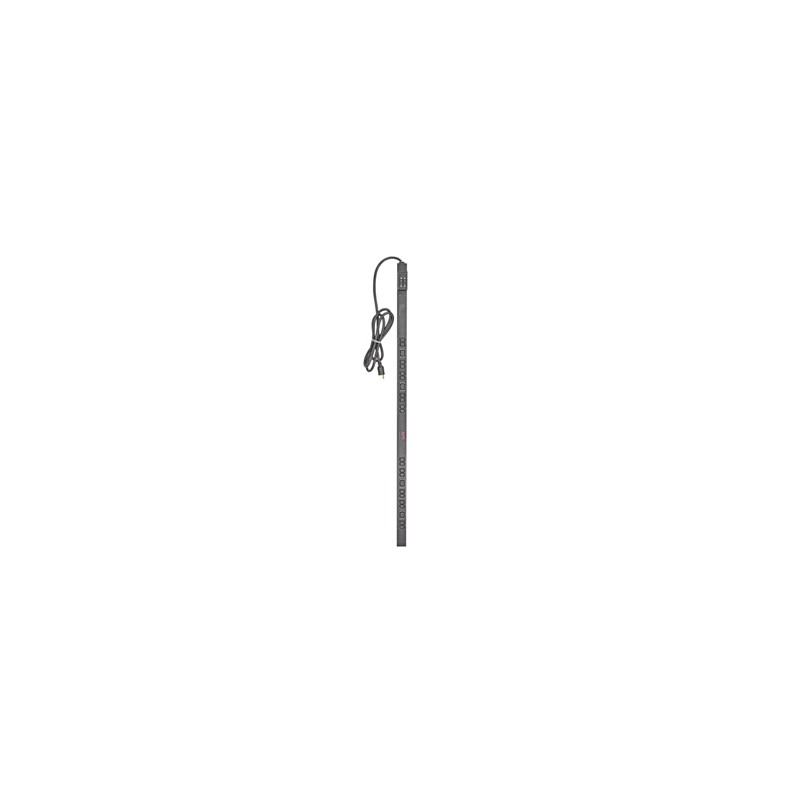

APC Basic Rack 4.992kVA | APC Power Distribution Units
  • APC Basic Rack 4.992kVA | APC Power Distribution Units
  • APC Basic Rack 4.992kVA | APC Power Distribution Units
-Toolless mounting capability.

-Vertical mounting capability.

-Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

-Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

-Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Cable length 3.05 m
Certification cUL,CSA C22.2 No. 60950-1-03,METI Denan,UL 60950-1,UL
Colour of product Black
Dimensions (WxDxH) 56 x 44 x 1619 mm
Input connection type NEMA L6-30P
Input frequency 50/60 Hz
Load capacity 4992 VA
Maximum input current per phase 30 A
Maximum total current draw per phase 24 A
Nominal input voltage 208 V
Operating relative humidity (H-H) 0 - 95 %
Operating temperature (T-T) 0 - 45 °C
Output connections (20) IEC 320 C13 \n(4) IEC 320 C19
Storage relative humidity (H-H) 0 - 95 %
Storage temperature (T-T) -25 - 65 °C
Weight 5570 g

Specific References

EAN13
0731304225560

APC Basic Rack 4.992kVA

Rack PDU, Basic, Zero U, 30A, 200/208V, (20)C13 & (4)C19
Out of Stock
£512.06
£426.72 Ex. VAT
Reference: AP7541
Quantity
