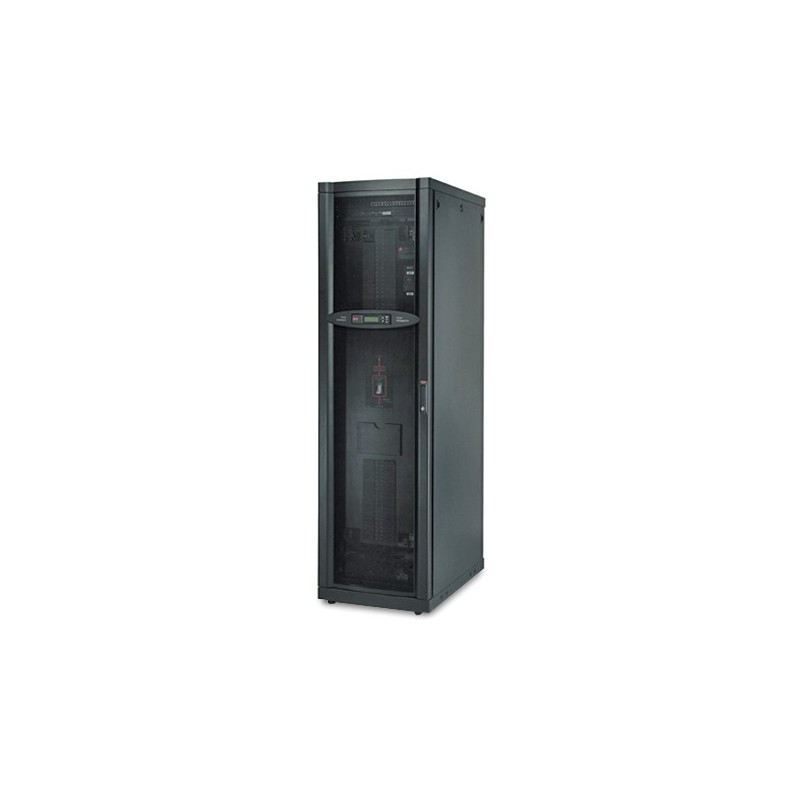

APC InfraStruXure PDU 60kW 400V/400V
  • APC InfraStruXure PDU 60kW 400V/400V
Load Test Port

Load test port provides simple connection for full testing of a Symmetra PX UPS



Remote Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.



Smallest footprint

Minimizes your real estate expenses



Circuit Breaker Panel

Provides breaker positions for distribution to racks and power zones



System mobility

PDU equipment can easily be relocated to accommodate a changing data center environment.
Certification UL Listed
Colour of product Black
Dimensions (WxDxH) 600 x 914 x 2159 mm
Input frequency 50 Hz
Maximum input current per phase 1667 A
Operating relative humidity range 0 - 95 %
Operating temperature range (T-T) 0 - 40 °C
Package dimensions (WxDxH) 914 x 1219 x 2184 mm
Package weight 454.56 kg
Storage relative humidity range 0 - 95 %
Storage temperature range (T-T) -15 - 45 °C
Weight 410 kg

Specific References

EAN13
0731304210689

APC InfraStruXure PDU 60kW 400V/400V

InfraStruXure PDU 60kW 400V/400V
Out of Stock
£8,432.31
Tax excluded
Reference: PD60H5HK1
Quantity
