Toolless Mounting Capabilities
Units do not require additional tools to mount into APC NetShelter VX, which allows the users to quickly and easily mount units in the rear of the enclosure.
Vertical Mounting Capabilities
Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter VX enclosures.
Units do not require additional tools to mount into APC NetShelter VX, which allows the users to quickly and easily mount units in the rear of the enclosure.
Vertical Mounting Capabilities
Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter VX enclosures.
| Cable length | 3.05 m |
| Certification | cUL Listed,CSA C22.2 No. 60950-1-03,UL 60950-1,UL Listed, RoHS |
| Colour of product | Black |
| Dimensions (WxDxH) | 56 x 44 x 1778 mm |
| Input connection type | NEMA L21-20P |
| Input frequency | 50/60 Hz |
| Load capacity | 5700 VA |
| Maximum input current per phase | 20 A |
| Maximum total current draw per phase | 16 A |
| Operating temperature range (T-T) | 0 - 45 °C |
| Output connections | 42x NEMA 5-20R |
| Storage temperature range (T-T) | -25 - 65 °C |
| Weight | 5.57 kg |
Specific References
- EAN13
- 0731304223085

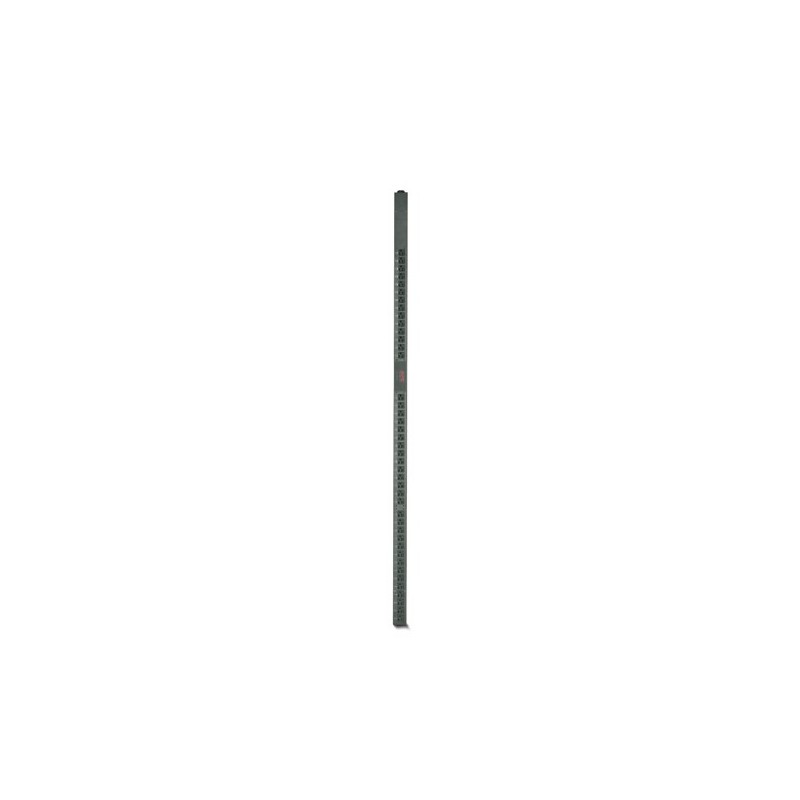

APC Rack PDU,Basic,ZeroU,5.7kW,120V
Basic Rack PDU , Input: 208V 3PH , Input Connections: NEMA L21-20P , Cord Length: 10 feet ( 3.05 meters ) , Output: 120V , Output Connections: NEMA 5-20R
£398.86
Tax excluded
Basic Rack PDU , Input: 208V 3PH , Input Connections: NEMA L21-20P , Cord Length: 10 feet ( 3.05 meters ) , Output: 120V , Output Connections: NEMA 5-20R
