-High Power Density.
-Toolless mounting capability.
-Vertical mounting capability.
-Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
-Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
-Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
-Toolless mounting capability.
-Vertical mounting capability.
-Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
-Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
-Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
| Cable length | 1.83 m |
| Certification | cUL,CSA C22.2 No. 60950-1-03,METI Denan,UL 60950-1,UL |
| Colour of product | Black |
| Dimensions (WxDxH) | 55 x 88 x 927 mm |
| Input connection type | Hubbell CS8365C |
| Input frequency | 47/63 Hz |
| Maximum total current draw per phase | 20 A |
| Operating relative humidity range | 5 - 95 % |
| Operating temperature range (T-T) | -5 - 45 °C |
| Output connections | (3) IEC 320 C13 (6) IEC 320 C19 |
| Storage relative humidity range | 5 - 95 % |
| Storage temperature range (T-T) | -25 - 65 °C |
| Weight | 7.25 kg |
Similar products
-
APC Service Bypass PDU
-
APC Service Bypass PDU 230V 16AMP W/ (6)...
-
APC In-Line Current Meter, 16A, 230V,...
-
APC In-Line Current Meter
-
APC SBPAR10K20H-WP
APC Rack PDU, Basic, Zero U

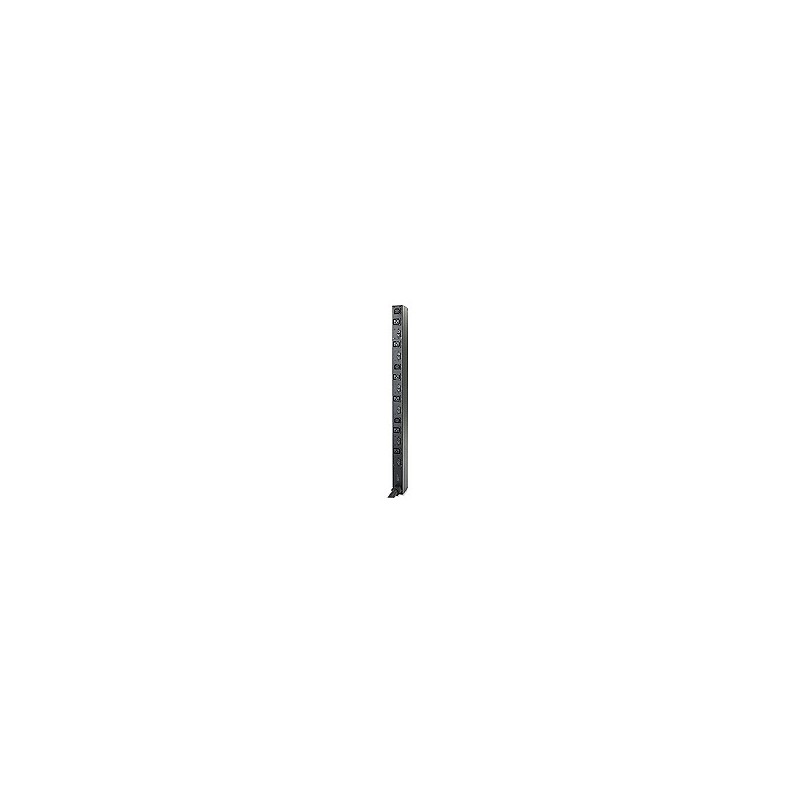

Rack PDU, Basic, Zero U, 14.4kW, 208 V, (6) C19 & (3) C13
