Proven Industrial UPS power protection for control applications and harsh environments.
| AC input frequency | 40-70 Hz |
| AC outlet types | C13 coupler,C14 coupler |
| AC outlets quantity | 10 AC outlet(s) |
| Cables included | USB |
| Certification | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
| Depth | 715 mm |
| Display | LCD |
| Ethernet LAN (RJ-45) ports | 2 |
| Height | 263 mm |
| LED indicators | Power,Status |
| Manual | Y |
| Maximum current | 47 A |
| Maximum input current per phase | 54 A |
| Maximum power | 10000 W |
| Maximum total current draw per phase | 18 A |
| Mounting | vertical |
| Nominal input voltage | 230, 400 3PH V |
| Nominal output voltage | 230 V |
| Non-operating altitude | 0 - 15240 m |
| On/off switch | Y |
| Operating altitude | 0 - 3048 m |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | 32 - 104 °F |
| Output voltage | 220/230/240 V |
| Package depth | 1000 mm |
| Package height | 461 mm |
| Package type | box |
| Package weight | 130000 g |
| Package width | 600 mm |
| Packaging content | CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web/SNMP management card |
| PDU types | Basic |
| Rack mount kit | Y |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -15 - 45 °C |
| Surge energy rating | 480 J |
| Surge protection | Y |
| Type | Three-phase |
| USB ports quantity | 1 |
| Weight | 111820 g |
| Width | 432 mm |
| Product colour | Black |
| Sustainability certificates | RoHS |
Specific References
- EAN13
- 0731304334507

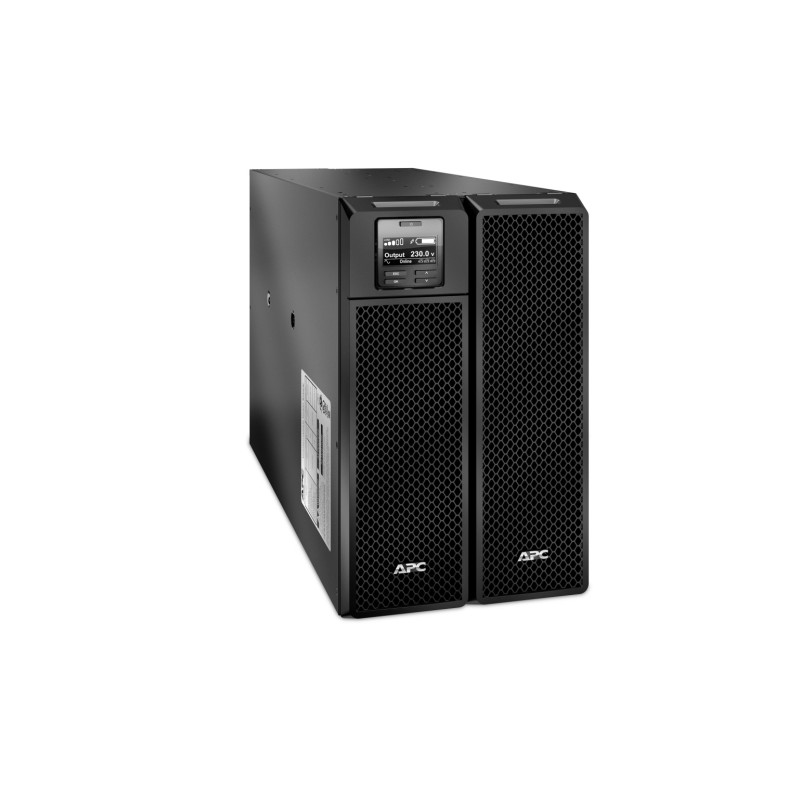

APC SRT10RMXLIX806
Smart-UPS SRT 10000VA RM 230V, Custom PDU
£8,516.50
Tax excluded
Smart-UPS SRT 10000VA RM 230V, Custom PDU
