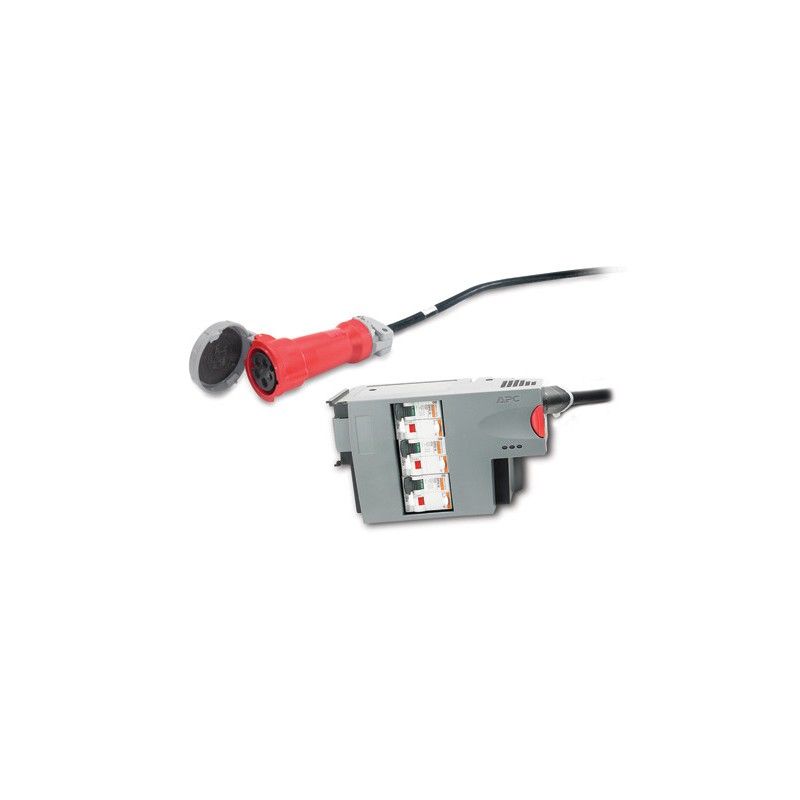

APC 3 Pole 5 Wire RCD 16A 30mA IEC309 power distribution unit (PDU)
  • APC 3 Pole 5 Wire RCD 16A 30mA IEC309 power distribution unit (PDU)
  • APC 3 Pole 5 Wire RCD 16A 30mA IEC309 power distribution unit (PDU)
APC Modular Power Accessories , Input: 400V 3PH , Input Connections: IEC 309 16A 3P+N+PE , Output: 400V 3PH , Output Connections: IEC 309 16A. Includes: Installation guide. - Built-in Web/SNMP management Full-featured management via a Web browser as well as comprehensive management from a Network Management System. - Low Cost Power Distribution Provides a number of outlets to bring power to rack equipment at an affordable price. - Smallest footprint Minimizes your real estate expenses - System mobility PDU equipment can easily be relocated to accommodate a changing data center environment. - Current Monitoring Monitors the aggregate current draw per power distribution unit. - Local and web-based monitoring Status available to customers both in the data center and remotely - Multiple distribution options Superior design flexibility enables a wide range of customer requirements to be addressed. - Safety Enhance user safety with isolation at all touch points and with positive locking mechanisms that reduce the risk of accidental disconnection Manageability - Power monitoring Measure and monitor power consumption and usage with branch circuit monitoring and output metering, which are included at no extra cost - Quick status information LEDs Access status information about the performance of the Power Distribution Module Convenience - Toolless installation of breakers Install factory-assembled Power Distribution Modules in under ten minutes - no tools are required - Global product offering Standardization of the power distribution system across all corporate locations is easy - a variety of 1-phase and 3-phase Power Distribution Modules address the unique power requirements of data centers around the world
AC input frequency 50 Hz
Cable length 10.8 m
Certification CE,VDE
Input connection type IEC 309 16A 3P+N+PE
Maximum input current per phase 16 A
Maximum total current draw per phase 16 A
Nominal input voltage 400 V
Nominal output voltage 400 V
Output connections 1 x IEC 309 16A
Package dimensions (WxDxH) 432 x 406 x 254 mm
Package weight 5500 g
Weight 4600 g

Specific References

EAN13
0731304265597

APC 3 Pole 5 Wire RCD 16A 30mA IEC309

3 Pole 5 Wire RCD 16A 30mA IEC309 1080CM
Out of Stock
£845.44
£704.53 Ex. VAT
Reference: PDM316IEC-30R-1040
Quantity
