Kingston Technology A1000
  • Kingston Technology A1000
  • Kingston Technology A1000
  • Kingston Technology A1000
  • Kingston Technology A1000
  • Kingston Technology A1000
  • Kingston Technology A1000
  • Kingston Technology A1000
Exceptional responsiveness and ultra-low latency.

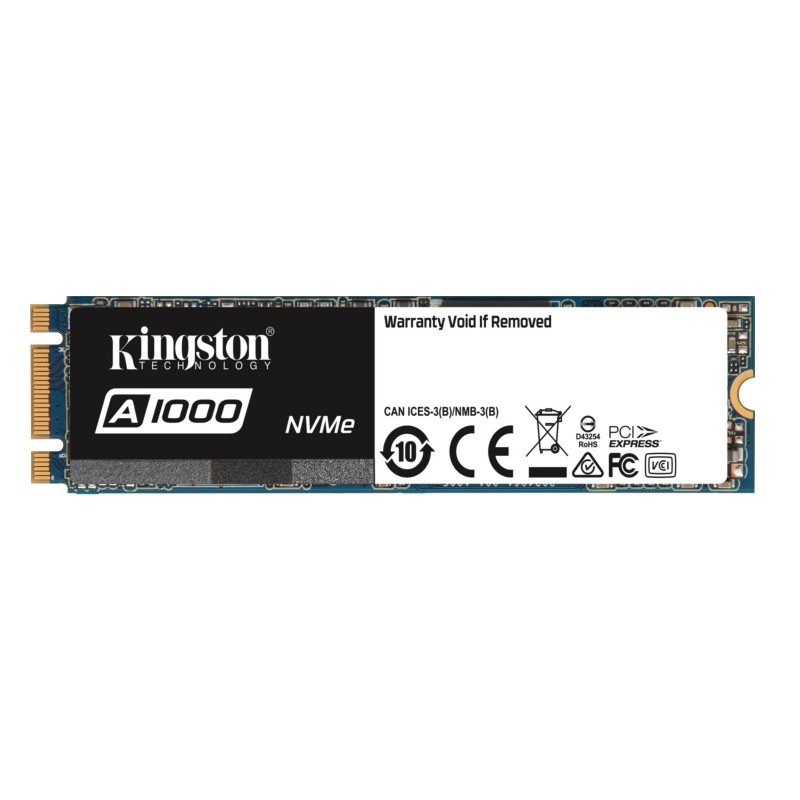

Kingston’s A1000 solid-state drive is an entry-level PCIe NVMe™ solution with a single-sided M.2 22x80mm design. This form factor is ideal for thinner notebooks and systems with limited space. Using a PCIe NVMe™ Gen 3.0 x2 interface, 4-channel Phison E8 controller and 3D NAND Flash, this drive offers read and write speeds of up to 1,500MB/s and 1,000MB/s*. It is 2X faster than a SATA-based SSD and 20X faster than a traditional hard drive, offering exceptional responsiveness, ultra-low latency and throughput.



More reliable and durable than a hard drive, A1000 is built with NAND Flash semiconductor memory. There are no moving parts, making it far less likely to fail than a mechanical hard drive. It is also cooler and quieter, and its shock and vibration resistance makes it ideal for notebooks and other mobile computing devices.



A1000 is available in multiple capacities from 240GB–960GB** to give you all the space you need for applications, videos, photos and other important documents. You can also replace your hard drive or a smaller SSD with a drive with enough storage capacity for all your files.



* Based on “out-of-box performance” using a SATA Rev 3.0 / PCIe 3.0 motherboard. Speed may vary due to host hardware, software and usage. IOMETER random 4K read/write is based on an 8GB partition.

** Some of the listed capacity on a Flash storage device is used for formatting and other functions and is thus not available for data storage. As such, the actual available capacity for data storage is less than what is listed on the products. For more information, go to Kingston’s Flash Guide at kingston.com/flashguide.



- 20X faster than a 7200RPM hard drive*

- M.2 2280 form factor

- Single-sided design

- Multiple capacities up to 960GB**
CertificationCE, FCC, VCCI
Component forPC/notebook
Controller typePhison E8
Depth80 mm
Height3.5 mm
Mean time between failures (MTBF)1000000 h
Memory type3D TLC
Non-operating vibration20 g
Operating temperature (T-T)0 - 70 °C
Operating vibration2.17 G
PCI Express interface data lanesX2
Power consumption (idle)0.011748 W
Power consumption (read)0.458 W
Power consumption (write)0.908 W
Random read (4KB)120000 IOPS
Random write (4KB)100000 IOPS
Read speed1500 MB/s
RoHS complianceY
Solid-state drive capacity960 GB
Storage temperature (T-T)-40 - 85 °C
TBW rating600
Weight7.6 g
Width22 mm
Write speed1000 MB/s
Solid-state drive interfacePCI Express
SSD form factorM.2
Power consumption (average)0.075623 W
NVM Express (NVMe) supportedY
NVM Express (NVMe) version3.0
Product colourBlack,Blue,White

SA1000M8960G.pdf

Kingston Technology A1000 Data Sheet

Download (1.83M)

SA1000M8960G.pdf

Kingston Technology A1000 Data Sheet

Download (1.83M)

Kingston Technology A1000

960GB, 1500 / 1000 MB/s, PCIe NVMe Gen 3.0 x 2 lanes, 3D TLC, M.2 2280

SA1000M8/960G

Out of Stock
