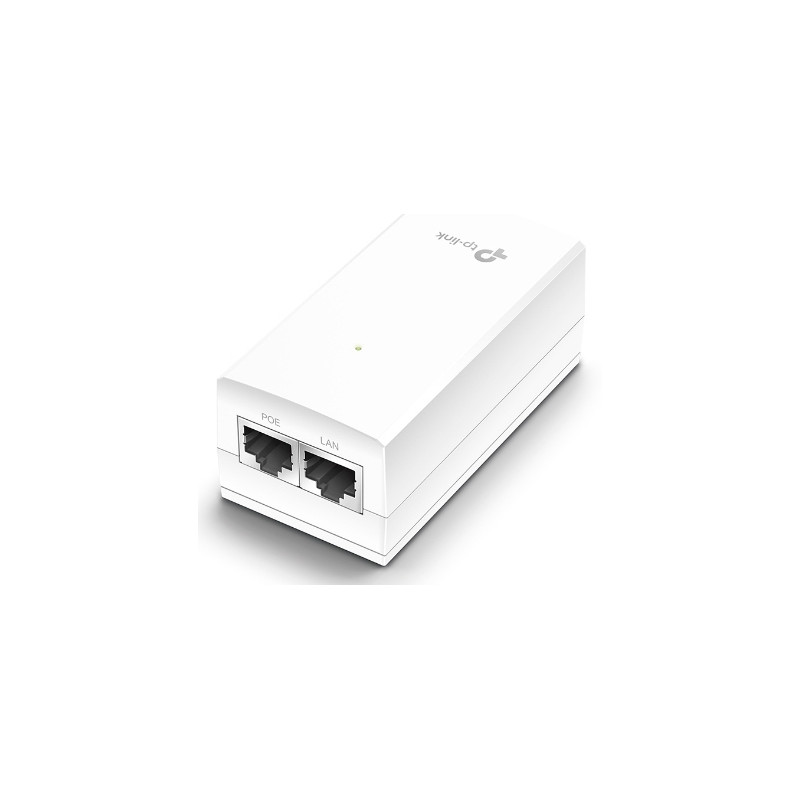

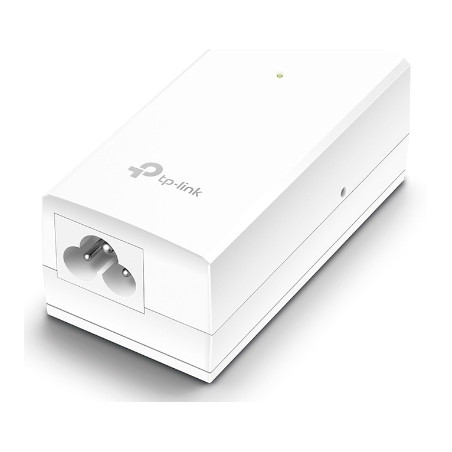

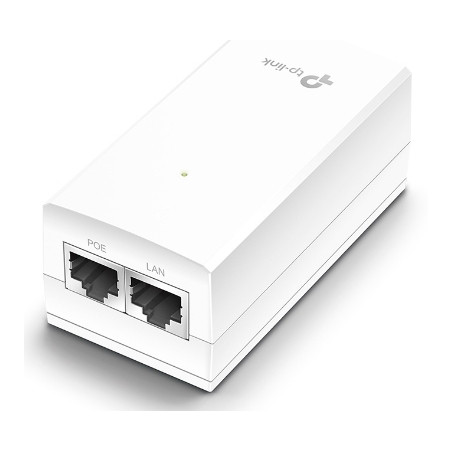

P-Link 24V Passive PoE Adapter
  • P-Link 24V Passive PoE Adapter
  • P-Link 24V Passive PoE Adapter
  • P-Link 24V Passive PoE Adapter
Reasons to Buy
  • Gigabit Ethernet ports
  • 24VDC passive PoE supported
  • Auto-adjusted power depends on requirements
  • Convenient wall-mounting design
  • Plug-and-Play, no configuration required


Technical Headlines
  • 10,100,1000 Mbit/s Cat3, Cat4, Cat5, Cat5e, Cat6 100 m
  • Power over Ethernet (PoE)
  • Auto MDI/MDI-X
  • White


Passive PoE Adapter
Powers TP-Link products that
support 24V passive PoE
TL-POE2412G

Power Your Devices
Use the passive PoE adapter TL-POE2412G to simultaneously supply power and transmit data to a passive PoE device.

Convenient Wall-Mounting Design
TL-POE2412G offers a convenient wall-mounting brackets to be easily installed on a wall.

Compatible Devices
TL-POE2412G is the recommended power supply for compatible devices.
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Cable types supported Cat3, Cat4, Cat5, Cat5e, Cat6
Cabling technology 10/100/1000
Certification FCC, CE, RoHS
Depth 43.9 mm
Dimensions (WxDxH) 43.9 x 85.8 x 35 mm
Ethernet interface type Gigabit Ethernet
Ethernet LAN (RJ-45) ports 2
Ethernet LAN data rates 10,100,1000 Mbit/s
Height 35 mm
LED indicators Power
Maximum operating distance 100 m
Number of products included 1 pc(s)
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
32 - 104 °F
Output power 12 W
Package depth 180 mm
Package height 60 mm
Package weight 290 g
Package width 60 mm
Plug and Play Yes
Power cord included Yes
Power over Ethernet (PoE) Yes
Source data-sheet Icecat.biz
Storage relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -40 - 70 °C
Wall mountable Yes
Wall mounting kit Yes
Width 85.8 mm
Power over Ethernet (PoE) voltage 24 V
Product colour White
Harmonized System (HS) code 85044095
Compliance certificates RoHS

Specific References

EAN13
1210002611114

POE2412G.pdf

TP-Link 24V Passive PoE Adapter Data Sheet

TP-Link 24V Passive PoE Adapter

TP-Link 24V Passive PoE Adapter, Gigabit Ethernet, 10,100,1000 Mbit/s, 10/100/1000, Cat3, Cat4, Cat5, Cat5e, Cat6, White, 100 m
Out of Stock
£14.48
£12.06 Ex. VAT
Reference: POE2412G
Quantity
