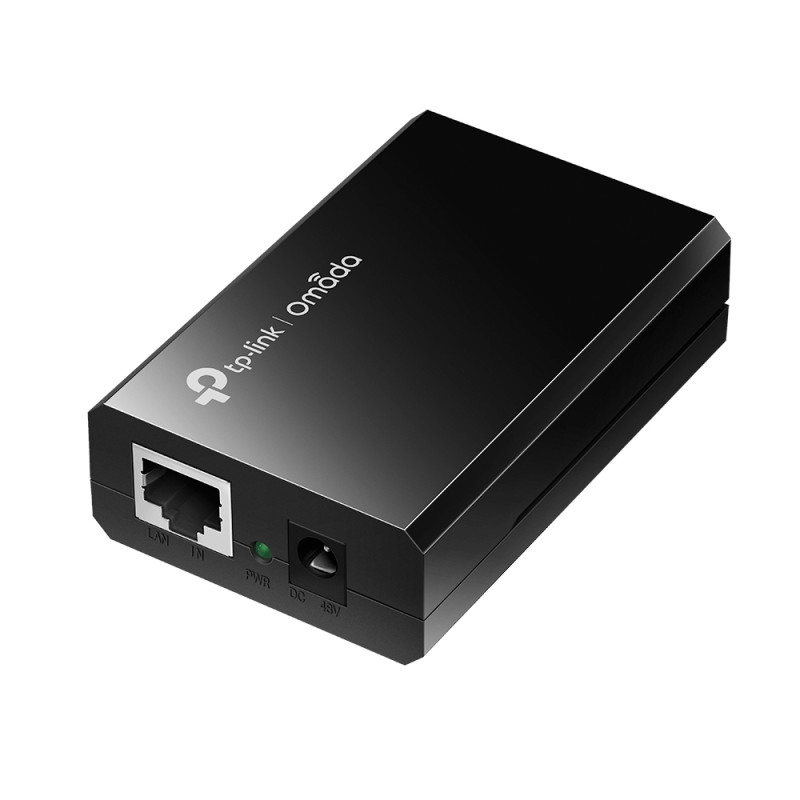

P-Link IEEE 802.3af PoE Injector
  • P-Link IEEE 802.3af PoE Injector
  • P-Link IEEE 802.3af PoE Injector
  • P-Link IEEE 802.3af PoE Injector
  • P-Link IEEE 802.3af PoE Injector
  • P-Link IEEE 802.3af PoE Injector
  • P-Link IEEE 802.3af PoE Injector
  • P-Link IEEE 802.3af PoE Injector
Reasons to Buy
  • IEEE 802.3af compliant

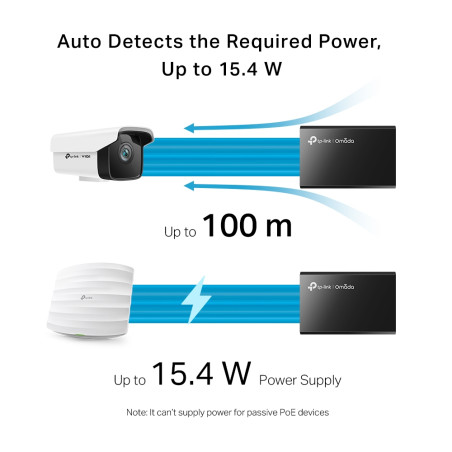

  • Auto-determine the necessary power requirements
  • Gigabit speed support
  • Plug-and-Play, no configuration required


Technical Headlines
  • 10,100,1000 Mbit/s Cat3, Cat4, Cat5, Cat5e, Cat6 100 m
  • Power over Ethernet (PoE) IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
  • Black

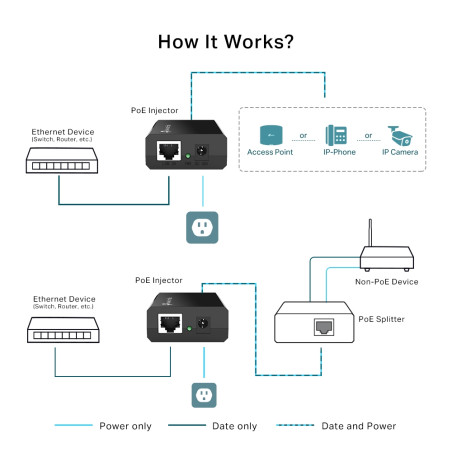

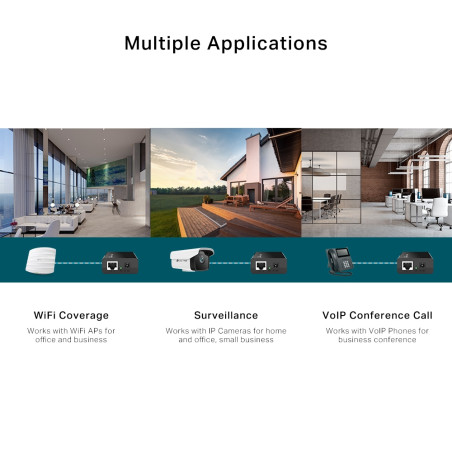

The PoE Injector POE150S (TL-POE150S) fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
AC adapter included Yes
Auto-negotiation Yes
Auto-sensing Yes
Cable types supported Cat3, Cat4, Cat5, Cat5e, Cat6
Cabling technology 10/100/1000
DC-in jack Yes
Depth 54 mm
Ethernet interface type Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates 10,100,1000 Mbit/s
Height 24 mm
Input voltage 48 V
LED indicators Yes
Maximum operating distance 100 m
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Number of products included 1 pc(s)
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Package depth 198 mm
Package height 65 mm
Package weight 350 g
Package width 65 mm
Plug and Play Yes
Power over Ethernet (PoE) Yes
Quick installation guide Yes
RJ-45 input ports 1
RJ-45 output ports 1
Source data-sheet Icecat.biz
Storage relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -40 - 70 °C
Width 80.8 mm
Product colour Black
Compliance certificates CE, Federal Communications Commission (FCC), RoHS

Specific References

EAN13
0840460605298

POE150S.pdf

TP-Link IEEE 802.3af PoE Injector Data Sheet

TP-Link IEEE 802.3af PoE Injector

TP-Link Omada IEEE 802.3af PoE Injector, Fast Ethernet, Gigabit Ethernet, 10,100,1000 Mbit/s, 10/100/1000, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, Cat3, Cat4, Cat5, Cat5e, Cat6, Black
