Antenna | Yes |
Cable length | 1.2 m |
Connectivity technology | Wireless |
Depth | 17.7 mm |
Height | 107 mm |
Host interface | USB |
Interface | WLAN |
Internal | No |
LED indicators | Status |
Maximum data transfer rate | 2882 Mbit/s |
Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
Operating relative humidity (H-H) | 10 - 90% |
Operating temperature (T-T) | 0 - 40 °C |

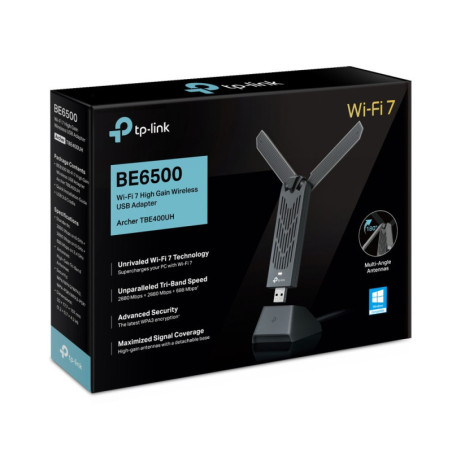

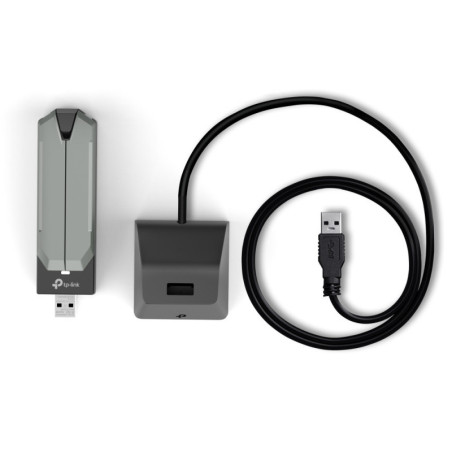

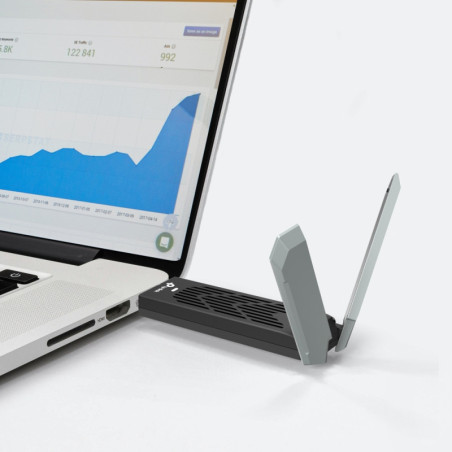

Packaging content | • BE6500 Wi-Fi 7 High Gain Wireless USB Adapter Archer TBE400UH • Quick Installation Guide • USB 3.0 Cradle |
Quick installation guide | Yes |
Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
Source data-sheet | Icecat.biz |
Storage relative humidity (H-H) | 5 - 90% |
USB version | 3.2 Gen 1 (3.1 Gen 1) |
Wi-Fi | Yes |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
Width | 300 mm |
Windows operating systems supported | Windows 10, Windows 11 |
WLAN data transfer rates supported | 54,400,574,1732,2402 Mbit/s |
Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
Product colour | Grey |
Transmitting power (FCC) | 6 GHz: 13 dBm; 5 GHz: 15 dBm; 2.4 GHz: 15 dBm |
Antenna design | External |
USB connector form factor | Straight |
Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
MU-MIMO | Yes |
