Reasons to Buy
Technical Headlines
Operating System
Supports operating systems include Windows 10/8.1/8/7/Vista/XP
Low-Profile Bracket
In addition to standard bracket, low-profile bracket is also provided for mini tower computer case
Wake On LAN
Remotely power on/off your computer with WOL, good for centralized management
- 10/100/1000Mbps PCIe Adapter
- 32-bit PCIe interface, saving the finite chassis space
- Wake-on-LAN, convenient to manage over LAN
Technical Headlines
- Wired
- PCI Express Ethernet
- Gigabit Ethernet 2000 Mbit/s 10/100/1000BaseT(X)
- Internal Component for: PC
Operating System
Supports operating systems include Windows 10/8.1/8/7/Vista/XP
Low-Profile Bracket
In addition to standard bracket, low-profile bracket is also provided for mini tower computer case
Wake On LAN
Remotely power on/off your computer with WOL, good for centralized management
| Auto MDIX IEEE | Yes |
| Auto-negotiation | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Certification | FCC, BSMI, VCCI |
| Component for | PC |
| Connectivity technology | Wired |
| Depth | 120.8 mm |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Full duplex | Yes |
| Height | 21.5 mm |
| Host interface | PCI Express |
| Interface | Ethernet |
| Internal | Yes |
| LED indicators | Status |
| Maximum data transfer rate | 2000 Mbit/s |
| Maximum operating distance | 100 m |
| Mounting brackets included | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Package depth | 135 mm |
| Package height | 30 mm |
| Package weight | 100 g |
| Package width | 160 mm |
| Quality of Service (QoS) support | Yes |
| Quick installation guide | Yes |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| VLAN tagging | Yes |
| Wake-on-LAN ready | Yes |
| Width | 78.5 mm |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Resource CD | Yes |
| Product colour | Green, Grey |
| Sustainability compliance | Yes |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), RoHS |
Specific References
- EAN13
- 6935364001049

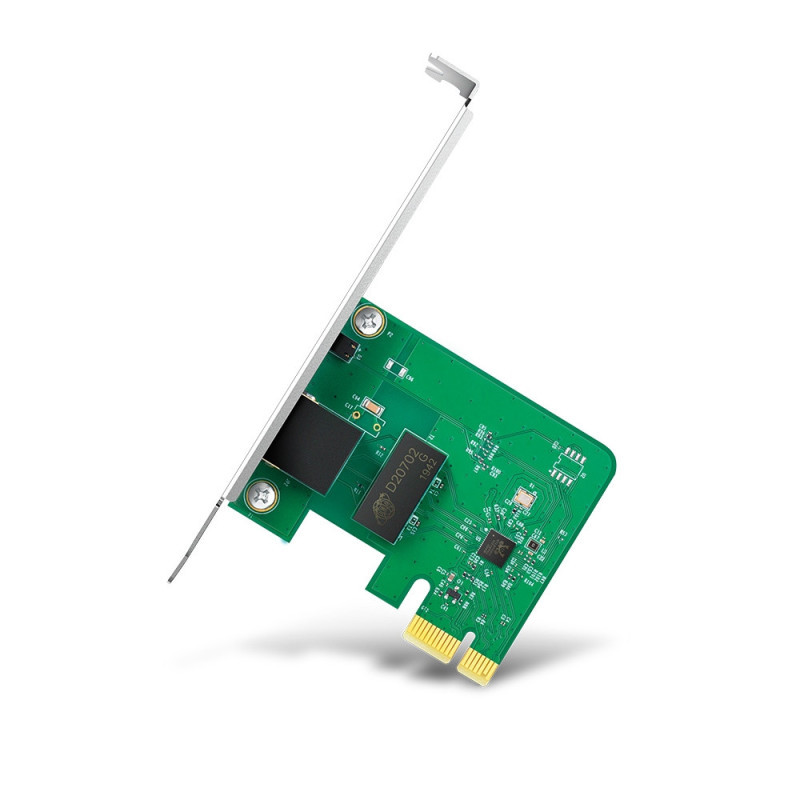

TP-Link TG-3468
TP-Link TG-3468, Internal, Wired, PCI Express, Ethernet, 2000 Mbit/s, Green, Grey
£14.69
£12.24 Ex. VAT
TP-Link TG-3468, Internal, Wired, PCI Express, Ethernet, 2000 Mbit/s, Green, Grey
