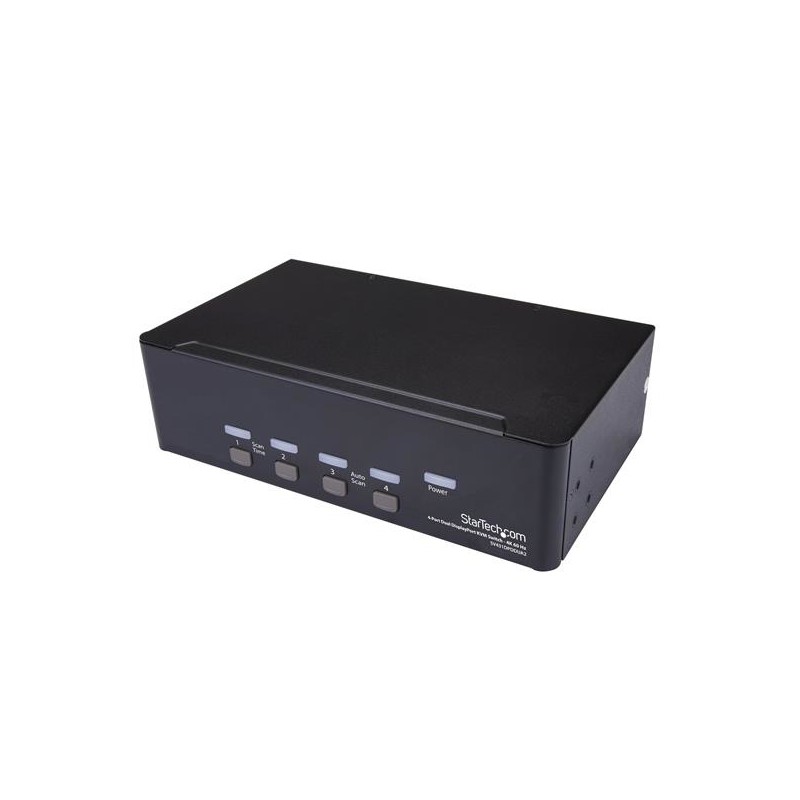

This 4-port Dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and MAC computers

This 4-port dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and Mac computers. It features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head DP systems.

Maximize productivity with dual video

With two DP video inputs and control of four different computers, this Ultra HD KVM switch helps maximize productivity by giving you the freedom to multitask. Each of the DP ports supports resolutions up to 4K 60Hz, for maximum screen viewing space.

Astonishing picture quality

The dual DisplayPort KVM switch supports resolutions up to 4K at 60Hz, and can drive two large DP displays with ease. An ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.

Convenient multimedia and peripheral sharing

The KVM switch features full multimedia control with separate 3.5 mm microphone and speaker ports and two USB ports separate from the HID keyboard and mouse. The independent audio support lets you share independent analog audio from each of your connected computers, while the 2-port USB hub enables you to share USB peripherals between each connected computer.

The SV431DPDDUA2 is backed by a 2-year StarTech.com warranty.

The StarTech.com Advantage

- Maximum productivity with dual-display, multi-computer access
- Full multimedia control with separate 3.5 mm microphone and speaker support
- Astonishing picture quality with support for Ultra HD 4K resolutions at 60Hz
AC input voltage100 - 240 V
Audio connectionsY
Audio supportY
Built-in displayN
CertificationCE, FCC, TAA
Compatible power plug typesAU,EU,JP,UK,US
Console ports3.5mm headphone,3.5mm mic,DisplayPort,USB A
Console USB ports quantity4
Daisy chainN
Data transfer rate (max)0.5 Gbit/s
DC-in jackY
Depth127 mm
DisplayPorts quantity10
External power adapterY
HD type4K Ultra HD
Height63.5 mm
Input current0.6 A
IP controlN
Keyboard port typeUSB
LED indicatorsPower
MaterialSteel
Maximum resolution3840 x 2160 pixels
Mouse port typeUSB
Number of computers controlled4
Operating relative humidity (H-H)0 - 80 %
Operating temperature (T-T)0 - 40 °C
Output current1.5 A
Output voltage12 V
Package depth297 mm
Package height87 mm
Package weight1800 g
Package width243 mm
Plug typeType M
Power consumption (typical)18 W
Power sourceAC
Quick installation guideY
Rack mountingYes
RoHS complianceY
Rubber feetY
Scan interval3,8,15,30 s
Storage temperature (T-T)-10 - 60 °C
USB connector typeUSB Type-A
Video port typeDisplayPort
Weight1200 g
Width215.9 mm
USB hubY
Product colourBlack

SV431DPDDUA2.pdf

StarTech.com 4-Port Dual DisplayPort KVM Switch - 4K 60Hz Data Sheet

Download (188.73k)
