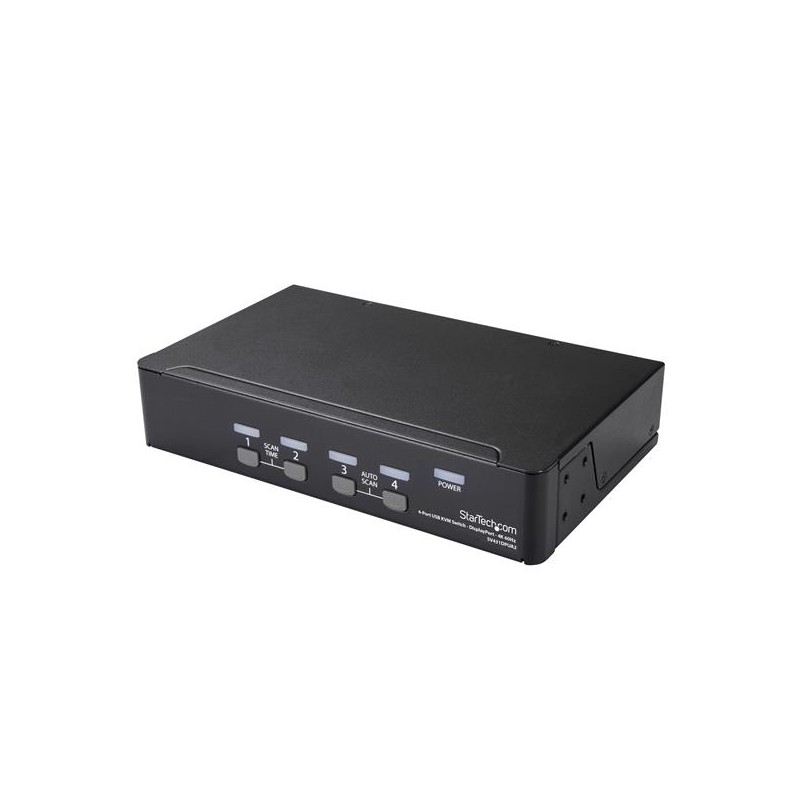

DisplayPort 1.2 KVM | TAA Compliant | USB 2.0 Hub | 7.1 HD Digital Audio
This 4-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to four connected computers.
4K60 Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for 7.1 HD digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 2.0 hub shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected, eliminating the cost of duplicate devices such as printers and scanners.
PC and Mac Compatible
While supporting PCs, this DP KVM switch is also compatible with Mac computers using a Mini DisplayPort adapter, including laptops, notebooks, and tablets.
Simple to Operate
The front-panel pushbuttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quick while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM switch is backed by a 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- TAA compliant for government GSA schedule purchases
- Increases productivity with ports to connect up to 4 HD multimedia computers
- Achieves high picture quality with 4K resolutions @ 60Hz
This 4-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to four connected computers.
4K60 Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for 7.1 HD digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 2.0 hub shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected, eliminating the cost of duplicate devices such as printers and scanners.
PC and Mac Compatible
While supporting PCs, this DP KVM switch is also compatible with Mac computers using a Mini DisplayPort adapter, including laptops, notebooks, and tablets.
Simple to Operate
The front-panel pushbuttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quick while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM switch is backed by a 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- TAA compliant for government GSA schedule purchases
- Increases productivity with ports to connect up to 4 HD multimedia computers
- Achieves high picture quality with 4K resolutions @ 60Hz
| AC adapter included | Y |
| AC input voltage | 100 - 240 V |
| Audio connections | Y |
| Audio support | Y |
| Certification | CE, FCC |
| Compatible power plug types | AU,EU,JP,UK,US |
| Console ports | 3.5mm headphone,3.5mm mic,DisplayPort,USB A |
| Daisy chain | N |
| Data transfer rate (max) | 0.48 Gbit/s |
| DC-in jack | Y |
| Depth | 220 mm |
| DisplayPorts quantity | 5 |
| Ethernet LAN | N |
| External power adapter | Y |
| HD type | 4K Ultra HD |
| Headphone outputs | 5 |
| Height | 45 mm |
| Input current | 0.6 A |
| IP control | N |
| Keyboard port type | USB |
| LED indicators | Y |
| Material | Steel |
| Maximum resolution | 3840 x 2160 pixels |
| Mouse port type | USB |
| Number of computers controlled | 4 |
| Number of microphone inputs | 5 |
| Number of users | 1 user(s) |
| On Screen Display (OSD) | Y |
| Operating relative humidity (H-H) | 0 - 40 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Output current | 1.5 A |
| Output voltage | 12 V |
| Package depth | 409 mm |
| Package height | 87 mm |
| Package weight | 1605 g |
| Package width | 212 mm |
| Plug and Play | Y |
| Plug type | Type M |
| Power consumption (typical) | 18 W |
| Quick installation guide | Y |
| Rack capacity | 1U |
| Rack mounting | Yes |
| RoHS compliance | Y |
| Rubber feet | Y |
| Scan interval | 3,8,15,30 s |
| Storage temperature (T-T) | -10 - 60 °C |
| Video port type | DisplayPort |
| Weight | 1042 g |
| Width | 131 mm |
| Hot keys | Y |
| Product colour | Black |
SV431DPUA2.pdf
StarTech.com 4 Port DisplayPort KVM Switch with 4K 60Hz Resolution Data Sheet
