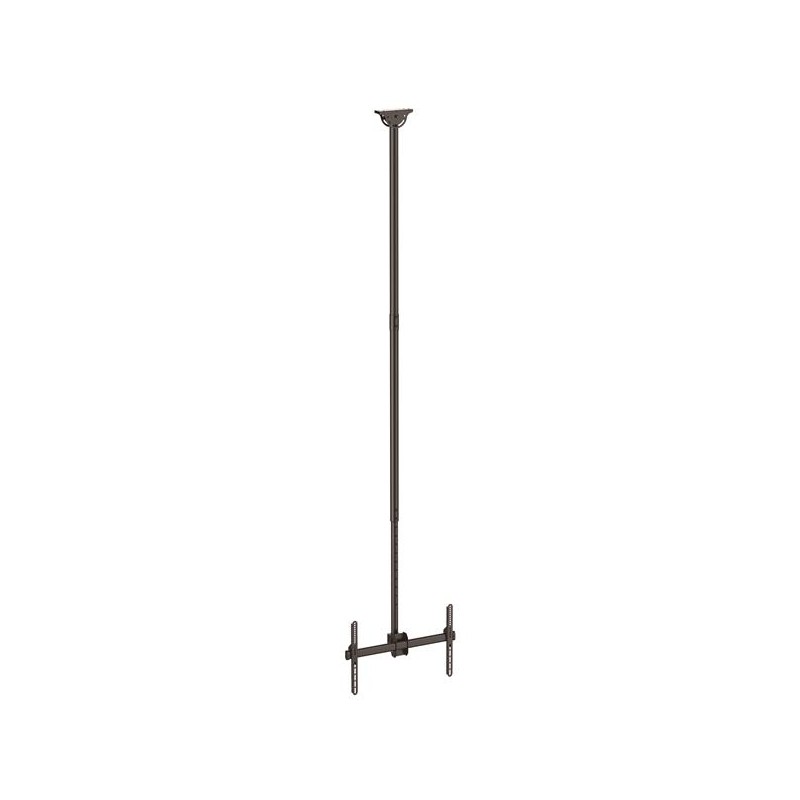

Securely mount your flat-panel TV to a ceiling or overhead structure, and customize your viewing angle with easy position adjustments
Now, you can suspend your flat-screen television in an area with a high ceiling, for optimal viewing. This flat-screen TV ceiling mount supports VESA mount compatible TVs from 32" to 70” in size. It features a long pole that extends from 8.2 to 9.84 ft. (2.5 to 3 m), making it easy to adjust the distance from the ceiling. Its full-motion design lets you change your screen position and angle.
Mount your TV in a prominent place
The ceiling TV mount lets you mount your flat-panel LCD, LED or plasma TV in a prominent area. It’s ideal for use in lobbies, entrances or other areas with high ceilings.
The heavy-duty steel TV ceiling mount is compatible with a wide selection of TVs, able to securely support a 32" to 70” display, with a weight capacity of up to 110 lb. (50 kg). To keep the cables concealed and organized, you simply run them through the cable management channel inside of the pole, exiting near the top.
Adjust the distance from the ceiling
With an adjustable length, the telescopic-style pole makes it easy to mount your display at the desired distance from the ceiling and works well with a range of ceiling heights. The robust steel pole can extend from 8.2 to 9.84 ft. (2.5 to 3 m), with a total lift (height extension) of 19.6" (.5 m).
Swivel the TV mount to suit your ceiling type
The flat-screen TV ceiling mount is designed to accommodate a wide variety of ceiling types. The ceiling mount swivels, so you can adjust the mount to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to 60°), and pitched or horizontal (flat) ceilings.
Adjust your display for the ideal viewing angle
You can adjust your flat-screen TV to create a comfortable viewing angle, by tilting it (up to -25°) down towards your audience for optimum visibility. The full-motion mount lets you swivel your display around the pole + 180° / - 180°, without using tools, which makes it easy to set up for viewing from any direction you choose.
Easy and secure setup
The hook-and-mount design of the TV ceiling mount makes setup fast and easy. You simply attach the vertical brackets, with built-in hooks, to the back of your TV. Once the brackets are attached, you can hang your TV securely onto the ceiling mount. The preset leveling adjustments ensure ideal positioning after hanging.
The FPCEILPTBLP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Save space by suspending your 32” to 70” flat-screen TV from the ceiling
- Long pole with min-max pole length extension of 8.2 to 9.8 ft. (2.5 to 3 m) for versatile applications
- Ceiling TV mount swivels + 60° / - 60° to adjust to sloped or level ceilings
Colour of product |
Black |
Cord management |
Y |
Depth |
680 mm |
Height |
3218 mm |
Height adjustment |
Y |
Height adjustment range |
2500 - 3000 mm |
Manual |
Y |
Material |
Steel |
Maximum screen size compatibility |
70 " |
Minimum screen size compatibility |
32 " |
Mounting brackets included |
Y |
Number of displays supported |
2 |
Package dimensions (WxDxH) |
320 x 1270 x 115 mm |
Package weight |
10800 g |
Screws included |
Y |
Suitable for |
TV |
Swivel angle range |
-180 - 180 ° |
VESA mounting interfaces |
200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 mm |
Weight |
10000 g |
Width |
435 mm |
Wrench included |
Y |
Number of screws |
28 |
Maximum weight capacity |
50 kg |
Minimum VESA mount |
200 x 200 mm |
Maximum VESA mount |
600 x 400 mm |
Tilt angle range |
-25 - 0 ° |
Anchors included |
Y |
Number of anchors included |
4 |
Washers included |
Y |
Number of washers included |
4 |
Spacer included |
Y |
Number of spacers included |
16 |
Extension pole included |
Y |
Screw nuts included |
Y |
Number of screw nuts |
4 |
Number of wrenches included |
1 |
Hex key included |
Y |
Number of hex keys inlcluded |
1 |
Specific References
- EAN13
- 0065030870412
Download
StarTech.com High Ceiling TV Mount - 8.2' to 9.8' Long Pole - Full Motion Data Sheet
Download (135.38KB)
