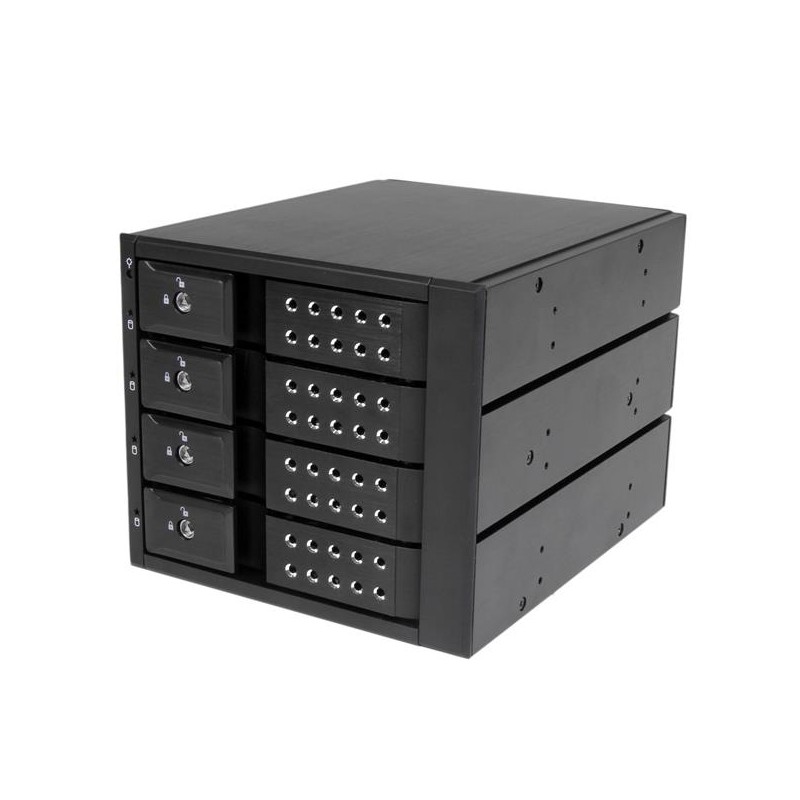

The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.
The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Delivers peak drive performance, with support for full SATA III/SAS II data transfer speeds up to 6Gbps
- Flexible drive options with support for both SATA and SAS drive interfaces
- Helps maintain ideal drive operating temperatures by maximizing heat dissipation and expelling built-up heat, with a vented aluminum housing and built-in fan
| Built-in display |
No |
| Cables included |
SATA |
| Certification |
CE, FCC |
| Colour of product |
Black |
| Data transfer rate |
6 Gbit/s |
| Depth |
197 mm |
| Fan diameter |
70 mm |
| Height |
990mm |
| Hot-swap |
Yes |
| Key lock |
Yes |
| LED indicators |
Activity,Power |
| Manual |
Yes |
| Material |
Aluminium |
| Maximum capacity |
6 TB |
| Number of fans |
9 fan(s) |
| Number of storage drives supported |
4 |
| Operating relative humidity (H-H) |
5 - 85 % |
| Operating temperature (T-T) |
8 - 35 °C |
| Package depth |
254 mm |
| Package height |
180 mm |
| Package weight |
1600 g |
| Package width |
165 mm |
| Product type |
HDD enclosure |
| RoHS compliance |
Yes |
| Screws included |
Yes |
| Source data-sheet |
Icecat.biz |
| Storage drive size |
3.5 " |
| Storage temperature (T-T) |
8 - 85 °C |
| Supported storage drive interfaces |
SAS,SAS-2,Serial ATA,Serial ATA II,Serial ATA III |
| USB connectivity |
No |
| Weight |
1300 g |
| Width |
145 mm |
| External SATA ports quantity |
4 |
| Number of keys included |
2 pc(s) |
Specific References
- EAN13
- 0065030859547
StarTech.com 4 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD Data Sheet
