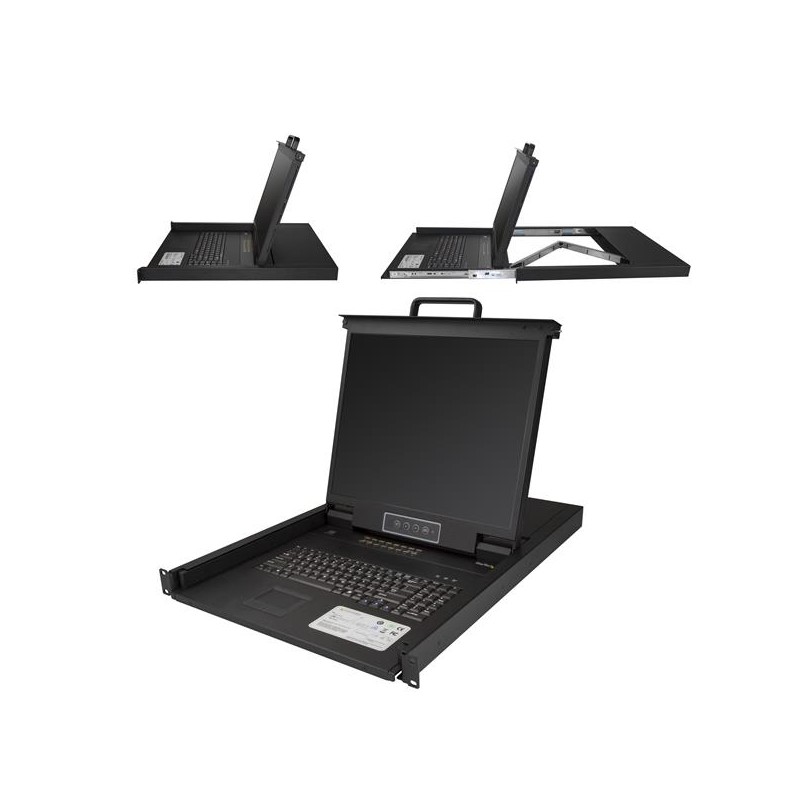

This 1U 16-port KVM console provides complete keyboard, monitor and mouse control for 16 computers. The rack-mount console installs into 1U of rack space, offering a space-efficient solution for complete console control.
Maximize your IT budget, minimize your hassle
This 16-port KVM switch provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in touchpad, keyboard for intuitive control and an LCD display that supports resolutions up to 1280x1024.
Maximize your screen space
This versatile rack-mount LCD console has a 19 in. screen. The increased screen space enables you to run multiple applications on the same screen, maximizing your productivity.
Clutter-free monitoring
The console slides out from 1U of rack space, enabling you to easily monitor and control 16 servers, and even more if connecting through a KVM switch. The rack-mount VGA console features a handle for easy sliding in and out of the server rack, keeping your area organized and clutter-free.
Hassle-free system integration
The rackmount LCD features a 16-port KVM module, allowing you to connect it directly to 16 servers. You can also connect to additional servers by connecting to KVM switches in a cascaded (daisy-chained) configuration. The KVM module offers the flexibility you need to easily integrate the console into your existing server infrastructure.
The RKCONS1916K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Audio support |
N |
| Built-in touchpad |
Y |
| Cables included |
KVM |
| Certification |
PSE, FCC |
| Contrast ratio (typical) |
1000:1 |
| Daisy chain |
Y |
| Depth |
643 mm |
| Display brightness |
250 cd/m² |
| Display diagonal |
19 " |
| Display number of colours |
16.78 million colours |
| Display resolution |
1280 x 1024 pixels |
| Display type |
LCD |
| Height |
43 mm |
| Keyboard port type |
USB, PS/2 |
| Mean time between failures (MTBF) |
50000 h |
| Mounting brackets included |
Y |
| Mounting depth (max) |
890 mm |
| Mounting depth (min) |
605 mm |
| Mouse port type |
USB, PS/2 |
| Number of computers controlled |
16 |
| Operating relative humidity (H-H) |
10 - 80 % |
| Operating temperature (T-T) |
0 - 40 °C |
| Package depth |
765 mm |
| Package height |
190 mm |
| Package weight |
21000 g |
| Package width |
615 mm |
| Pixel pitch |
0.264 x 0.264 mm |
| Quick installation guide |
Y |
| RoHS compliance |
Y |
| Screws included |
Y |
| Source data-sheet |
Icecat.biz |
| Storage temperature (T-T) |
-20 - 60 °C |
| Video port type |
VGA |
| Weight |
13500 g |
| Width |
483 mm |
| USB 2.0 Type-A ports quantity |
2 |
| Product colour |
Black |
Specific References
- EAN13
- 0065030872539
StarTech.com RKCONS1916K Data Sheet
