StarTech.com RKCONS1901
  • StarTech.com RKCONS1901
  • StarTech.com RKCONS1901
  • StarTech.com RKCONS1901

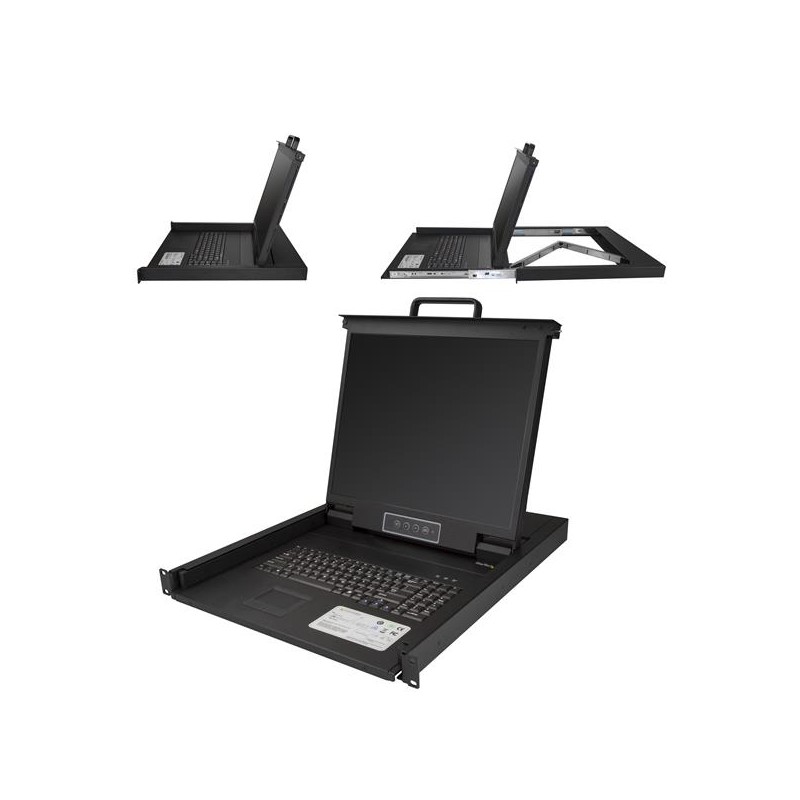

This rack-mount KVM console provides complete keyboard, monitor and mouse control for a single server or multiple servers, connected through a separate KVM switch (sold separately). The 19 in. console installs into 1U of rack space, offering a space-efficient solution for complete console control.



Maximize your IT budget, minimize your hassle

This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard and a touchpad for intuitive control, as well as an LCD display that supports resolutions up to 1280x1024.



Maximize your screen space

This versatile LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.



Clutter-free monitoring

The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rack-mount VGA console features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.



Hassle-free system integration

The rack console features a single-port KVM module, which enables you to connect it directly to a server. The module offers the flexibility you need to easily integrate it into your existing server infrastructure.



The RKCONS1901 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Aspect ratio4:3
Audio supportN
Built-in touchpadY
Cables includedAC,KVM
CertificationCE, FCC
Contrast ratio (typical)1000:1
Daisy chainY
Depth533 mm
Display brightness250 cd/m²
Display diagonal19 "
Display number of colours16.78 million colours
Display resolution1280 x 1024 pixels
Display typeLCD
Height430 mm
IP controlN
Key lockN
LED indicatorsY
MaterialSteel
Mean time between failures (MTBF)50000 h
Mounting brackets includedY
Mounting depth (max)780 mm
Mounting depth (min)500 mm
On Screen Display (OSD)Y
Operating relative humidity (H-H)10 - 80 %
Operating temperature (T-T)0 - 40 °C
Package depth765 mm
Package height190 mm
Package weight16000 g
Package width615 mm
Pixel pitch0.264 x 0.264 mm
Power consumption (typical)17 W
Quick installation guideY
Rack capacity1U
RoHS complianceY
Screws includedY
Storage temperature (T-T)-20 - 60 °C
Video port typeVGA
Viewing angle, horizontal176 °
Viewing angle, vertical170 °
Weight12200 g
Width483 mm
Hot keysY
Product colourBlack

RKCONS1901.pdf

StarTech.com RKCONS1901 Data Sheet

Download (169.89k)
