Convert and extend a Gigabit Ethernet connection up to 550 m / 1804 ft over Multimode LC fiber

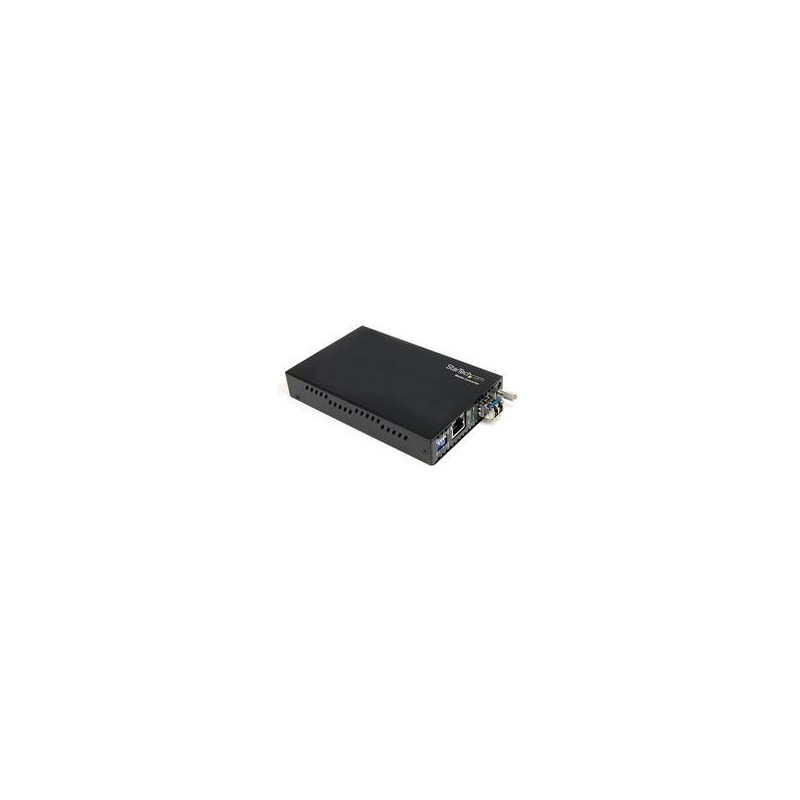

The ET91000LC2 1000 Mbps Gigabit Multimode Fiber Media Converter (LC, 550m) lets you extend a Gigabit Ethernet network over multimode fiber, at distances up to 550m (1804 ft).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, this GbE to MM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet-to-fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U), as well as a replaceable SFP slot.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote status monitoring ensures maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
The ET91000LC2 1000 Mbps Gigabit Multimode Fiber Media Converter (LC, 550m) lets you extend a Gigabit Ethernet network over multimode fiber, at distances up to 550m (1804 ft).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, this GbE to MM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet-to-fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U), as well as a replaceable SFP slot.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote status monitoring ensures maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
| Auto MDI/MDI-X | Yes |
| Certification | CE, FCC |
| Colour of product | Black |
| Connectivity technology | Wired |
| Converter input interface | 1000Base-T |
| Converter output interface | 1000Base-LX,1000Base-SX |
| Data transfer rate (max) | 2000 Mbit/s |
| DC-in jack | Yes |
| Dimensions (WxDxH) | 95 x 160 x 20 mm |
| Duplex system | Full,Half |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN (RJ-45) ports quantity | 1 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN data transfer rates | 10, 100, 1000 Mbit/s |
| External power adapter | Yes |
| Fiber mode structure | Multi-mode |
| Fiber optic connector | LC |
| Fiber ports quantity | 1 |
| Full duplex | Yes |
| Internal | No |
| Manual | Yes |
| Maximum transfer distance | 550 m |
| Mean time between failures (MTBF) | 65000 h |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating relative humidity range | 10 - 90 % |
| Operating temperature (T-T) | 0 - 60 °C |
| Operating temperature range (T-T) | 0 - 60 °C |
| Output current | 1 A |
| Output voltage | 12 V |
| Package depth | 203 mm |
| Package height | 90 mm |
| Package weight | 700 g |
| Package width | 135 mm |
| Plug and Play | Yes |
| Power consumption (typical) | 4 W |
| RoHS compliance | Yes |
| Source data-sheet | Icecat.biz |
| Storage temperature (T-T) | -10 - 70 °C |
| Storage temperature range (T-T) | -10 - 70 °C |
| Wavelength | 850 nm |
| Weight | 620 g |
