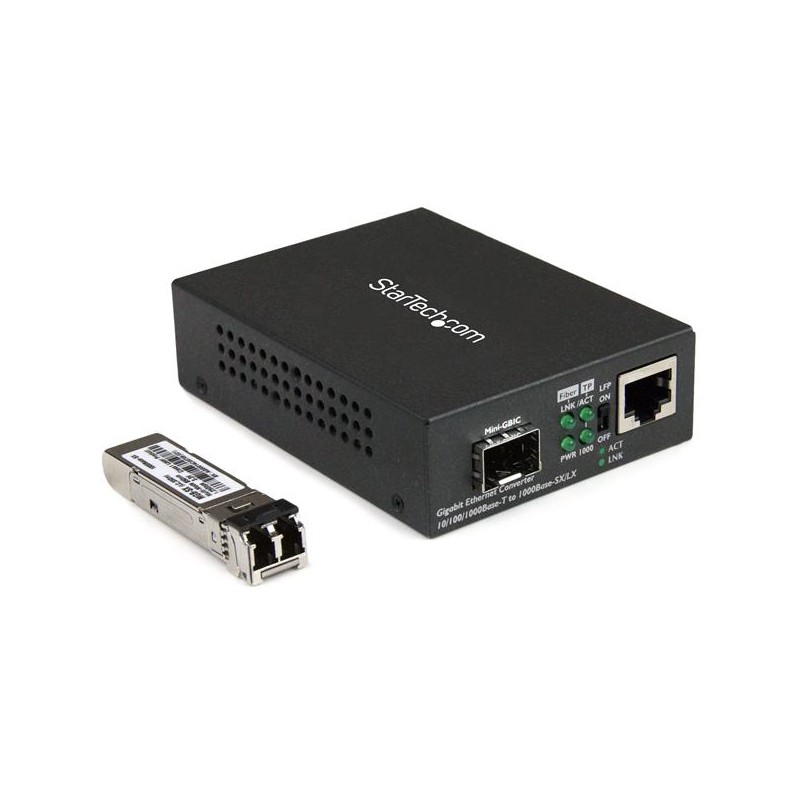

StarTech.com Gigabit Ethernet Fiber Media Converter - Compact - 850nm MM LC - 550m
  • StarTech.com Gigabit Ethernet Fiber Media Converter - Compact - 850nm MM LC - 550m
  • StarTech.com Gigabit Ethernet Fiber Media Converter - Compact - 850nm MM LC - 550m
  • StarTech.com Gigabit Ethernet Fiber Media Converter - Compact - 850nm MM LC - 550m
  • StarTech.com Gigabit Ethernet Fiber Media Converter - Compact - 850nm MM LC - 550m
  • StarTech.com Gigabit Ethernet Fiber Media Converter - Compact - 850nm MM LC - 550m
  • StarTech.com Gigabit Ethernet Fiber Media Converter - Compact - 850nm MM LC - 550m
Convert and extend different networks over a Gigabit fiber cable connection up to 550m / 1804ft

This fiber media converter offers an easy, cost-effective way to extend your network over Gigabit fiber. It is equipped with a multimode transceiver which converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful extended networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.

Cost-effective extension and dependable performance

The Gigabit Fiber Media Converter provides a cost-effective and dependable solution for shorter range network extensions. It connects an Ethernet network to remote devices over a fiber backbone, with a 550m range on the fiber optic interface. The media converter has a durable metal housing, engineered to deliver long-lasting performance.

Versatile connections for broad compatibility

Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.

The multimode transceiver is removable, giving you the flexibility to change your transceiver in the future to meet your networking needs.

Easy installation and compact convenience

The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option to save space.

The MCM1110MMLC is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Convert between an RJ45 copper Ethernet connection and a fiber optic connection to extend your network cost-effectively
- 10/100/1000 Mbps RJ45 port supports auto negotiation to bridge different network speeds and devices to a Gigabit fiber network
- Compact standalone design and wall mounting option for easy and convenient installation
Auto MDI/MDI-XYes
CertificationCE, FCC
Colour of productBlack
Connectivity technologyWired
Converter input interface1000Base-T,100Base-TX,10Base-T
Converter output interface1000Base-LX,1000Base-SX
Data transfer rate1000 Mbit/s
Data transfer rate (max)1000 Mbit/s
DC-in jackYes
Depth97 mm
Duplex systemFull
Ethernet interface typeGigabit Ethernet
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
External power adapterYes
Fiber mode structureMulti-mode
Fiber optic connectorLC
Fiber ports quantity1
Height26 mm
Housing materialSteel
Input current1 A
Input voltage100-240 V
InternalNo
Jumbo frames supportYes
LED indicatorsActivity,Link,Power
ManualYes
Maximum transfer distance550 m
Mean time between failures (MTBF)50000 h
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3z
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)0 - 50 °C
Output current2 A
Output voltage5 V
Package depth283 mm
Package height67 mm
Package weight510 g
Package width137 mm
Plug typeType N (BR)
Power over Ethernet (PoE)No
Power over Ethernet (PoE) supportNo
RoHS complianceYes
Storage temperature (T-T)-10 - 70 °C
Wavelength850 nm
Weight200 g
Width70 mm
Wavelength-division multiplexing (WDM)No

MCM1110MMLC.pdf

StarTech.com Gigabit Ethernet Fiber Media Converter - Compact - 850nm MM LC - 550m Data Sheet

Download (203.79k)
