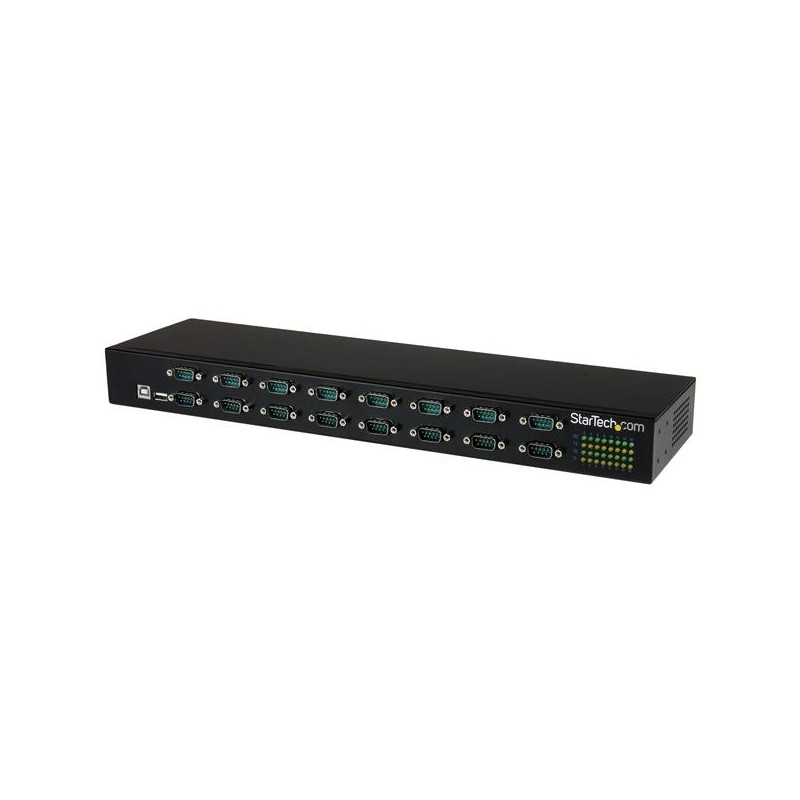

Here’s an easy and cost-efficient way to add RS232 serial capability to your industrial setting. This 16-port USB-to-serial adapter hub features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.
A scalable solution for changing needs
This rack-mountable USB serial hub (FTDI) lets you add 16 serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a higher cost serial hub.
Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including: industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.
Built-in convenience
The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer.
The hub features a reliable FTDI USB-to-serial chipset, which provides easy installation into a broad range of operating systems.
Meets the demands of industrial environments
With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F), ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options.
The ICUSB23216FD is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Cables included |
USB |
Certification |
CE. FCC. RoHS |
Chipset |
FTDI - FT232RL |
Colour of product |
Black |
Data transfer rate |
480 Mbit/s |
Depth |
430 mm |
Height |
45 mm |
Host interface |
USB 2.0 |
Hub interfaces |
Serial |
Input current |
1.5 A |
Input voltage |
100-240 V |
Mac operating systems supported |
Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.9 Mavericks |
Material |
Steel |
Operating temperature (T-T) |
-40 - 85 °C |
Output current |
3 A |
Output voltage |
12 V |
Package depth |
450 mm |
Package height |
60 mm |
Package weight |
2300 g |
Package width |
215 mm |
Plug type |
Type N (BR) |
Ports quantity |
16 |
Power consumption (max) |
36 W |
Rack mounting |
Yes |
RS-232 ports |
16 |
Weight |
1550 g |
Width |
120 mm |
Windows operating systems supported |
Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64 |
Included power plug types |
AU,EU,NA,UK |
Specific References
- EAN13
- 0065030864763
StarTech.com 16-Port USB-to-Serial Adapter Hub Data Sheet
