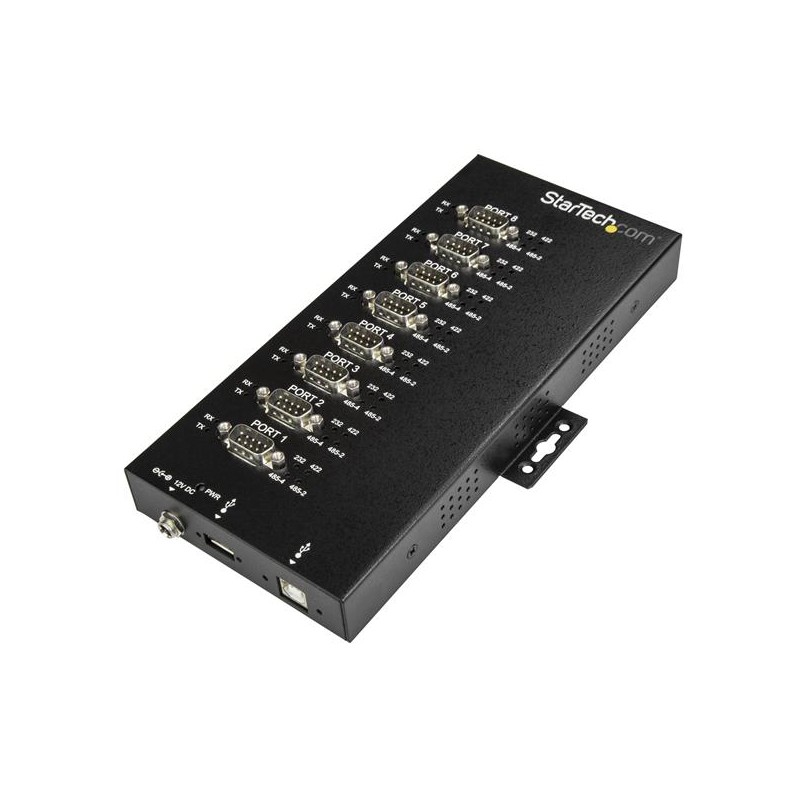

StarTech.com 8-Port Industrial USB to RS-232/422/485 Serial Adapter - 15 kV ESD Protection
  • StarTech.com 8-Port Industrial USB to RS-232/422/485 Serial Adapter - 15 kV ESD Protection
  • StarTech.com 8-Port Industrial USB to RS-232/422/485 Serial Adapter - 15 kV ESD Protection
  • StarTech.com 8-Port Industrial USB to RS-232/422/485 Serial Adapter - 15 kV ESD Protection
  • StarTech.com 8-Port Industrial USB to RS-232/422/485 Serial Adapter - 15 kV ESD Protection
  • StarTech.com 8-Port Industrial USB to RS-232/422/485 Serial Adapter - 15 kV ESD Protection
Add eight ports supporting three serial protocols, to easily connect serial devices to your computer through USB, with 15kV ESD protection

Add extra COM ports to your laptop or desktop computer, quickly and easily. This USB to RS232/422/485 serial adapter lets you connect to your serial devices through an external USB port.

Supports multiple serial protocols

The versatile serial adapter converts a single USB port into eight RS232/RS422/RS485 serial ports, enabling you to connect, monitor, and control a wide range of serial devices, such as sensors, barcode scanners, and LED signage. It supports four operating modes, including RS232, RS422, 4-wire and 2-wire RS485.

Ideal for harsh environments

With its rugged IP30-rated metal hub housing, the serial adapter is built to meet the extreme demands of harsh and mission-critical environments. It provides 15 kV ESD protection, which helps to reduce downtime in industrial environments where communications lines are more prone to noise emissions or sudden spikes in voltage.

The serial adapter offers flexible mounting options, with a built-in wall-mounting bracket and included DIN rail mounting kit. It also features a screw-locking host connection plus a screw-locking USB-B connector on the included USB cable, to prevent accidental disconnections.

Fast data transfers

The serial adapter is equipped with high-speed UARTs, providing fast data rates of up to 921Kbps in RS232/422/485 operating modes.

The ICUSB234858I is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Converts a single USB port into eight RS232/RS422/RS485 serial ports over USB 2.0 with four modes: RS232, RS422, 4-wire and 2-wire RS485
- 15 kV ESD protection (Level 4) against noise emissions and electrical voltage surges
- DIN rail and wall mountable
AC adapter included Y
Baud rate 921.6 Kbit/s
Cables included USB
Certification CE, FCC, TAA, RoHS
Chipset FTDI - FT4232H, Genesys Logic - GL825
Data bits 7,8
Depth 219 mm
Height 25 mm
Host interface USB 2.0
Hub interfaces Serial
Input current 1 A
Input voltage 100 - 240 V
LED indicators Power
Linux operating systems supported Y
Mac operating systems supported Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.9 Mavericks
Material Steel
Operating relative humidity (H-H) 5 - 95 %
Operating temperature (T-T) 0 - 55 °C
Output current 3 A
Output voltage 12 V
Package depth 192 mm
Package height 70 mm
Package weight 760 g
Package width 290 mm
Parity bit Even,Mark,N,Odd,Space
Plug type Type M
Ports quantity 8
Power consumption (typical) 36 W
Power source type AC
RS-232 ports 8
Stop bits 1,2
Storage temperature (T-T) -20 - 85 °C
Surge protection Y
USB 2.0 ports quantity 2
Weight 750 g
Width 128 mm
Windows operating systems supported Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Wind
Included power plug types ANZ,EU,UK,US
Product colour Black
DIN rail kit included Y

Specific References

EAN13
0065030878579

ICUSB234858I.pdf

StarTech.com 8-Port Industrial USB to RS-232/422/485 Serial Adapter - 15 kV ESD Protection Data Sheet

StarTech.com 8-Port Industrial USB to RS-232/422/485 Serial Adapter - 15 kV ESD Protection

StarTech.com 8-Port Industrial USB to RS-232/422/485 Serial Adapter - 15 kV ESD Protection
In Stock
£437.99
£364.99 Ex. VAT
Reference: ICUSB234858I
