Reasons to Buy
Technical Headlines
Omada Cloud Essentials - A Free and Easy Cloud-Based Network Mnagement
Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.
- 16× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
- 2× Gigabit RJ45 port, 2× Gigabit SFP port
- 250W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack-mountable design
Technical Headlines
- Managed L2 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 18
- MAC address table: 8000 entries Switching capacity: 40 Gbit/s
- Rack mounting
- AC Power supply included Power over Ethernet (PoE)
Omada Cloud Essentials - A Free and Easy Cloud-Based Network Mnagement
Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 18 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Cables included | AC |
| Depth | 180 mm |
| Firmware upgradeable | Yes |
| Flash memory | 64 MB |
| Flow control support | Yes |
| Forwarding rate | 29.76 Mpps |
| Gigabit Ethernet (copper) ports quantity | 18 |
| Heat dissipation | 984.88 BTU/h |
| Height | 44 mm |
| IGMP snooping | Yes |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| Link aggregation | Yes |
| MAC address table | 8000 entries |
| Mean time between failures (MTBF) | 310550.7 h |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Noise level | 41.5 dB |
| Number of fans | 2 fan(s) |
| Number of VLANs | 32 |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -5 - 50 °C |
| Package type | Box |
| Packet buffer memory | 4 MB |
| Port mirroring | Yes |
| Power consumption (max) | 289.7 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power source | AC |
| Power supply included | Yes |
| Quality of Service (QoS) support | Yes |
| Rack mount kit | Yes |
| Rack mounting | Yes |
| Source data-sheet | Icecat.biz |
| Stackable | No |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Yes |
| Surge protection | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Switching capacity | 40 Gbit/s |
| Total Power over Ethernet (PoE) budget | 250 W |
| User guide | Yes |
| VLAN support | Yes |
| Web-based management | Yes |
| Width | 440 mm |
| Jumbo frames | 15000 |
| SFP module slots quantity | 2 |
| Loop protection | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power connector | AC-in jack |
| Fast leave | Yes |
| Surge protection voltage | 6 kV |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Product colour | Black |
| Zero Touch Provisioning (ZTP) | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| DHCP features | DHCP client |
| Cloud-managed | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Unified static configuration | Yes |
Specific References
- EAN13
- 1210002607858

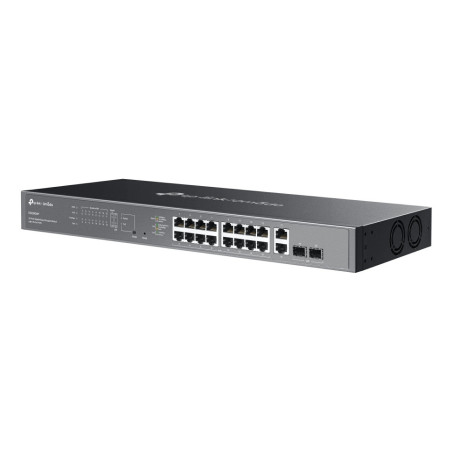

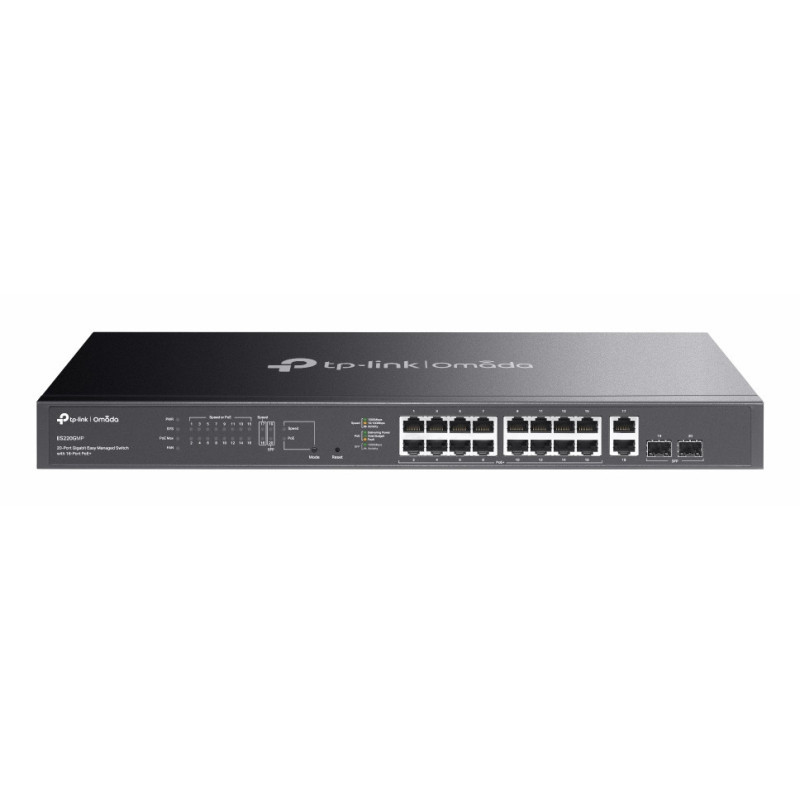

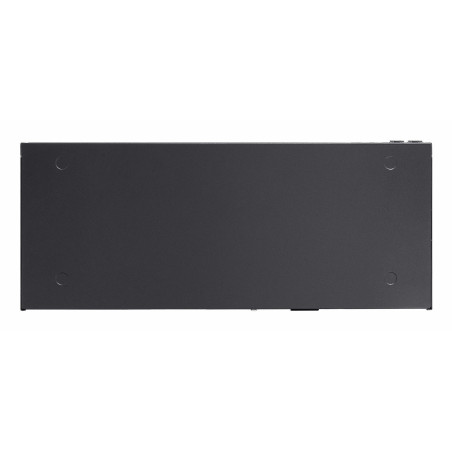

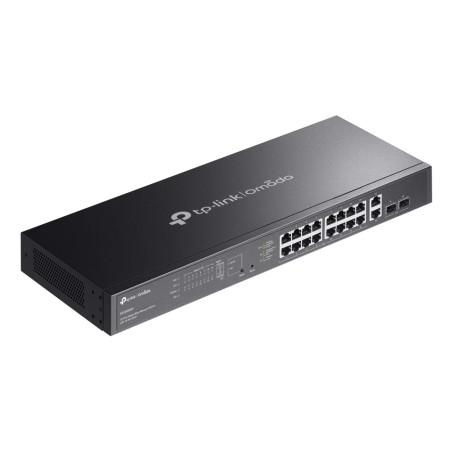

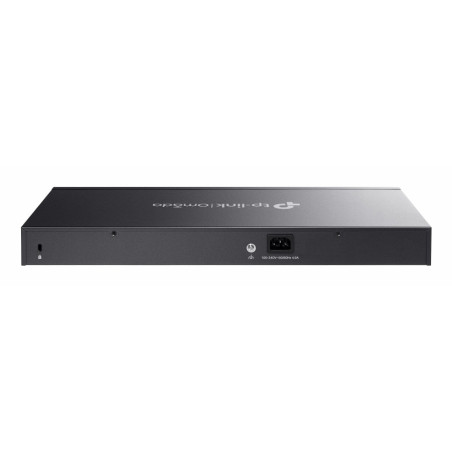

TP-Link ES220GMP
TP-Link Omada ES220GMP, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting
£237.20
£197.66 Ex. VAT
TP-Link Omada ES220GMP, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting
