Easily distribute a single Ultra-High-Definition (UHD) signal to multiple displays.

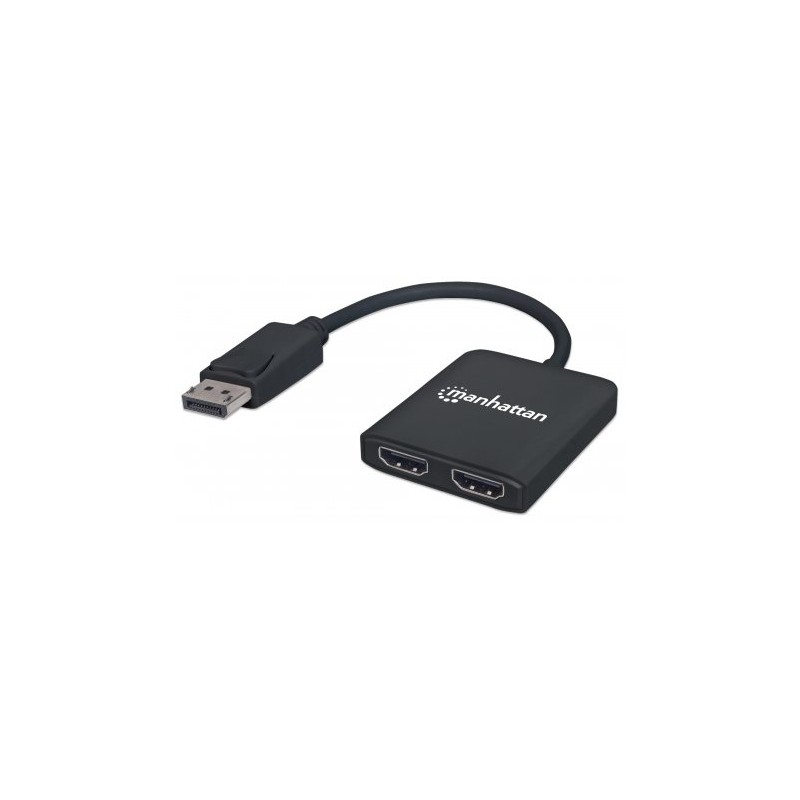

The Manhattan DisplayPort to 2-Port HDMI Splitter Hub with Multi-Stream Transport (MST) streams a 4K DisplayPort (DP) signal from a single UHD source to up to two UHD HDMI displays.
Flexible Solution for Many A/V Applications
Ideal for trade shows, classrooms, video conferencing, presentations and retail applications, the Manhattan DisplayPort to 2-Port HDMI Splitter Hub with MST features a built-in booster for added signal strength. It’s a great choice for splitting and distributing a synchronous signal, in either mirrored or extended modes, to multiple 4K HDMI displays. MST mode creates a video wall from two displays to give the user a more immersive experience when gaming, in a conference setting or in a home office.
Quality Construction and Easy Installation
Full compliance with DisplayPort, HDCP 2.2 and DVI 1.0 ensures that the Manhattan DisplayPort to 2-Port HDMI Splitter Hub with MST can provide long service and reliable performance. Quickly connect HDMI cables (not included) and the included USB power cable, and this affordable, Ultra-High-Definition 4K DisplayPort/HDMI solution is complete — no software/hardware configuration or complicated settings required.
- Duplicates an Ultra-High-Definition (UHD) DisplayPort (DP) signal for up to two UHD HDMI displays
- 4K@30Hz resolution, full 3D video and Deep Color
- Supports compressed DTS Master Audio as well as 7.1 surround sound audio up to 192 kHz
- Supports Mirror, Extended and Multi-Stream Transport (MST) modes to maximize work or gaming capabilities
- Mirror mode duplicates the computer screen onto two displays with resolutions up to 4K@30Hz
- Extended mode expands the desktop workspace to up to two additional screens with resolutions up to 4K@30Hz
- MST mode creates a video wall for a more immersive experience, using two screens — with resolutions up to 3840x2160 at 30 Hz — as one; requires a graphics card that supports video-wall function
- USB powered with Plug and Play installation; no special setup or remote required
- Integrated DisplayPort cable
- Ideal for enhancing display capabilities or creating a video wall in locations such as schools, churches, conference rooms, trade shows and retail outlets; perfect for digital signage and AMD Eyefinity Technology in gaming
- HDCP 2.2 compliant
- Gold-plated contacts for corrosion-free connections
Cables included |
micro-USB |
Connector 1 |
DisplayPort |
Connector contacts plating |
Gold |
DC-in jack |
Y |
Dimensions (WxDxH) |
255 x 50 x 11 mm |
Full HD |
Y |
HDCP |
Y |
Housing material |
Plastic |
Input current |
2 A |
Input voltage |
5 V |
Operating relative humidity (H-H) |
0 - 96 % |
Operating temperature (T-T) |
0 - 40 °C |
Storage temperature (T-T) |
-20 - 60 °C |
Supported video modes |
480i,480p,576i,576p,720p,1080i,1080p,2160p |
USB powered |
Y |
Video port type |
HDMI |
Video ports quantity |
2 |
Weight |
50 g |
Windows operating systems supported |
Y |
3D |
Y |
Product colour |
Black |
Specific References
- EAN13
- 0766623152716
