The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
- Online double conversion topology
- Energy efficient (up to 95% in Online mode, 98% in high-efficiency mode, ENERGY STAR® qualified UPS)
- Next-generation graphical LCD display (7 languages)
- Provides more real power (watts) to protect more equipment with a 0.9 power factor
- Parallel operation using HotSync technology (available in Q2 2013)
- Maintenance ByPass available as standard (on HotSwap/BP version)
- Energy metering - kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software Suite
- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
- Online double conversion topology
- Energy efficient (up to 95% in Online mode, 98% in high-efficiency mode, ENERGY STAR® qualified UPS)
- Next-generation graphical LCD display (7 languages)
- Provides more real power (watts) to protect more equipment with a 0.9 power factor
- Parallel operation using HotSync technology (available in Q2 2013)
- Maintenance ByPass available as standard (on HotSwap/BP version)
- Energy metering - kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software Suite
- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
| AC outlet types | C13 coupler, C19 coupler, Terminal |
| Certification | IEC/EN 62040 -2 , FCC A, IEC/EN 62040-3 |
| Colour of product | Black |
| Crest factor | 3:1 |
| Depth | 685 mm |
| Display | LCD |
| Height | 990mm |
| Input current THD | 5 % |
| Input operation voltage (max) | 276 V |
| Interface | USB, RS232 |
| Maximum current | 90 A |
| Noise level | 97.4 dB |
| Operating temperature range (T-T) | 0 - 40 °C |
| Output power | DC 9V |
| Output power capacity (VA) | 5000 VA |
| Power plug | Type G (BS 1363) |
| Power supply input frequency | 40/70 Hz |
| Safety | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| Source data-sheet | Icecat.biz |
| Weight | 48 kg |
| Width | 993 mm |
Specific References
- EAN13
- 0743172040183

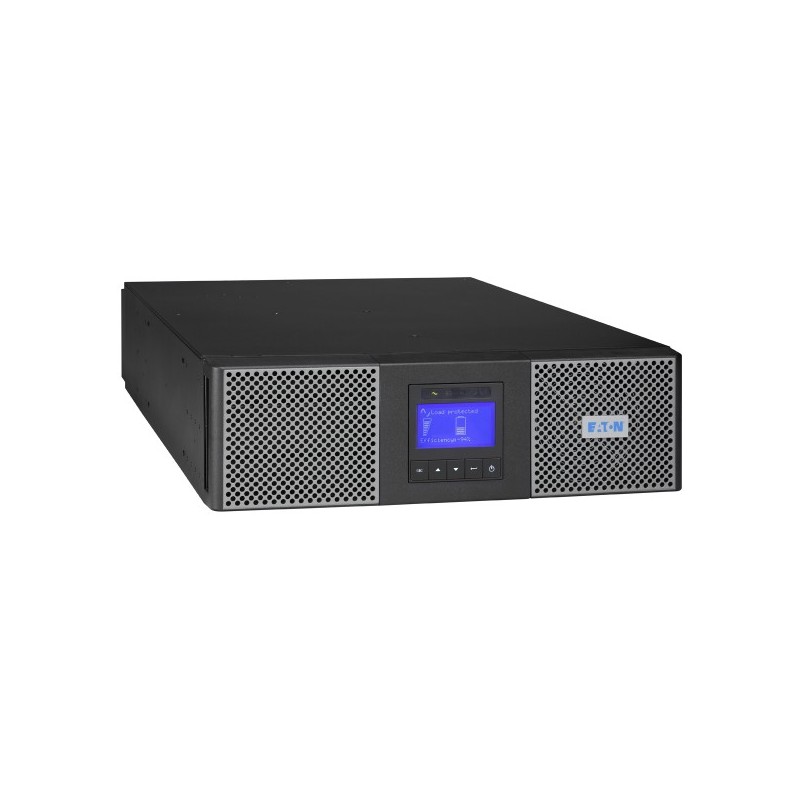

Eaton 9PX5KIRTN
9PX with Network Card and Rack Kit, 5000VA
£3,170.28
£2,641.90 Ex. VAT
9PX with Network Card and Rack Kit, 5000VA
