Green Technology
- IEEE 802.3az Energy Efficient Ethernet
- D-Link Green 3.0 power-s!aving features
- LED and Port Shutoff
- Port Standby
- System Hibernation
- Cable Length Detection
- Link Status Detection
- Time-based PoE (PoE model only)
Security Features
- Access Control List
- D-Link Safeguard Engine
- Port Security
- ARP Spoofing Prevention
- Smart IP-MAC-Port Binding
Intuitive Management
- IPv4/ IPv6 Dual Stack1
- Web GUI (supports 10 languages)
- SmartConsole utility
- SNMP and RMON
- Simplified CLI through Telnet
QoS
- Supports IEEE 802.1p QoS
- Supports DSCP
Advanced Features
- Auto Surveillance VLAN
- Auto Voice VLAN
- Port or VLAN-based Loopback Detection
- Cable Diagnostics
- LLDP/LLDP-MED
Trap & Logs
- SNMP Trap
- Trap for SmartConsole Utility
- System Log
- IEEE 802.3az Energy Efficient Ethernet
- D-Link Green 3.0 power-s!aving features
- LED and Port Shutoff
- Port Standby
- System Hibernation
- Cable Length Detection
- Link Status Detection
- Time-based PoE (PoE model only)
Security Features
- Access Control List
- D-Link Safeguard Engine
- Port Security
- ARP Spoofing Prevention
- Smart IP-MAC-Port Binding
Intuitive Management
- IPv4/ IPv6 Dual Stack1
- Web GUI (supports 10 languages)
- SmartConsole utility
- SNMP and RMON
- Simplified CLI through Telnet
QoS
- Supports IEEE 802.1p QoS
- Supports DSCP
Advanced Features
- Auto Surveillance VLAN
- Auto Voice VLAN
- Port or VLAN-based Loopback Detection
- Cable Diagnostics
- LLDP/LLDP-MED
Trap & Logs
- SNMP Trap
- Trap for SmartConsole Utility
- System Log
| 10G support | No |
| AC input voltage | 100-240 V |
| Access Control List (ACL) | Yes |
| Auto MDI/MDI-X | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 20 |
| Cable management | Yes |
| Certification | FCC, CE, ICES, VCCI, BSMI, C-Tick |
| Colour of product | Black |
| Data link protocols | IP |
| Depth | 140 mm |
| DHCP client | Yes |
| DHCP server | Yes |
| Ethernet LAN (RJ-45) ports quantity | 20 |
| Flow control support | Yes |
| Form factor | 1U |
| Full duplex | Yes |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Head-of-line (HOL) blocking | Yes |
| Height | 44 mm |
| IGMP snooping | Yes |
| LED indicators | Yes |
| MAC address filtering | Yes |
| MAC address table | 16000 entries |
| Management | Smart Managed |
| Management protocols | SNMP, RMON |
| Maximum data transfer rate | 1 Gbit/s |
| MIB support | SNTP, ICMPv6, IPv4/v6 |
| Mounting | Rackmount |
| Multicast support | Yes |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating relative humidity range | 0 - 95 % |
| Operating temperature (T-T) | 41 - 122 °F |
| Operating temperature range (T-T) | -5 - 50 °C |
| Packet buffer memory | 1 MB |
| Packet transfer speed | 29.8Mp/s |
| PoE | No |
| Port mirroring | Yes |
| Ports quantity | 20 |
| Power consumption (typical) | 14.06 W |
| Power LED | Yes |
| Power over Ethernet (PoE) | No |
| Power over Ethernet (PoE) support | No |
| Quality of Service (QoS) support | Yes |
| Rack mounting | Yes |
| RJ45 Ports Qty | 16 |
| Safety | cUL, CE LVD |
| SFP Ports Qty | 4 |
| SFP/SFP+ slots quantity | 4 |
| Source data-sheet | Icecat.biz |
| Spanning tree protocol | Yes |
| SSH/SSL support | Yes |
| Stackable | Yes |
| Static port security | Yes |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage relative humidity range | 0 - 95 % |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage temperature range (T-T) | -20 - 70 °C |
| Store-and-forward | Yes |
| Supported data transfer rates | 10/100/1000 Mb/s |
| Switch layer | L2 |
| Switch Speed | Gigabit |
| Switch type | Managed |
| Switching capacity | 40 Gbit/s |
| VLAN support | Yes |
| Weight | 2200 g |
| Width | 440 mm |
| SFP module slots quantity | 4 |
Specific References
- EAN13
- 0790069373220

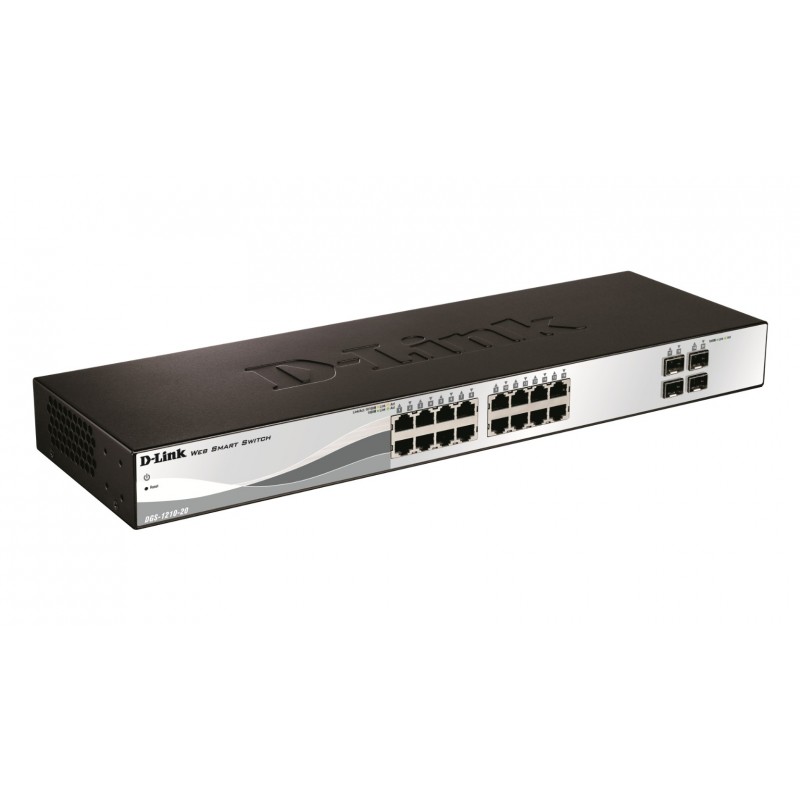

D-Link DGS-1210-20
16x Gigabit Ethernet, 4x SFP, 40Gb/s, Black
£167.34
£139.45 Ex. VAT
16x Gigabit Ethernet, 4x SFP, 40Gb/s, Black
