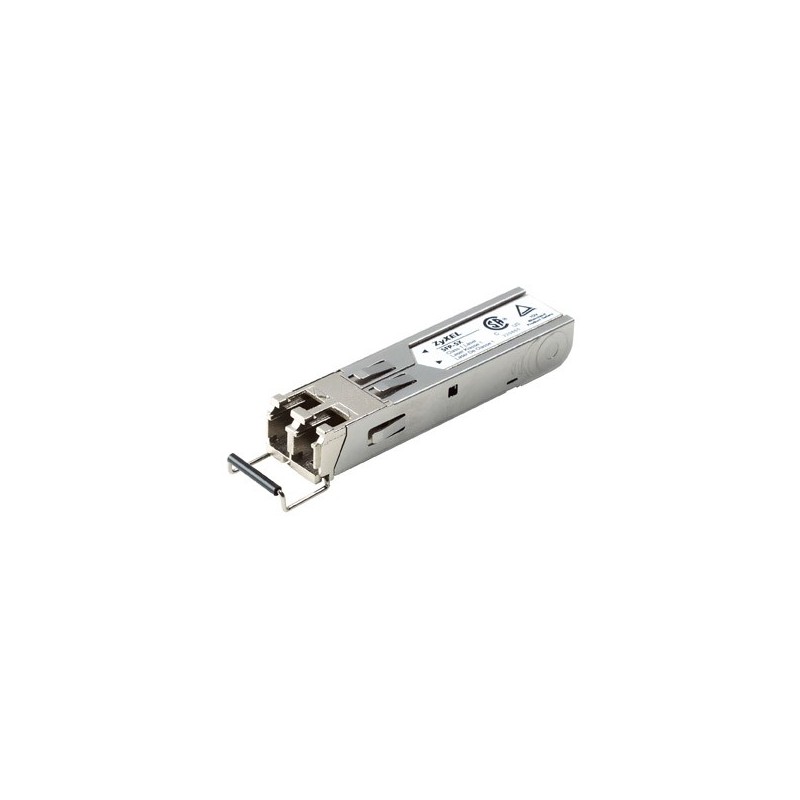

ZyXEL SFP-SX-D
SFP ports mean flexibility. The flexibility to choose which fiber you want to run and what sort of distance you need. They save money by allowing you to use existing fiber so you don’t have to run more. Instead of buying a switch with built-in fiber ports, buy a switch with SFP ports that allows you to choose what type of fiber transceiver you want to use on a port-by-port basis.

- Gigabit Performance Transmission and Flexibility

- Small Size and High Port Density

- Industry Standard-based Compliance



Gigabit Speed and Flexibility

ZyXEL's Small Form-factor Pluggable (SFP) transceiver family provides performance and flexibility with full duplex Gigabit speeds and hot-pluggable into Gigabit Ethernet port.



Small Size and High Port Density

ZyXEL's SFP transceiver's compact design provides high port density. For example, ZyXEL GS-3012F switch can connect up to 12 fiber links - all at an affordable price.



Industry Standards-based Compliance

ZyXEL's SFP transceiver family is compliant with IEEE 802.3z and SFP MSA allowing easy interoperability with all standard compliance devices from different vendors.
Cabling technology1000Base-LHX
Compliance industry standardsIEEE 802.3z
Data transfer rate (max)1000 Mbit/s
Dimensions (WxDxH)56 x 13.4 x 12.46 mm
Fiber typeSMF (9/10um)
Form factorPlug-in
InterfaceSFP
Maximum transfer distance40000 m
Operating relative humidity range5 - 95 %
Operating temperature range (T-T)0 - 70 °C
Power requirements+3.3V
SafetyClass 1 Laser, CSA, TUV, 21 CFR 1040.10 & 1040.11
Source data-sheetIcecat.biz
Storage temperature range (T-T)-40 - 85 °C
Wavelength1310 nm

You might also like

  • LC - LC Multimode Duplex Fibre Patch Leads
    LC - LC Multimode Duplex Fibre Patch Leads
  • LC Fibre Patch Panels
    LC Fibre Patch Panels
  • LC Multimode Fibre Pigtails
    LC Multimode Fibre Pigtails
  • LC - SC Duplex Fibre Patch Cables
    LC - SC Duplex Fibre Patch Cables

Similar products

  • ZyXEL SFP-LX-10-D
    ZyXEL SFP-LX-10-D
  • ZyXEL SFP10G-LR
    ZyXEL SFP10G-LR
  • ZyXEL SFP10G-SR
    ZyXEL SFP10G-SR

ZyXEL SFP-SX-D

1000Base-LHX SFP Transceiver, IEEE 802.3z

91-010-204001B

In Stock

£110.17
£91.81 Ex VAT.
