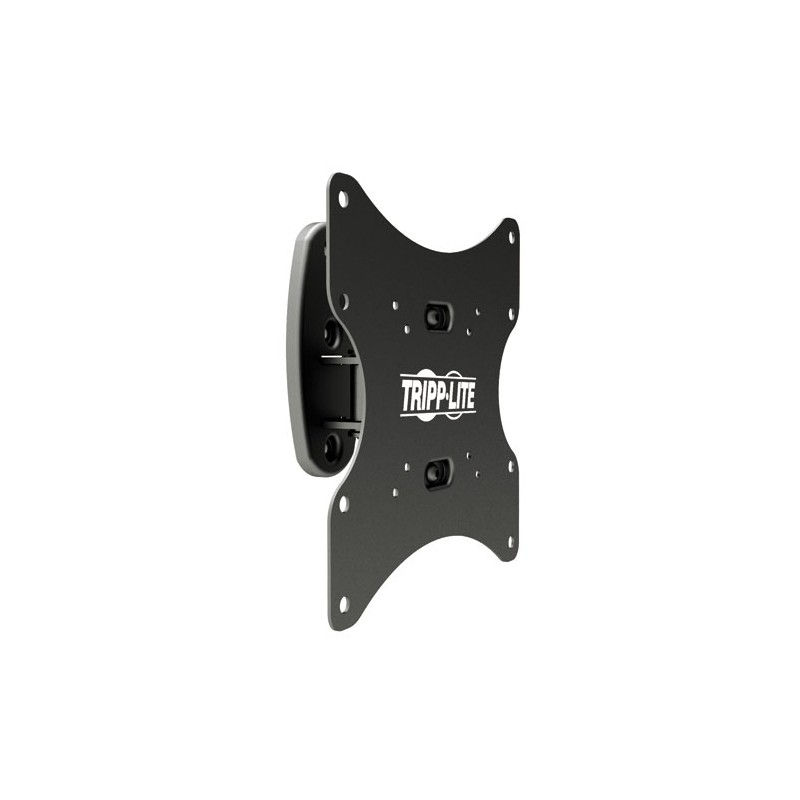

The VESA-compliant DWM1742MN Swivel/Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 17 to 42 inches. Adjust the display angle to fit your environment and comfort level. An 80° swivel, -15° to +15° tilt and -4° to +4° screen level adjustment capability minimizes glare and provides comfortable viewing from multiple angles. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 52 kgs (115 lbs.) Comes fully assembled for quick mounting to the wall with included hardware. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 75 x 75 mm, 100 x 100 mm, 200 x 100 mm and 200 x 200 mm.
Mounts Your TV or Monitor to the Wall
● Fits most flat-panel televisions, monitors and other displays from 17 to 42 in.
● Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
● Display angle adjusts to fit your environment and comfort level
● Mounting hardware included
Convenient One-Touch Adjustment
● 80° swivel, -15° to +15° tilt and -4° to +4° screen level adjustment capability provides comfortable viewing from multiple angles
Durable Metal Construction
● Supports up to 52 kg (115 lb.)
● Scratch-resistant powder-coated finish
● Fully assembled for immediate installation
VESA Compliance
● Supports the following VESA mounting hole patterns: 75 x 75 mm, 100 x 100 mm, 200 x 100 mm and 200 x 200 mm
● Fits most flat-panel displays from 17 to 42 in.
● One-touch adjustment for comfortable viewing
● 80° swivel, -15° to +15° tilt and -4° to +4° screen adjustment
● 5-year warranty
● Supports up to 52 kg (115 lb.)
Package Includes
● DWM1742MN Swivel/Tilt Wall Mount for 17" to 42" TVs and Monitors
● (4) M4 x 14 screws
● (4) M5 x 14 screws
● (4) M6 x 14 screws
● (4) M8 x 20 screws
● (4) D5 washers
● (4) D8 washers
● (8) Small spacers
● (3) Anchor bolts
● (3) Concrete anchors
● (3) D6 washers
● Hex key, 4 mm
● Owner’s manual
Colour of product |
Black |
Maximum screen size compatibility |
42 " |
Minimum screen size compatibility |
17 " |
Swivel angle |
80 ° |
Tilt angle |
-15 - 15 ° |
VESA mounting interfaces |
75 x 75,100 x 100,200 x 100,200 x 200 mm |
Weight |
1640 g |
Maximum weight capacity |
52 kg |
Minimum VESA mount |
75 x 75 mm |
Maximum VESA mount |
200 x 200 mm |
Tripp Lite Full-Motion Wall-Mount for 17" to 42" Flat-Screen Displays Data Sheet
