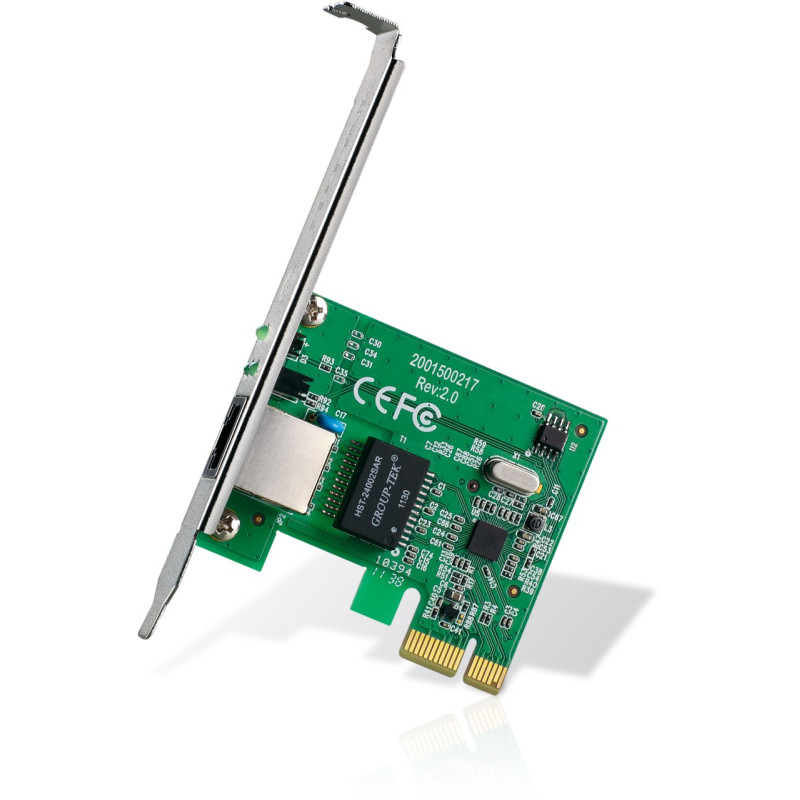

TP-LINK Gigabit PCI Express Network Adapter

More Info
Details
Spec Sheet

TG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.

The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network.

- Wake-on-LAN supporting

- Auto-Negotiation and Auto MDI/MDIX

- Supports IEEE802.3x Flow Control for Full-duplex Mode and backpressure for Half-duplex Mode

- Supports IEEE 802.1p Layer 2 Priority Encoding and IEEE802.1q VLAN tagging

- Supports power down/link down power saving

Cabling technology	10/100/1000BaseT(X)
Certification	FCC, CE
Colour of product	Green
Compatibility	PC&Notebook
Compatible operating systems	Win 98se/Me/2000/XP/XP64/Vista Linux
Compliance industry standards	IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p
Connectivity technology	Wired
Data transfer rate	1 Gbit/s
Data transfer rate (max)	2000 Mbit/s
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Flow control support	Yes
Full duplex	Yes
Host interface	PCI-E
I/O ports	1xRJ45
Interface	Ethernet
Internal	Yes
Jumbo frames support	Yes
Linux operating systems supported	Yes
Mac compatibility	No
Networking standards	IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)	10 - 90 %
Operating relative humidity range	10 - 90 %
Operating temperature (T-T)	32 - 104 °F
Source data-sheet	Icecat.biz
Storage relative humidity (H-H)	5 - 90 %
Storage relative humidity range	5 - 90 %
Storage temperature (T-T)	-40 - 70 °C
Storage temperature range (T-T)	-40 - 70 °C
Supported data transfer rates	10/100/1000 Mbps
Supported network protocols	CSMA/CD, TCP/IP
Supported protocols	CSMA/CD, TCP/IP
Wake-on-LAN ready	Yes
Windows operating systems supported	Windows 2000,Windows 2000 Professional,Windows 98SE,Windows ME,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows
Wireless LAN connection	Yes
