ETGEAR XSM4344FC
  • ETGEAR XSM4344FC
  • ETGEAR XSM4344FC
  • ETGEAR XSM4344FC
  • ETGEAR XSM4344FC
  • ETGEAR XSM4344FC
  • ETGEAR XSM4344FC
Reasons to Buy
  • 420W internal power supply.
  • 1 slot for modular power supply (1+1 redundancy).
  • Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used.
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
  • Layer 3 feature set includes static, policy-based, and dynamic routing.
  • NETGEAR IGMP Plus™, NETGEAR AV OS, and Engage Controller speed up AV installations.
  • SMPTE ST 2110 Grand Master Clock and Boundary Clock for AES67 and ST2059-2 applications.
  • Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS™ and Engage Controller.


Technical Headlines
  • Managed L3
  • Console port: USB
  • 10G support
  • Switching capacity: 1600 Gbit/s
  • 1U Rack mounting Stackable
  • AC Power supply included


POWER AND
THROUGHPUT

Edge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350

FOCUS ON THE EVENT
NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.

MAXIMIZE PERFORMANCE WITH PRO WIFI ACCESS POINTS
Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.
10G support Yes
Cables included AC, USB
Console port USB
Depth 400 mm
Fiber optic connector QSFP28, SFP+
Fiber ports quantity 44
Form factor 1U
Heat dissipation 728.21 BTU/h
Height 43.2 mm
IGMP snooping Yes
Internal memory 4000 MB
Jumbo frames support Yes
Manual Yes
Memory type DDR4-SDRAM
Noise level 69.5 dB
Power consumption (max) 213.6 W
Power over Ethernet (PoE) No
Power source AC
Power supply included Yes
Rack mount kit Yes
Rack mounting Yes
Source data-sheet Icecat.biz
Stackable Yes
Switch layer L3
Switch type Managed
Switching capacity 1600 Gbit/s
Weight 7.38 kg
Width 440 mm
Installed SFP+ modules quantity 40
Product colour Black
QSFP28 ports quantity 4
IGMP proxy Yes

Specific References

EAN13
0606449172942

XSM4344FC-100NES.pdf

NETGEAR XSM4344FC Data Sheet

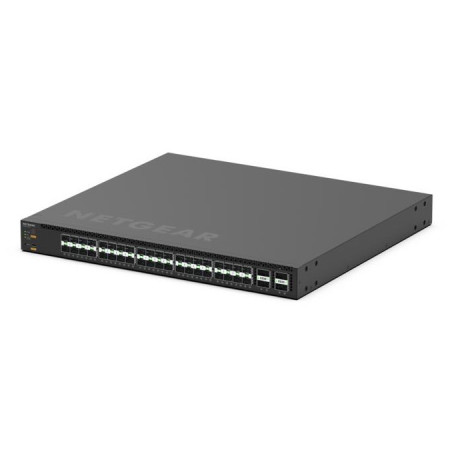

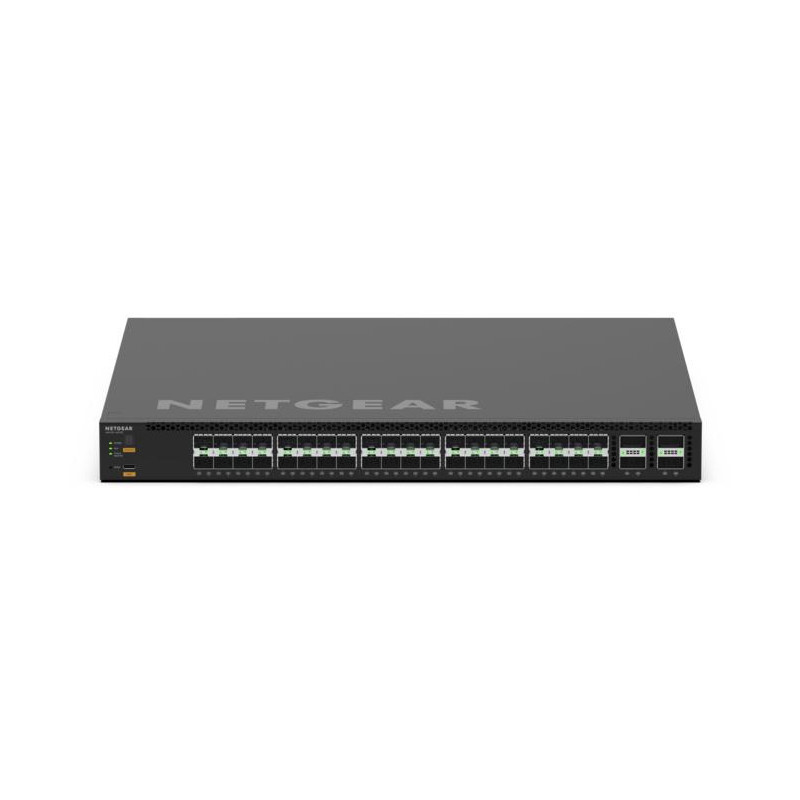

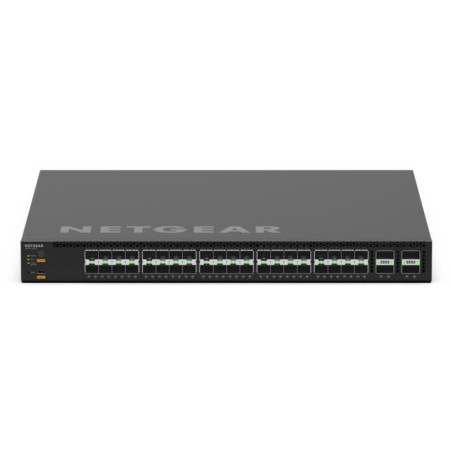

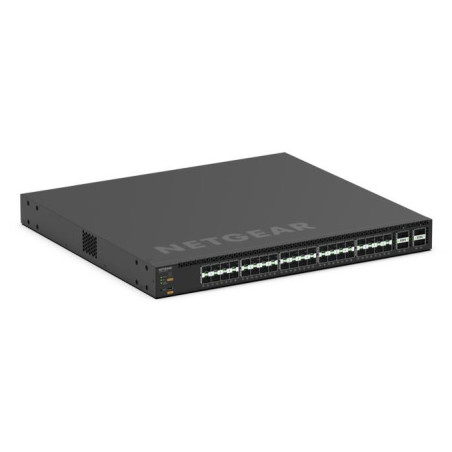

NETGEAR XSM4344FC

NETGEAR XSM4344FC, Managed, L3, Rack mounting, 1U
In Stock
£8,186.16
£6,821.80 Ex. VAT
Reference: XSM4344FC-100NES
Quantity
