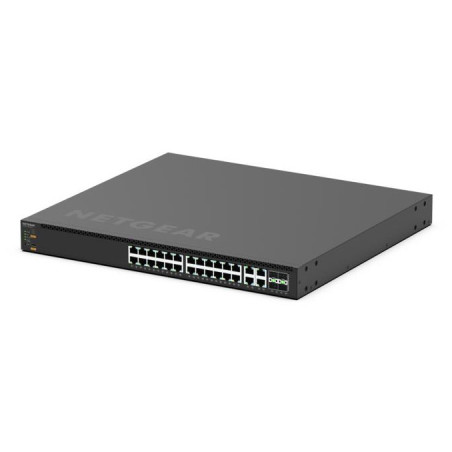

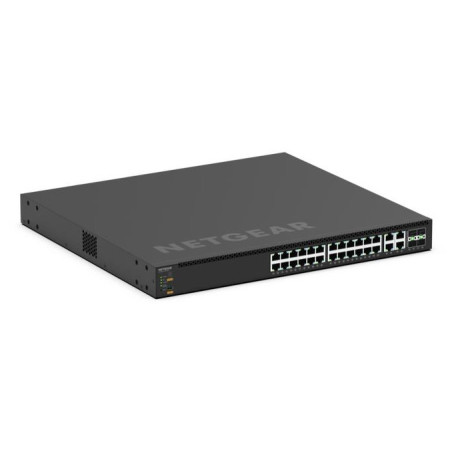

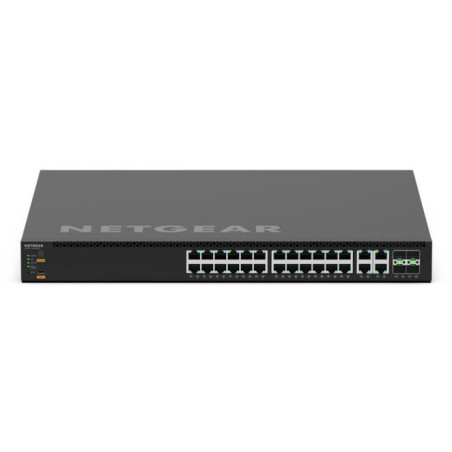

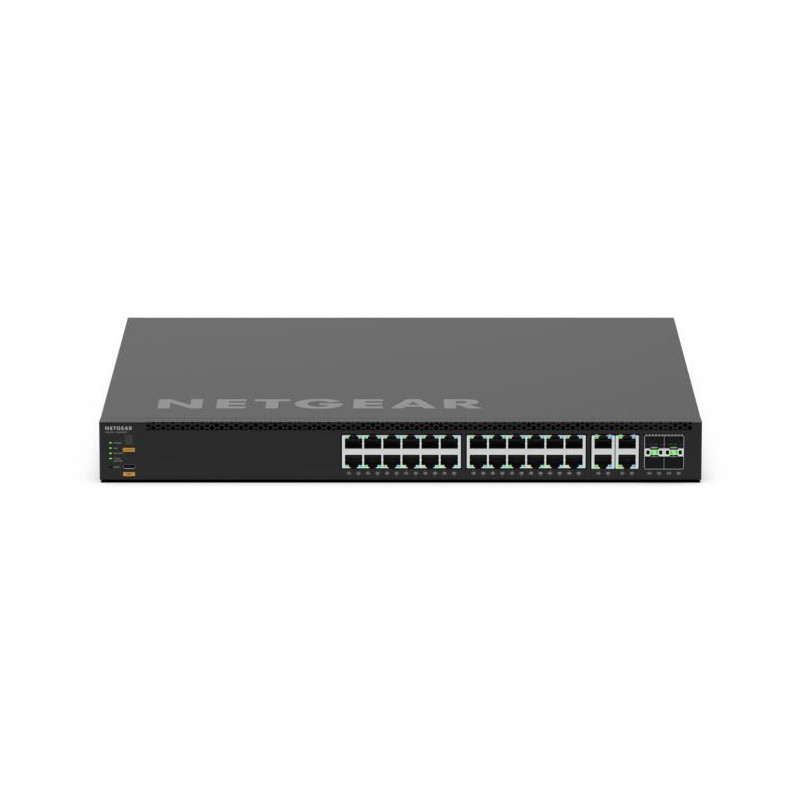

ETGEAR MSM4332
  • ETGEAR MSM4332
  • ETGEAR MSM4332
  • ETGEAR MSM4332
  • ETGEAR MSM4332
  • ETGEAR MSM4332
  • ETGEAR MSM4332
Reasons to Buy
  • 420W internal power supply.
  • 1 slot for modular power supply (1+1 redundancy).
  • Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used.
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
  • Layer 3 feature set includes static, policy-based, and dynamic routing.
  • NETGEAR IGMP Plus™, NETGEAR AV OS, and Engage Controller speed up AV installations.
  • SMPTE ST 2110 Grand Master Clock and Boundary Clock for AES67 and ST2059-2 applications.
  • Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS™ and Engage Controller.


Technical Headlines
  • Managed L3
  • Basic switching RJ-45 Ethernet ports quantity: 28 Console port: USB
  • 10G support 2.5GBASE-T, 10GBASE-T
  • Switching capacity: 400 Gbit/s
  • 1U Rack mounting Stackable
  • AC Power supply included Power over Ethernet (PoE)


POWER AND
THROUGHPUT

Edge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350

FOCUS ON THE EVENT
NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.

MAXIMIZE PERFORMANCE WITH PRO WIFI ACCESS POINTS
Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.
10G support Yes
Basic switching RJ-45 Ethernet ports quantity 28
Cables included AC, USB
Console port USB
Copper ethernet cabling technology 2.5GBASE-T, 10GBASE-T
Depth 400 mm
Fiber optic connector SFP28
Fiber ports quantity 4
Form factor 1U
Height 43.2 mm
IGMP snooping Yes
Internal memory 4000 MB
Jumbo frames support Yes
Manual Yes
Memory type DDR4-SDRAM
Noise level 66 dB
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 28
Power source AC
Power supply included Yes
Rack mount kit Yes
Rack mounting Yes
Source data-sheet Icecat.biz
Stackable Yes
Switch layer L3
Switch type Managed
Switching capacity 400 Gbit/s
Total Power over Ethernet (PoE) budget 2520 W
Weight 7.38 kg
Width 440 mm
Product colour Black
Power over Ethernet (PoE) type supported PoE++ (4PPoE)
SFP28 ports quantity 4
IGMP proxy Yes

Specific References

EAN13
5715328108578

MSM4332-100NES.pdf

NETGEAR MSM4332 Data Sheet

NETGEAR MSM4332

NETGEAR MSM4332, Managed, L3, Power over Ethernet (PoE), Rack mounting, 1U
In Stock
£4,686.68
£3,905.57 Ex. VAT
Reference: MSM4332-100NES
