Technical Headlines
RELIABLE PERFORMANCE
Superior network performance at non-blocking rate delivers true gigabit speed with no compromise
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
PLUG-AND-PLAY
No software to install. No configuration needed. Zero maintenance required
SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
VERSATILE MOUNTING OPTIONS
Install your switch on your desktop, mount it to your wall, or add it to a standard 19 inch (44 mm) rack with the hardware provided in the box
METAL CASE
Durable and rugged case for long-lasting performance
- Unmanaged
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 16
- MAC address table: 8000 entries Switching capacity: 32 Gbit/s
- Rack mounting
- Power supply included
RELIABLE PERFORMANCE
Superior network performance at non-blocking rate delivers true gigabit speed with no compromise
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
PLUG-AND-PLAY
No software to install. No configuration needed. Zero maintenance required
SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
VERSATILE MOUNTING OPTIONS
Install your switch on your desktop, mount it to your wall, or add it to a standard 19 inch (44 mm) rack with the hardware provided in the box
METAL CASE
Durable and rugged case for long-lasting performance
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Auto MDI/MDI-X | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Depth | 169 mm |
| Height | 43 mm |
| Housing material | Metal |
| Jumbo frames support | Yes |
| Latency (1 Gbps) | 15 µs |
| Latency (10 Gbps) | 35 µs |
| Latency (10-100 Mbps) | 30 µs |
| LED indicators | Activity, Link, Power, Speed |
| MAC address table | 8000 entries |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u |
| Operating temperature (T-T) | 0 - 50 °C |
| Power consumption (max) | 10 W |
| Power over Ethernet (PoE) | No |
| Power supply included | Yes |
| Quality of Service (QoS) support | Yes |
| Rack mounting | Yes |
| Source data-sheet | Icecat.biz |
| Storage temperature (T-T) | -20 - 70 °C |
| Switch type | Unmanaged |
| Switching capacity | 32 Gbit/s |
| Weight | 1.49 kg |
| Width | 328 mm |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Product colour | Grey |
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), ISED, KC, RCM, UKCA, VCCI |
Specific References
- EAN13
- 0606449164565

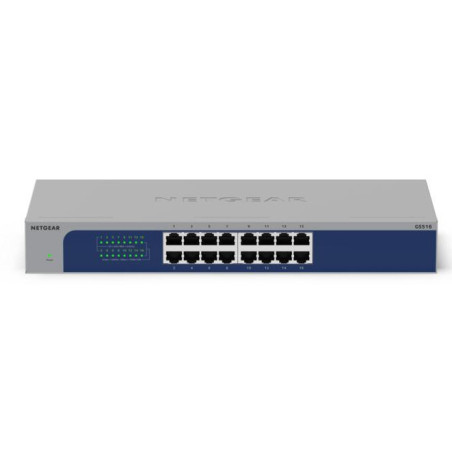

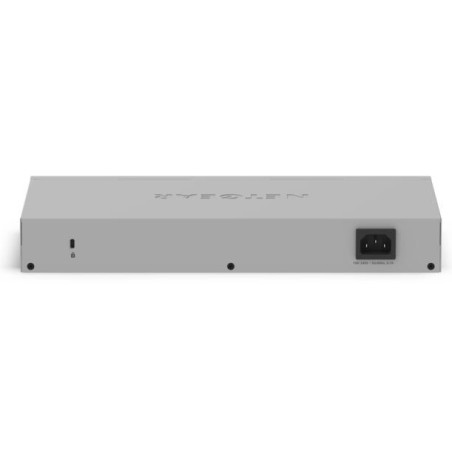

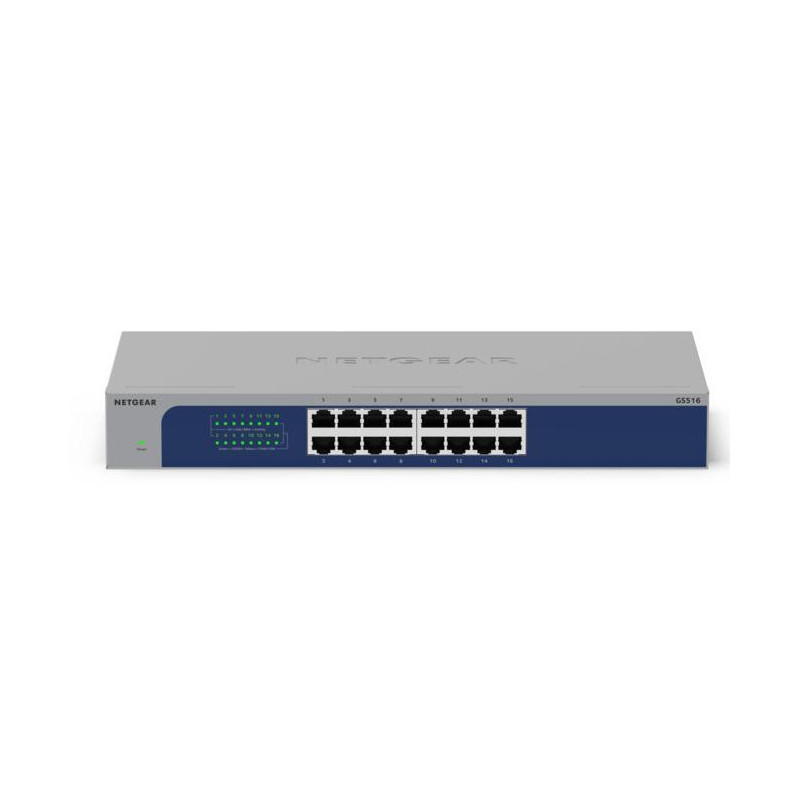

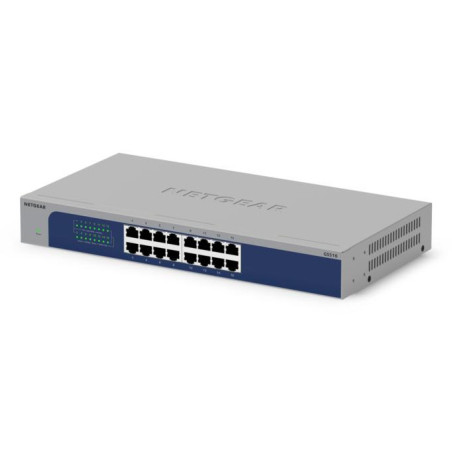

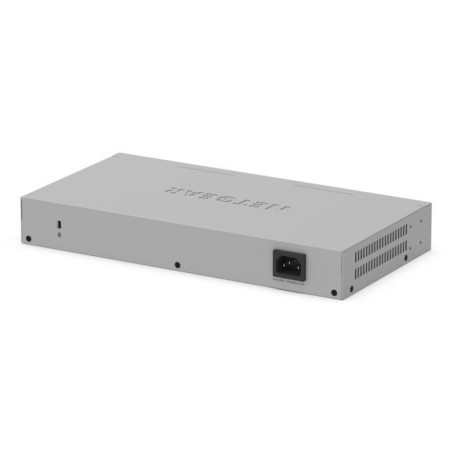

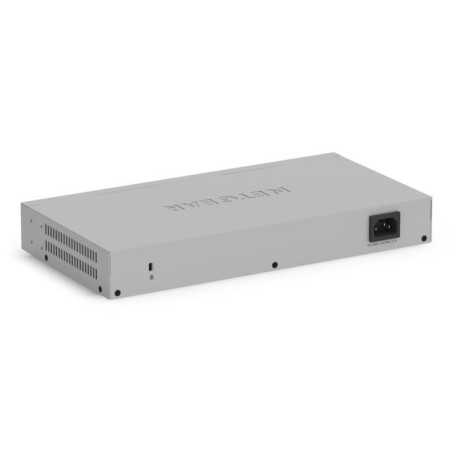

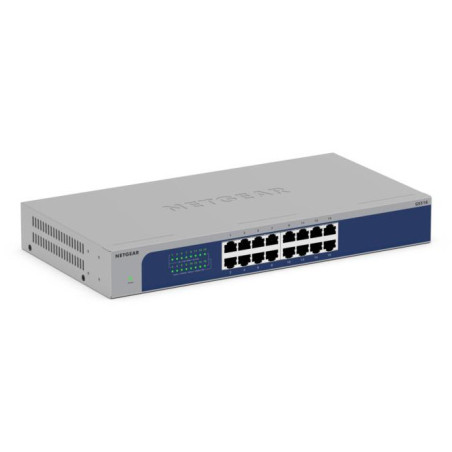

NETGEAR GS516-300EUS
NETGEAR GS516-300EUS, Unmanaged, Gigabit Ethernet (10/100/1000), Rack mounting
£102.73
£85.61 Ex. VAT
NETGEAR GS516-300EUS, Unmanaged, Gigabit Ethernet (10/100/1000), Rack mounting
