ETGEAR GS105PP
  • ETGEAR GS105PP
  • ETGEAR GS105PP
  • ETGEAR GS105PP
  • ETGEAR GS105PP
  • ETGEAR GS105PP
  • ETGEAR GS105PP
Reasons to Buy
  • 5 x Gigabit Ethernet ports with PoE+
  • Plug and play switch, no management required
  • Energy Efficient Ethernet for maximum power savings
  • Fanless and silent
  • Desktop or wall-mount


Technical Headlines
  • Unmanaged
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • 1000BASE-T, 100BASE-T, 10BASE-T
  • MAC address table: 2000 entries
  • Desktop/Wall-Mounting
  • AC/DC Power over Ethernet (PoE)


POWER-OVER-ETHERNET

4 PoE+ ports delivering up to 30W per port with a 83W total power budget for wireless APs, IP Cameras, IP Phones and much more.

PLUG-AND-PLAY

Simple set up with no software to install or configuration needed

NON-BLOCKING SWITCHING

Non-blocking switching architecture for maximum throughput at wire speed

FANLESS DESIGN

Silent operation makes this switch perfect for noise-sensitive environments

VERSITILE MOUNTING OPTIONS

Install your switch on your desktop or mount it to your wall with the hardware provided in the box

ENERGY EFFICIENT

Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected Flex PoE
10G support No
Bandwidth 10 Gbit/s
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Broadcast storm control Yes
Certification CB, CE LVD, CSA
Copper ethernet cabling technology 1000BASE-T, 100BASE-T, 10BASE-T
DC input voltage 54 V
Depth 101 mm
Flow control support Yes
Form factor Desktop/Wall-Mounting
Full duplex Yes
Heat dissipation 3.24 BTU/h
Height 27 mm
Housing material Metal
IGMP snooping Yes
Input current 1.66 A
Jumbo frames support Yes
LED indicators Activity, Link, PoE, Power, Speed, Status
Link aggregation Yes
MAC address table 2000 entries
Mean time between failures (MTBF) 4113947 h
Networking standards IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Operating altitude 0 - 3000 m
Operating relative humidity (H-H) 0 - 90%
Operating temperature (T-T) 0 - 40 °C
Packet buffer memory 0.128 MB
Port mirroring Yes
Power consumption (max) 67.5 W
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 4
Power source AC/DC
Power supply included No
Quality of Service (QoS) support Yes
Quick start guide Yes
Rack mounting No
Rate limiting Yes
Source data-sheet Icecat.biz
Stackable No
Storage relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -20 - 70 °C
Store-and-forward Yes
Switch type Unmanaged
Total Power over Ethernet (PoE) budget 83 W
VLAN support Yes
Weight 400 g
Width 158 mm
Jumbo frames 9216
Power over Ethernet (PoE) power per port 30 W
Product colour Grey
DHCP features DHCP client
Fanless Yes
Compliance certificates CB, CE, Federal Communications Commission (FCC)

Specific References

EAN13
0606449174717

GS105PP-300EUS.pdf

NETGEAR GS105PP Data Sheet

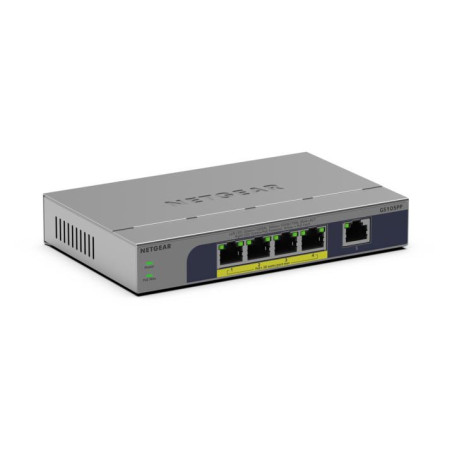

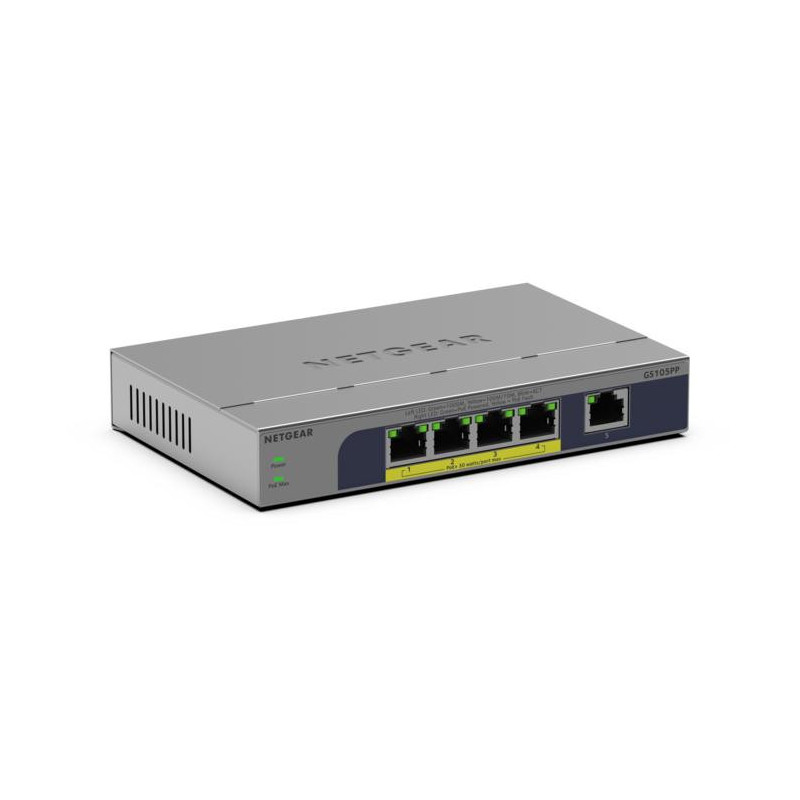

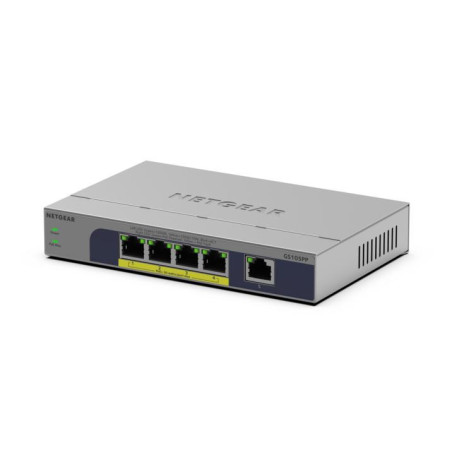

NETGEAR GS105PP

NETGEAR GS105PP, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Desktop/Wall-Mounting
In Stock
£112.38
£93.65 Ex. VAT
Reference: GS105PP-300EUS
Quantity
