Switching engineered for 1G AV over IP with versatile mounting options for under a table or behind a display. Pre-configured for out of the box functionality!
POWERFUL AV SWITCHES MADE SIMPLE
Pre-configured to get you up and running faster

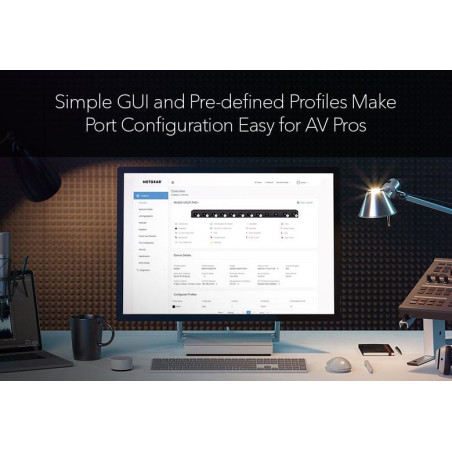

FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
POWERFUL AV SWITCHES MADE SIMPLE
Pre-configured to get you up and running faster
FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 200 - 240 V |
| Access Control List (ACL) | Y |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Y |
| Built-in processor | Y |
| Depth | 140 mm |
| Full duplex | Y |
| Heat dissipation | 559.555 BTU/h |
| Height | 40 mm |
| IGMP snooping | Y |
| Internal memory | 2048 MB |
| LED indicators | PoE,Power,Status |
| Link aggregation | Y |
| MAC address table | 16000 entries |
| Manual | Y |
| Multicast support | Y |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3x |
| Noise level | 30.06 dB |
| Non-operating altitude | 0 - 3000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power source | AC/DC |
| Power supply included | Y |
| Processor frequency | 1250 MHz |
| Processor model | ARM Cortex-A9 |
| Quality of Service (QoS) support | Y |
| Rack mounting | Yes |
| Rate limiting | Y |
| Spanning tree protocol | Y |
| SSH/SSL support | Y |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -20 - 70 °C |
| Store-and-forward | Y |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Switching capacity | 24 Gbit/s |
| Total Power over Ethernet (PoE) budget | 220 W |
| User guide | Y |
| VLAN support | Y |
| Weight | 967 g |
| Width | 210 mm |
| BPDU filtering/protection | Y |
| Loop protection | Y |
| Authentication | MAC-based authentication |
| Power over Ethernet (PoE) power per port | 30 W |
| Authentication type | RADIUS |
| Product colour | Black |
| IPv4 multicast entries | 2000 |
| Virtual LAN features | MAC address-based VLAN,Private VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN |
| DHCP features | DHCP Option 82,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 relay,DHCPv6 server,DHCPv6 snooping |
Specific References
- EAN13
- 0606449160222

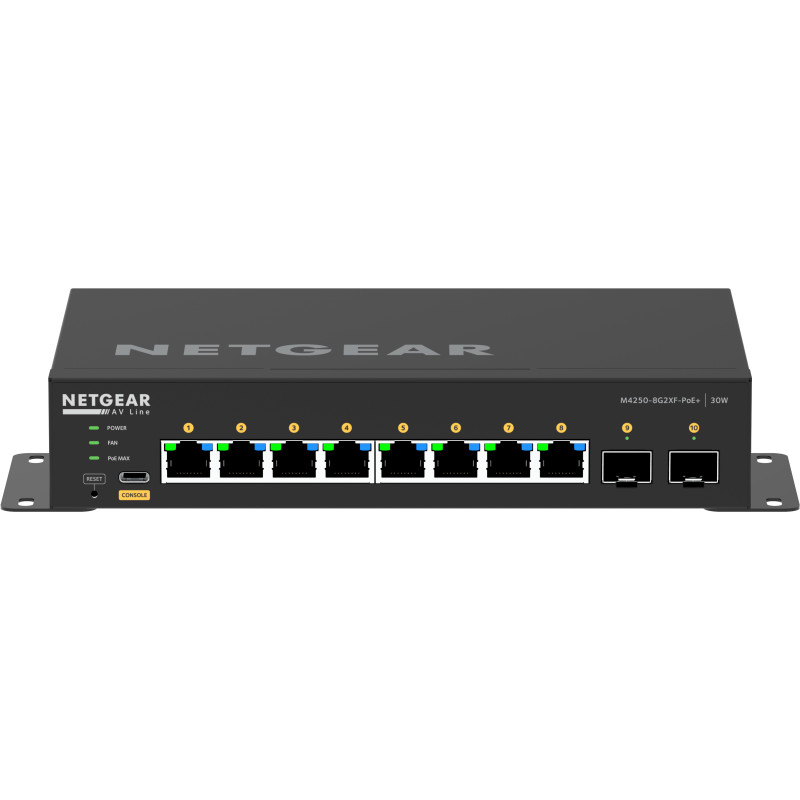

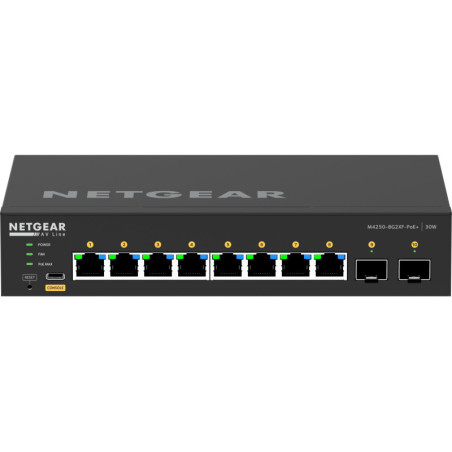

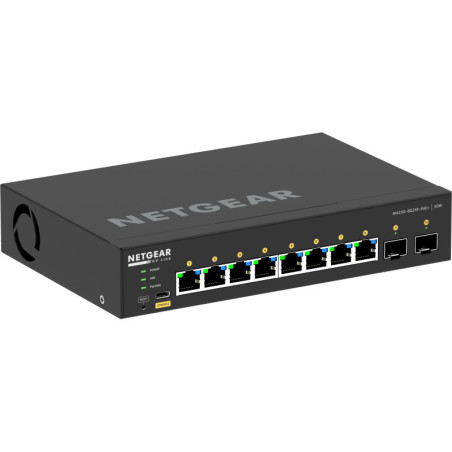

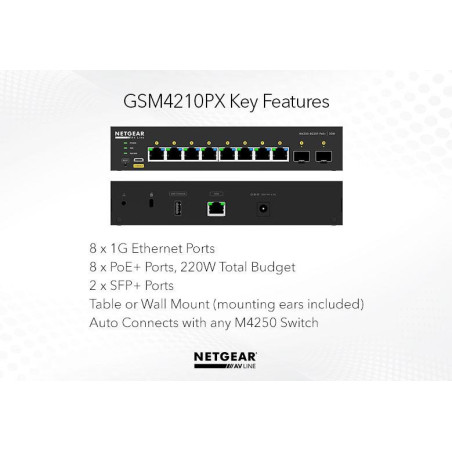

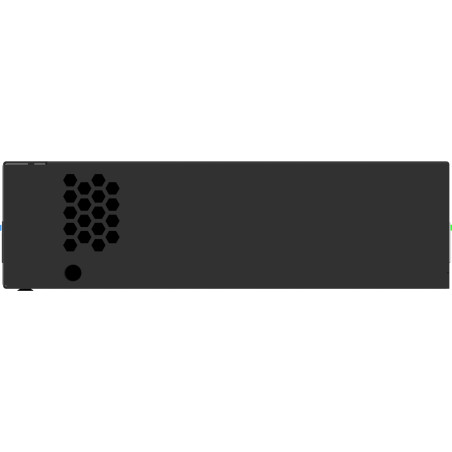

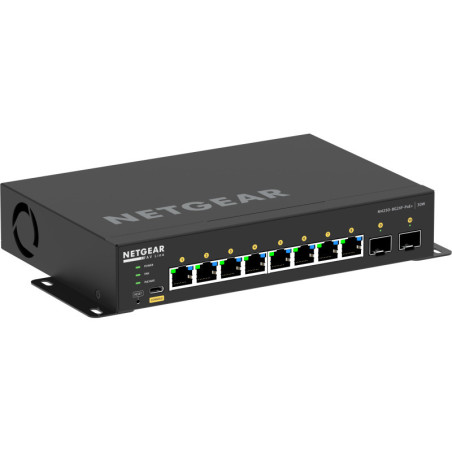

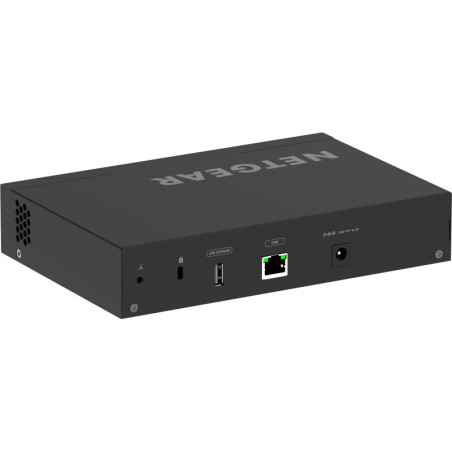

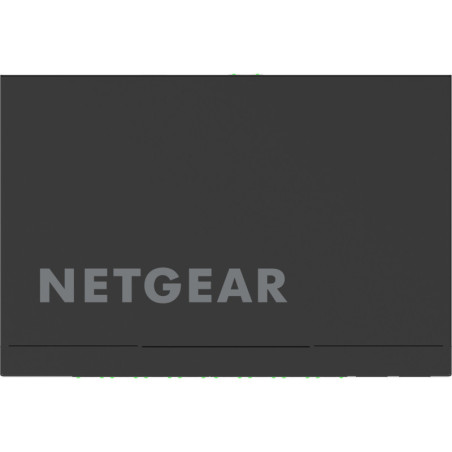

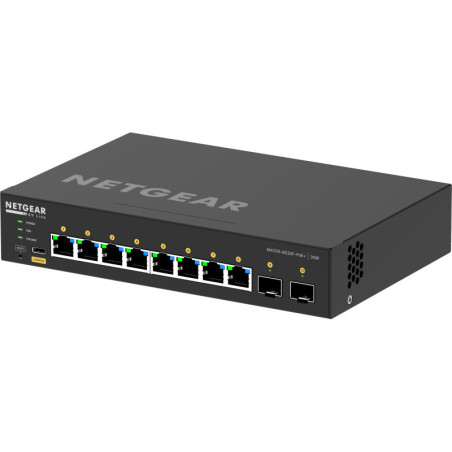

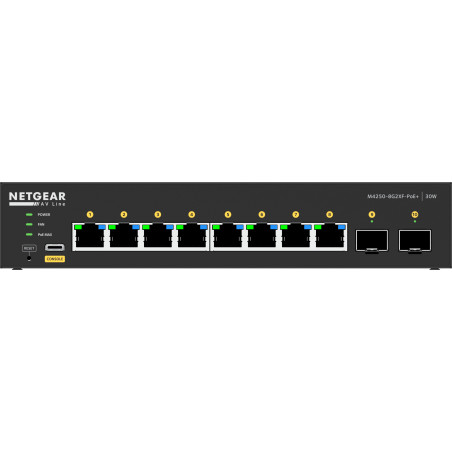

NETGEAR 8x1G PoE+ 220W and 2xSFP+ Managed Switch
8x1G PoE+ 220W and 2xSFP+ Managed Switch
£1,127.47
£939.56 Ex. VAT
8x1G PoE+ 220W and 2xSFP+ Managed Switch
