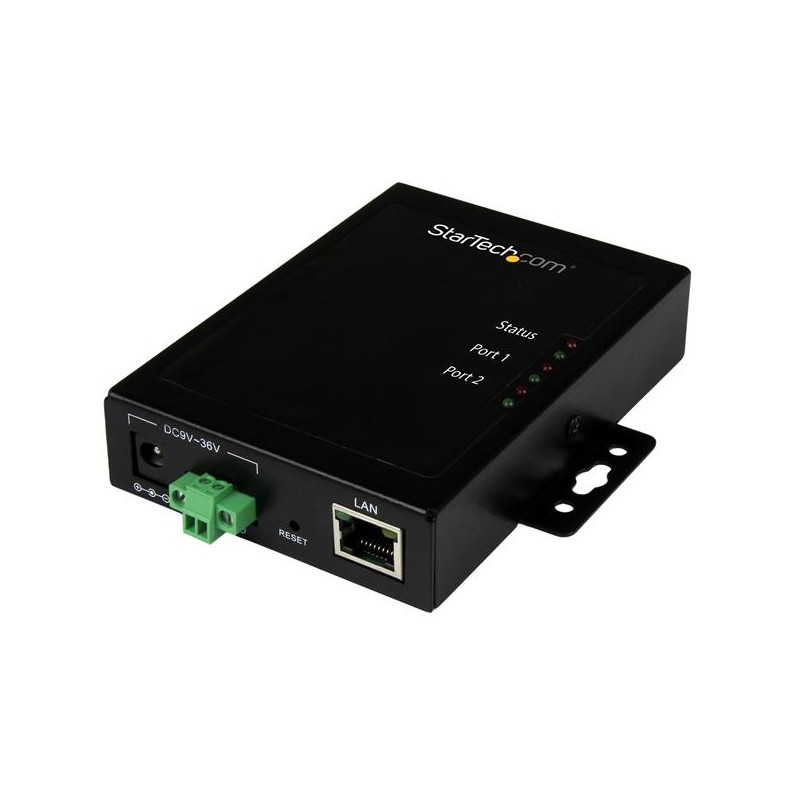

This 2-port serial device server is a cost-effective way to remotely connect to and manage two serial devices over your typical IP network. The device server integrates two RS232 ports into a rugged metal housing with an extended operating temperature range, so it’s perfect for factory and industrial settings.
Flexible installation, in a range of environments
If you’re looking for a reliable serial-over-IP control solution, then this device server can help. With a rugged metal housing and an extended operating temperature range, you can rest assured that the device server can deliver the reliable performance you need, even in harsh environments.
Plus, it features two integrated mounting brackets, so you can mount the device server to a surface or a wall as needed, for out-of-the-way installations.
Backup power keeps your devices connected
With redundant power input, this dual-port serial device server ensures seamless operation, even in the event of power dips or failures. It features a wide-range, terminal block power input (9~36V DC), and includes a universal power adapter.
Because it features two power inputs, if you experience a power disruption the device server automatically switches to its secondary power source. With redundant power input, the device server remains operational if one of the power sources fails, so you can continue to connect to and manage your serial devices when needed.
Completely customizable
This highly customizable device server is easy to configure to suit your application. For easy setup, Windows® users can use the provided Virtual COM port software, or the versatile Web-based interface.
The RS232 device server supports Telnet (an operating system independent communication protocol), so it can be integrated into mixed OS environments (Windows, Mac, Linux®). Plus, it supports VCOM, TCP, ICMP, IP, TCP, UDP, DHCP, and BOOTP protocols.
The NETRS2322P is backed by a StarTech.com 2-year warranty and free lifetime technical support.
AC adapter included |
Yes |
Auto MDI/MDI-X |
Yes |
Baud rate |
460.8 Kbit/s |
Cabling technology |
10/100Base-T(X) |
Certification |
CE, FCC |
Colour of product |
Black |
Compatible power plug types |
AU,EU,UK,US |
Data bits |
7,8 |
Dimensions (WxDxH) |
81 x 112 x 23 mm |
Electrostatic Discharge (ESD) protection |
15 kV |
Ethernet LAN (RJ-45) ports |
1 |
Ethernet LAN data rates |
10,100 Mbit/s |
Housing material |
Steel |
Input current |
1.5 |
Input voltage |
100 - 240 V |
LED indicators |
Activity,LAN,Link,Status |
Networking standards |
IEEE 802.3,IEEE 802.3u |
Operating relative humidity (H-H) |
20 - 80 % |
Operating temperature (T-T) |
0 - 85 °C |
Output current |
3 A |
Output voltage |
12 V |
Package height |
50 mm |
Package length |
215 mm |
Package weight |
685 g |
Package width |
148 mm |
Parity bit |
Even,Mark,Odd,Space |
Power source type |
AC |
RoHS compliance |
Yes |
Serial interface type |
RS-232 |
Serial ports quantity |
2 |
Server operating systems supported |
Windows Server 2008 R2,Windows Server 2012 |
Storage temperature (T-T) |
-45 - 130 °C |
Supported network protocols |
ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet |
User guide |
Yes |
Weight |
320 g |
Windows operating systems supported |
Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64 |
Flow Control type |
N,RTS/CTS,XON/XOFF |
Electrostatic Discharge (ESD) protection (air) |
15 kV |
Electrostatic Discharge (ESD) protection (contact) |
8 kV |
Remote management |
Yes |
Specific References
- EAN13
- 0065030864145
Download
StarTech.com 2-Port Serial-to-IP Ethernet Device Server - RS232 - Metal and Mountable Data Sheet
Download (217.1KB)
