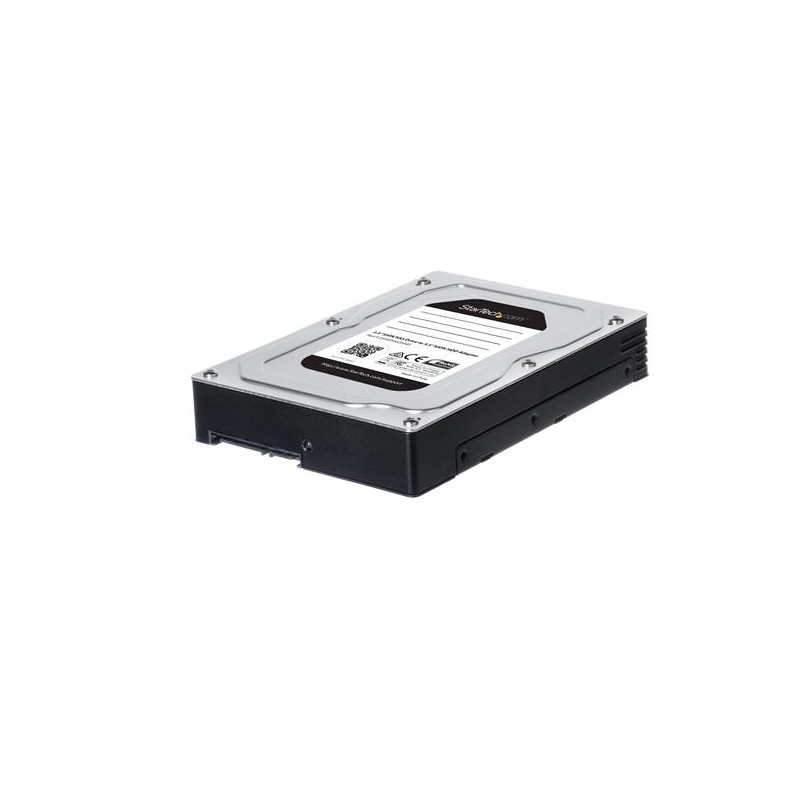

StarTech.com 2.5" to 3.5" Hard Drive Adapter - For SATA and SAS SSDs/HDDs
  • StarTech.com 2.5" to 3.5" Hard Drive Adapter - For SATA and SAS SSDs/HDDs
  • StarTech.com 2.5" to 3.5" Hard Drive Adapter - For SATA and SAS SSDs/HDDs
  • StarTech.com 2.5" to 3.5" Hard Drive Adapter - For SATA and SAS SSDs/HDDs
  • StarTech.com 2.5" to 3.5" Hard Drive Adapter - For SATA and SAS SSDs/HDDs
  • StarTech.com 2.5" to 3.5" Hard Drive Adapter - For SATA and SAS SSDs/HDDs
Turn almost any 2.5" SATA/SAS drive into a 3.5" drive

This 2.5" to 3.5" hard drive adapter lets you install a 2.5" SATA or SAS hard drive (HDD) or solid-state drive (SSD) into an internal or external 3.5" drive bay, using standard drive-mounting holes.

Convert a 2.5" drive into a 3.5" drive

The 2.5" to 3.5" hard drive bay adapter lets you install a newer, higher performance drive such as an SSD into a legacy system that may only support a 3.5" hard drive. It provides a cost-efficient way to enhance storage performance and reliability without expensive upgrades to core IT systems. It's also ideal for system administrators who want to build a system that takes advantage of the increased performance of a 2.5" HDD/SSD.

To utilize the full speed potential of your SATA/SAS drive, the adapter supports transfer speeds up to 6Gbps.

Easy and flexible installation

You can install the adapter into a desktop, server, storage-array, hot-swap bay, and drive drawer. It offers permanent installation in a 3.5" drive bay with standard mounting holes. When the adapter is installed, you simply slide a 2.5" HDD/SSD into the adapter enclosure, with no tools required.

The adapter is suitable for drives with a height of up to 15 mm. Virtually any 2.5" SATA/SAS drive can be made to look and function like a 3.5" drive.

Identify and track your drives

The adapter includes a label you can use to track and record information about the installed drive.

The 25SATSAS35HD is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Supports 2.5" form factor drives up to 15 mm in height
- Installs into an internal or external 3.5" drive bay; uses standard mounting holes for internal installs
- Tool-less 2.5" drive installation
Certification CE, FCC
Data transfer rate 6 Gbit/s
Depth 146 mm
Hard drive interface Serial ATA,Serial Attached SCSI (SAS)
Hard drive size 2.5 "
Height 26 mm
Hot-swap Y
Key lock N
Manual Y
Material Aluminium,Plastic
Number of hard drives supported 1
Operating relative humidity (H-H) 5 - 65 %
Operating temperature (T-T) -20 - 55 °C
Package dimensions (WxDxH) 112 x 160 x 35 mm
Package weight 252 g
RoHS compliance Y
Size 3.5 "
Storage temperature (T-T) 0 - 55 °C
Supported storage drive heights 7,9.5,12.5,15 mm
Type Carrier panel
Weight 252 g
Width 101 mm
S.M.A.R.T. support Y
Product colour Black,Silver

Specific References

EAN13
0065030874434

Download

25SATSAS35HD.pdf

StarTech.com 2.5" to 3.5" Hard Drive Adapter - For SATA and SAS SSDs/HDDs Data Sheet

Download (135.96KB)

StarTech.com 2.5" to 3.5" Hard Drive Adapter - For SATA and SAS SSDs/HDDs

StarTech.com 6.35 cm (2.5") to 8.89 cm (3.5") Hard Drive Adapter - For SATA and SAS SSDs/HDDs
In Stock
£26.60
Tax excluded
Reference: 25SATSAS35HD
Quantity
