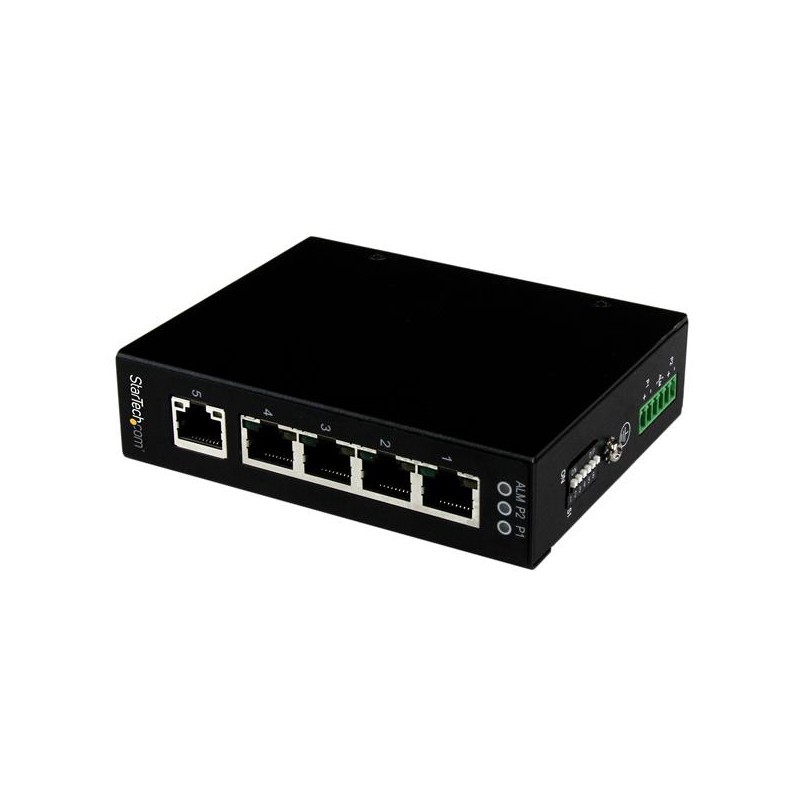

StarTech.com 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable

StarTech.com 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable Network Switch - Rugged IP30 Gigabit Switch

More details

IES51000

In Stock

Network up to 5 Ethernet devices through a rugged, industrial Gigabit Ethernet switch - DIN / Wall Mountable The IES51000 ... Read More

Free tester with every 5 boxes of cable

New product

£130.59 Inc. VAT

£108.83

Checkout

  • More Info

  • Details

  • Spec Sheet

Network up to 5 Ethernet devices through a rugged, industrial Gigabit Ethernet switch - DIN / Wall Mountable

The IES51000 5-Port Industrial Ethernet Switch offers 5 Gigabit Ethernet ports in a compact, IP30-rated metal enclosure, making it the ideal network solution for harsh industrial environments such as factory floors, warehouses or large junction boxes.

Quickly connect your network devices with little to no configuration. This unmanaged industrial network switch supports 10/100/1000 Mbps transfer speeds, full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX, which helps to eliminate the hassle of troubleshooting mis-matched speed and duplex settings.

Providing seamless operation in the event of power dips or failures, the switch features redundant 12-58V DC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.

For easy installation and dependable performance in harsh environments, the switch can be DIN Rail or wall mounted and features a compact, IP30-rated enclosure with an extended operating temperature range (-40°C to 75°C).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Seamless performance even in harsh industrial conditions, with an extended temperature range and an IP30-rated enclosure
- Maintain device operation during power disruptions, with redundant power inputs
- Install the switch exactly where you need it, using the included DIN Rail & wall-mount brackets
10G supportNo
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Buffer size128 KB
CertificationCE, FCC, RoHS
Colour of productBlack
DC-in jackYes
Depth112.2 mm
Full duplexYes
Height29.1 mm
Housing materialSteel
Input voltage12 - 58 V
International Protection (IP) codeIP30
Jumbo frames supportYes
LED indicatorsActivity,Link,Power
ManualYes
Maximum cable length100 m
Networking standardsIEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)-40 - 75 °C
Package depth174 mm
Package height77.3 mm
Package weight480 g
Package width141 mm
Power consumption (typical)3.63 W
Power over Ethernet (PoE)No
Power over Ethernet (PoE) supportNo
Storage temperature (T-T)-40 - 85 °C
Store-and-forwardYes
Switch typeUnmanaged
Switching capacity2 Gbit/s
Wall mountableYes
Wall mounting kitYes
Weight329 g
Width89.4 mm
EAN0065030859318
ManufacturerStarTech.com
