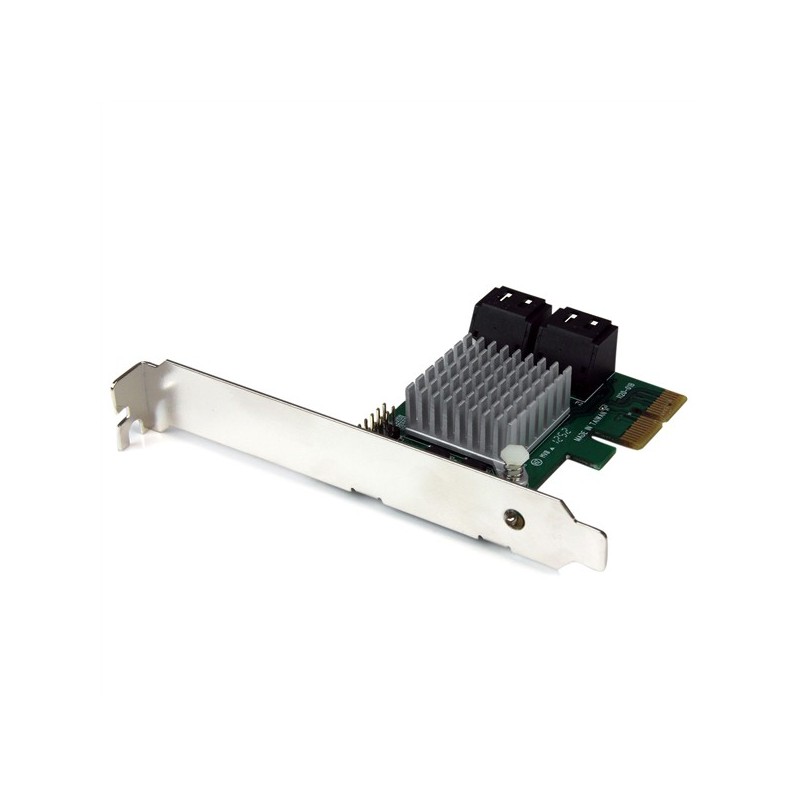

The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs).
Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.)
The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support.
This PCIe SATA 6gbps card is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Leverage SSD performance and standard HDD capacity with HyperDuo technology
- Maximize system capability with SATA III connection speeds
- Fit any standard or low profile chassis with included brackets
Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.)
The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support.
This PCIe SATA 6gbps card is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Leverage SSD performance and standard HDD capacity with HyperDuo technology
- Maximize system capability with SATA III connection speeds
- Fit any standard or low profile chassis with included brackets
| Compatible operating systems | Windows ® 8 (32/64-bit), 7 (32/64), Vista (32/64), XP (32/64) Windows Server ® 2003 (32/64) Mac OS 10.6-10.8 Linux |
| Data transfer rate | 6 Gbit/s |
| Dimensions (WxDxH) | 120 x 70 x 20 mm |
| Mac compatibility | Yes |
| Operating relative humidity range | 20 - 80 % |
| Operating temperature range (T-T) | 5 - 50 °C |
| Ports quantity | 4 |
| Relative humidity | 20 - 80 % |
| Storage temperature range (T-T) | -25 - 70 °C |
| Supported hard disk drive interfaces | Serial ATA, Serial ATA III |
| Total storage capacity | 16000 GB |
| Weight | 50 g |
Specific References
- EAN13
- 0065030849951
StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering
StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering - PCIe SATA 3 Controller Adapter
