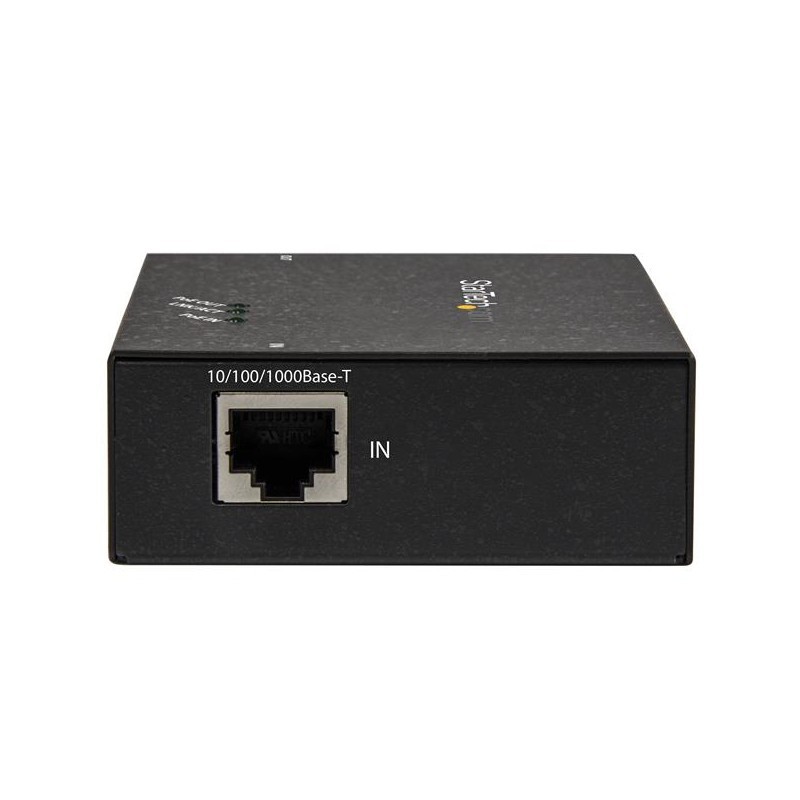

This Gigabit PoE+ extender spans your Power over Ethernet (PoE) device over longer distances, letting you double the 100m limitations of a traditional PoE infrastructure.
Now you can connect your Gigabit PoE device up to a maximum of 200m away, so it’s easy to install a remote IP camera or access point. Plus the extender can be daisy-chained for more scalability.
Unrestricted PoE+ range and convenience
Need more distance? This convenient PoE+ repeater maximizes range and flexibility by extending your PoE connection by an extra 100m (330ft), while providing 24-watt power output to compatible devices.
Simply connect the extender to your power sourcing equipment (PSE) and your PoE-powered device (PD) and you’re all set. The extender is compliant with the 802.3at/af standard, so it will work with existing PSE, such as a StarTech.com PoE+ injector (POEINJ1G) or PoE+ switch (IES81000POE).
Daisy chain for longer distance and flexibility
Still need more distance? If an extra 100m isn’t enough, this full-featured PoE extender offers daisy chain capability.
You can easily connect four extenders together, letting you install your PoE+ PD up to 500m (1640ft) away. It’s perfect for business, education, and retail environments (output wattage is dependent on the number of daisy-chained extenders used).
Convenient installation options and durable construction
Get up and running quickly. This Gigabit PoE+ extender can be positioned right where you need it, with a wall-mountable design that requires no external power adapter.
You can enjoy reliable performance with little worry of downtime or failure, the extender features a rugged metal housing with built-in ESD and surge protection.
The POEEXT1GAT is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Cabling technology |
10/100/1000Base-T(X) |
Certification |
CE, FCC |
Colour of product |
Black |
Data transfer rate |
2000 Mbit/s |
Full duplex |
Yes |
Height |
25 mm |
Jumbo frames support |
No |
LED indicators |
Activity, Link, PoE |
Manual |
Yes |
Maximum transfer distance |
100 m |
Mean time between failures (MTBF) |
50000 h |
Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
Operating relative humidity (H-H) |
5 - 95 % |
Operating temperature (T-T) |
0 - 50 °C |
Power over Ethernet (PoE) support |
Yes |
RoHS compliance |
Yes |
Type |
Repeater |
Weight |
188 g |
Width |
69 mm |
Specific References
- EAN13
- 0065030860895
