Duplicate one SATA Hard Drive onto three Hard Drives simultaneously

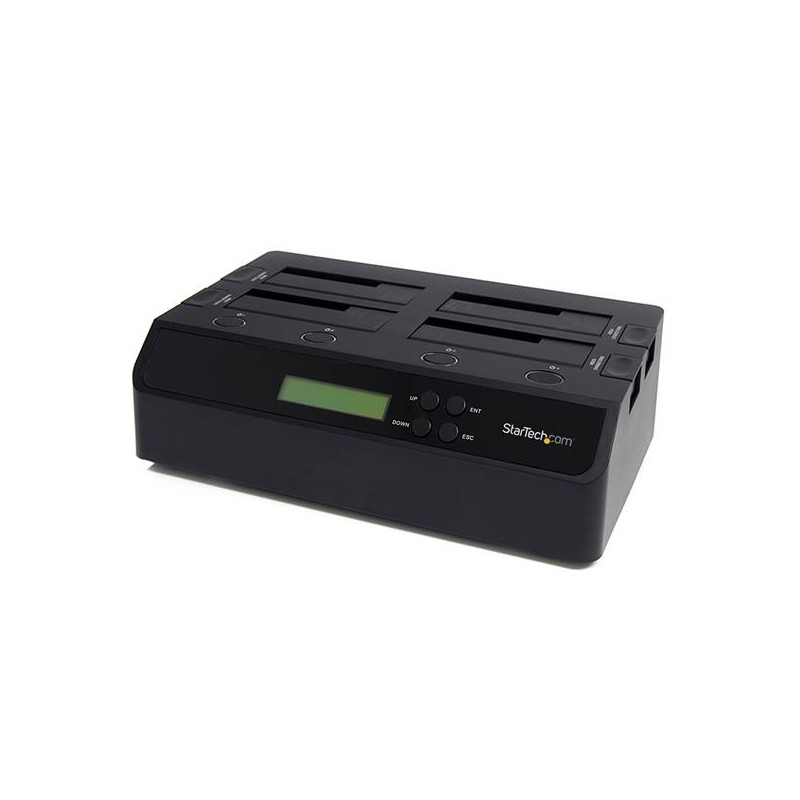

The SATDOCK4U3RE USB 3.0 and eSATA 1-to-3 Hard Drive Duplicator docking station enables you to duplicate/clone a single SATA hard drive to up to three other SATA drives simultaneously, as a standalone device. The duplicator can also function as a regular 4-bay hard drive docking station, by connecting to a host computer system. Large capacity drives (tested with up to 4TB 3.5" and 1TB 2.5" drives per bay) can be used to greatly enhance your computer's storage/backup capabilities.
Able to perform 1:3 sector duplication, including HPA, from a single SATA drive onto three others simultaneously (at a rate of up to 72 MBps), the duplicator/docking station can save you time and effort. As an external HDD dock, it can be connected to your host computer through USB 3.0 or eSATA, providing data transfer speeds up to 5 Gbps or 3Gbps respectively, from the hard drives to your computer system.
Features Quick and Secure Erase functions and support for IDE hard drives using the included SATA to IDE hard drive adapter (SAT2IDEADP).
The StarTech.com Advantage
- Create 3 exact copies of a source SATA drive simultaneously, without having to connect to a computer
- Access up to 4 SATA hard drives simultaneously over a single USB 3.0 or eSATA connection
- Dual, variable speed fans allows you to adjust the amount of cooling for any kind of environment or drive type
AC adapter included |
Yes |
AC input voltage |
110-240 V |
Cables included |
SATA,USB,eSATA |
Certification |
CE |
Chipset |
JMicron - JMB394 + JMS539 |
Colour of product |
Black |
Compatible operating systems |
|
Dimensions (WxDxH) |
285 x 170 x 94 mm |
Display |
LCD |
Duplicator operating modes |
copy |
Fan diameter |
60 mm |
Housing material |
Plastic |
Interface |
USB/eSATA |
LED indicators |
Activity,Power |
Manual |
Yes |
Maximum supported storage capacity |
16 TB |
Number of fans |
2 fan(s) |
Number of simultaneous copies |
3 copies |
Operating relative humidity (H-H) |
8 - 90 % |
Operating temperature (T-T) |
5 - 80 °C |
Output current |
6.5 A |
Output voltage |
12 V |
Package height |
220 mm |
Package length |
340 mm |
Package weight |
2500 g |
Package width |
170 mm |
Plug and Play |
Yes |
Port multiplier |
Yes |
Power consumption (typical) |
78 W |
Product type |
HDD duplicator |
RoHS compliance |
Yes |
Storage temperature (T-T) |
-40 - 70 °C |
Supported hard disk drive interfaces |
Serial ATA,Serial ATA II |
Supported hard disk drive sizes |
2.5,3.5 " |
USB connector type |
USB Type-B |
Weight |
1100 g |
Included power plug types |
EU,NA,UK |
Specific References
- EAN13
- 0065030843881
StarTech.com 4 Bay USB 3.0 eSATA to SATA Standalone 1:3 HDD Hard Drive Duplicator Dock Data Sheet
