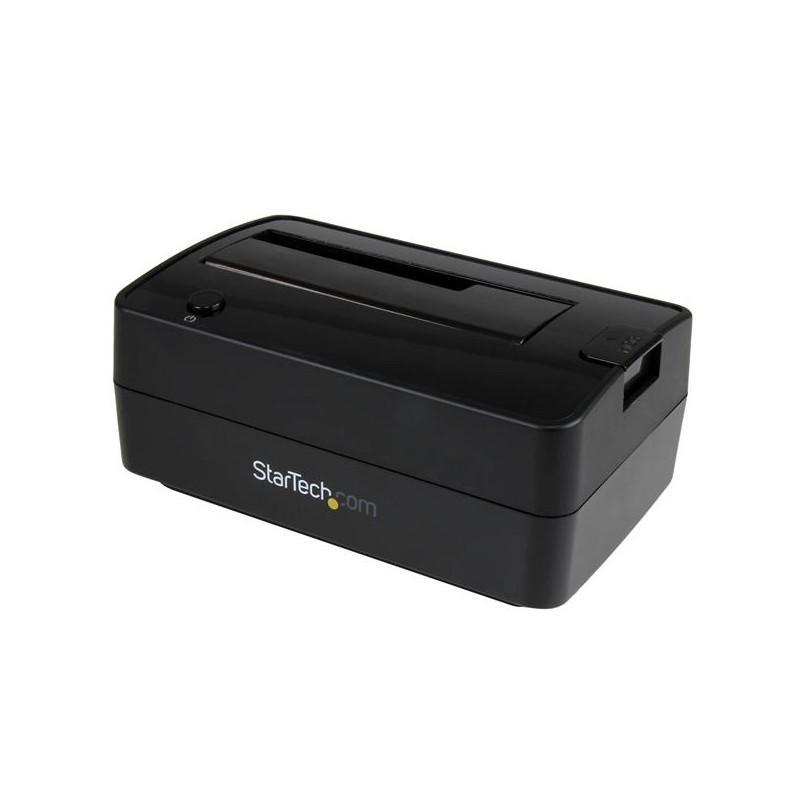

StarTech.com Drive Docking Station for 2.5 / 3.5" SATA Drives - USB 3.1 (USB-A, USB-C) or eSATA
  • StarTech.com Drive Docking Station for 2.5 / 3.5" SATA Drives - USB 3.1 (USB-A, USB-C) or eSATA
  • StarTech.com Drive Docking Station for 2.5 / 3.5" SATA Drives - USB 3.1 (USB-A, USB-C) or eSATA
  • StarTech.com Drive Docking Station for 2.5 / 3.5" SATA Drives - USB 3.1 (USB-A, USB-C) or eSATA
  • StarTech.com Drive Docking Station for 2.5 / 3.5" SATA Drives - USB 3.1 (USB-A, USB-C) or eSATA
  • StarTech.com Drive Docking Station for 2.5 / 3.5" SATA Drives - USB 3.1 (USB-A, USB-C) or eSATA
  • StarTech.com Drive Docking Station for 2.5 / 3.5" SATA Drives - USB 3.1 (USB-A, USB-C) or eSATA
  • StarTech.com Drive Docking Station for 2.5 / 3.5" SATA Drives - USB 3.1 (USB-A, USB-C) or eSATA
  • StarTech.com Drive Docking Station for 2.5 / 3.5" SATA Drives - USB 3.1 (USB-A, USB-C) or eSATA
  • StarTech.com Drive Docking Station for 2.5 / 3.5" SATA Drives - USB 3.1 (USB-A, USB-C) or eSATA
Connect and access any 2.5" or 3.5" SATA hard drive or SSD using this single-drive docking station, over a USB 3.1 Gen 2 (up to 10Gbps) or eSATA connection.



Supports USB 3.1 Gen 2 and eSATA for flexible use

Ideal for IT professionals, the docking station lets you access a SATA solid-state drive or hard drive quickly, for drive imaging, data recovery, and backups.



You can connect through either USB 3.1 Gen 2 or eSATA, and take advantage of the high performance of the latest SSDs and HDDs.



Top-loading design for easy drive access

The dock's vertical drive insertion makes it easy to dock and swap drives from your desktop computer or laptop. You simply insert your SSD or HDD into the drive slot at the top of the docking station, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.



Convenient compatibility

The single-bay docking station comes with a USB Type-A to Type-C cable, for connecting to newer USB-C enabled devices. It also comes with a USB Type-A to Type-B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. An eSATA cable is also included with the dock.



The docking station is also UASP compatible, for enhanced performance.



The SDOCKU313E is backed by a StarTech.com 2-year warranty and free lifetime technical support.
AC adapter includedYes
AC input voltage110-240 V
Cables includedUSB,eSATA
CertificationCE, FCC
ChipsetASMedia - ASM1351
Colour of productBlack
DC-in jackYes
Depth145 mm
eSATA ports quantity1
FanNo
Height65.2 mm
Host interfaceUSB 3.1 (3.1 Gen 2) Type-B
Hot-swapYes
Input current0.6 A
LED indicatorsActivity,Power
MaterialPlastic
Maximum data transfer rate10 Gbit/s
Maximum storage capacity6 TB
Number of storage drives supported1
Operating relative humidity (H-H)20 - 80 %
Operating temperature (T-T)5 - 35 °C
Output current2 A
Output voltage12 V
Package dimensions (WxDxH)90 x 160 x 170 mm
Package weight850 g
Plug typeType M
Quick installation guideYes
RoHS complianceYes
Storage drive interfaceSerial ATA,Serial ATA II,Serial ATA III
Storage drive sizes supported2.5,3.5 "
Storage media typeHDD,SSD
Storage temperature (T-T)-20 - 50 °C
UASP supportYes
Weight500 g
Width93 mm
Included power plug typesAU,EU,NA,UK

SDOCKU313E.pdf

StarTech.com Drive Docking Station for 2.5 / 3.5" SATA Drives - USB 3.1 (USB-A, USB-C) or eSATA Data Sheet

Download (139.9k)
