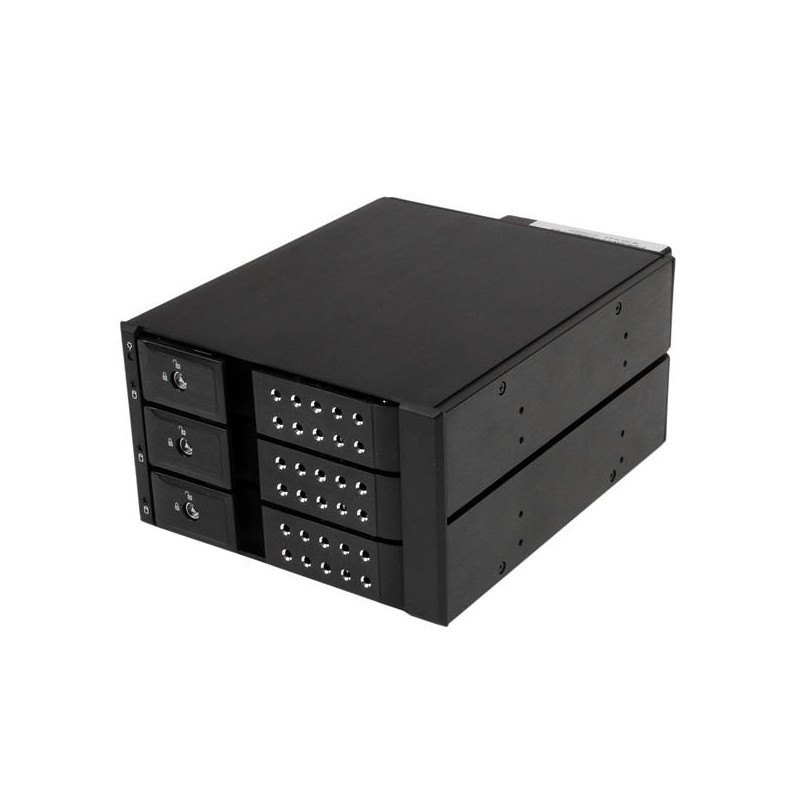

The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.
The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Delivers peak drive performance, with support for full SATA III/SAS II data transfer speeds up to 6Gbps
- Flexible drive options with support for both SATA and SAS drive interfaces
- Helps maintain ideal drive operating temperatures by providing excellent heat dissipation, vented aluminum housing and a built-in fan
Colour of product |
Black |
Data transfer rate |
6 Gbit/s |
Depth |
194.1 mm |
Hot-swap drive bays |
Yes |
Internal |
No |
LED indicators |
Activity, Power |
Number of fans |
1 |
Operating temperature (T-T) |
0 - 55 °C |
RoHS compliance |
Yes |
Storage drive interface |
Serial ATA, Serial ATA II, Serial ATA III, Serial Attached SCSI |
Storage drive size |
3.5 " |
Storage drives installed |
No |
Storage temperature (T-T) |
-20 - 60 °C |
Supported storage drive types |
HDD |
Specific References
- EAN13
- 0065030855297
