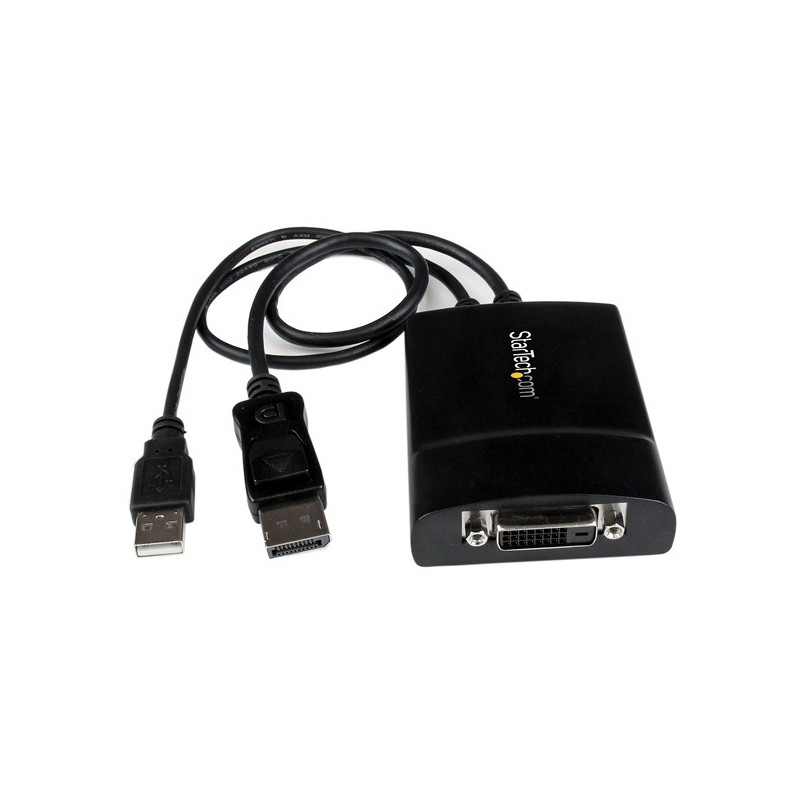

The DP2DVID2 DisplayPort® to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.
The adapter supports high resolution video (up to 2560x1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook®.
DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren't capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Back by StarTech.com 2-year warranty, with free lifetime technical support.
The StarTech.com Advantage
- Eliminates cost by making your DisplayPort video output compatible with an older, DVI-D (dual link) display
- Suitable for DisplayPort video cards not capable of outputting DVI signals (i.e. single mode DisplayPort)
Certification |
RoHS |
Colour of product |
Black |
Connector 1 |
DisplayPort/USB A |
Gender type |
Male/Female |
Height |
22 mm |
Material |
Plastic |
Maximum resolution |
2560 x 1600 pixels |
Operating temperature range (T-T) |
0 - 45 °C |
Source data-sheet |
Icecat.biz |
Storage temperature range (T-T) |
-20 - 70 °C |
Weight |
0.11 kg |
Specific References
- EAN13
- 0065030848749
