Manhattan 507585
  • Manhattan 507585
  • Manhattan 507585
  • Manhattan 507585
  • Manhattan 507585
  • Manhattan 507585
  • Manhattan 507585
  • Manhattan 507585

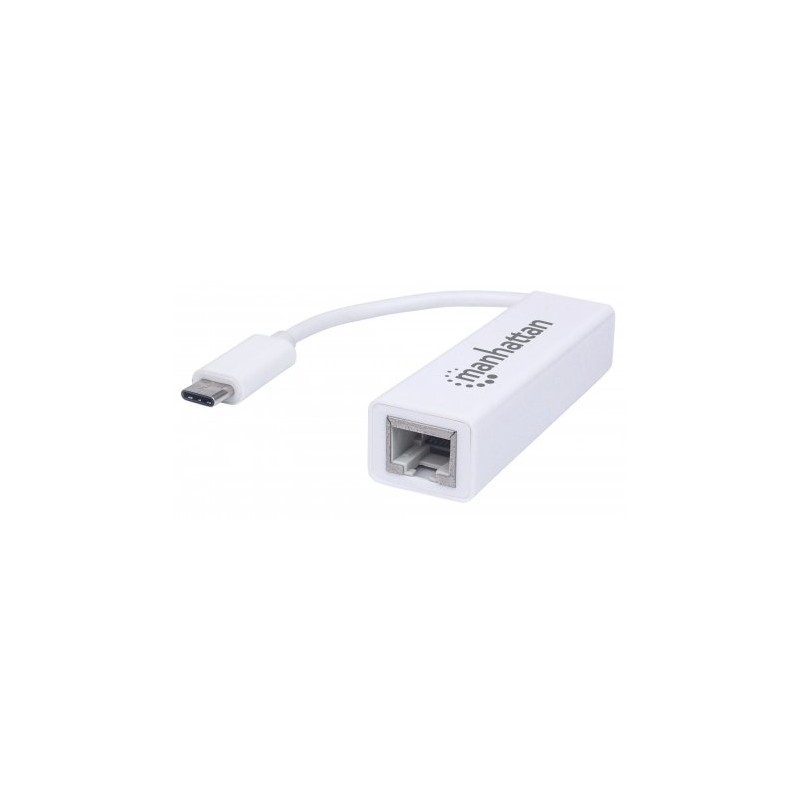

The Manhattan USB-C to Gigabit Network Adapter is a compact, high-performance network adapter that allows you to upgrade your desktop or notebook computer to operate at 10/100/1000 Mbps speeds on the LAN.



Type-C Connectivity

USB Type-C, the new, tiny physical connector, is already widely used in new Ultrabooks, Chromebooks and the 2015 Apple MacBook. It's projected to push full force into the mainstream in 2017. Its biggest advantage is the reversible design. Plug in the connector with either side facing up and you will never risk damaging the USB port again. USB Type-C is here to stay, and the Manhattan Type-C to Gigabit Network Adapter is the perfect companion for your Type-C-enabled devices.



Fast and Frugal

The Manhattan USB-C to Gigabit Network Adapter is equipped with a fully auto-sensing Gigabit LAN port capable of delivering a peak performance of 2 Gbps in full-duplex mode. It delivers exceptional performance for everyone who requires an ultra-fast and solid network connection. The latest in power-saving technology ensures the hub does not drain the battery of your computer in the process.



Auto-Negotiation

The USB-C Gigabit Adapter will automatically detect the network speed that the LAN switch port is set to and run at the same speed. The adapter supports 10Base-T Ethernet, 100Base-TX and 1000Base-T Gigabit Ethernet.



Full Duplex

When running in full duplex mode, the USB-C to Gigabit Ethernet Adapter connects at the following link speeds: 20 Mbps (10Base-T Ethernet), 200 Mbps (100Base-TX Fast Ethernet) and 2 Gbps (1000Base-T Gigabit Ethernet).



Portable Design

The Manhattan USB-C to Gigabit Network Adapter is compact and can be easily used from one computer to another or transferred in your notebook case as you travel. It doesn’t take up a lot of space or add clutter to your work area.



Your device has a Type-C port? Then the Manhattan USB-C to Gigabit Network Adapter is for you!

From Windows®-based Ultrabooks (like the Dell™ XPS or Acer® Aspire series) to Chromebooks™, and Apple Macbooks® to laptops and desktop PCs, as long as your device features a standard USB Type-C™ connector, you are good to go.
Cabling technology10/100BaseT(X)
CertificationFCC B, CE
Connectivity technologyWired
Data transfer rate (max)100 Mbit/s
Depth68 mm
Drivers includedY
Ethernet LANY
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
Full duplexY
Height16 mm
Host interfaceUSB C
InterfaceEthernet
InternalN
Jumbo frames supportY
Mac operating systems supportedMac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks
ManualY
Networking standardsIEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u
Operating temperature (T-T)0 - 70 °C
Other operating systems supportedChrome
Quantity1
RoHS complianceY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-10 - 80 °C
USB poweredY
USB version3.0 (3.1 Gen 1)
VLAN taggingY
Wake-on-LAN readyY
Weight145 g
Width22 mm
Windows operating systems supportedWindows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home
Jumbo frames4000
Product colourWhite

507585.pdf

Manhattan 507585 Data Sheet

Download (448.95k)

Manhattan 507585

USB C - RJ-45, 100Base-TX, 68 x 22 x 16 mm, 145 g

507585

In Stock

£35.15
£29.29 Ex VAT.
