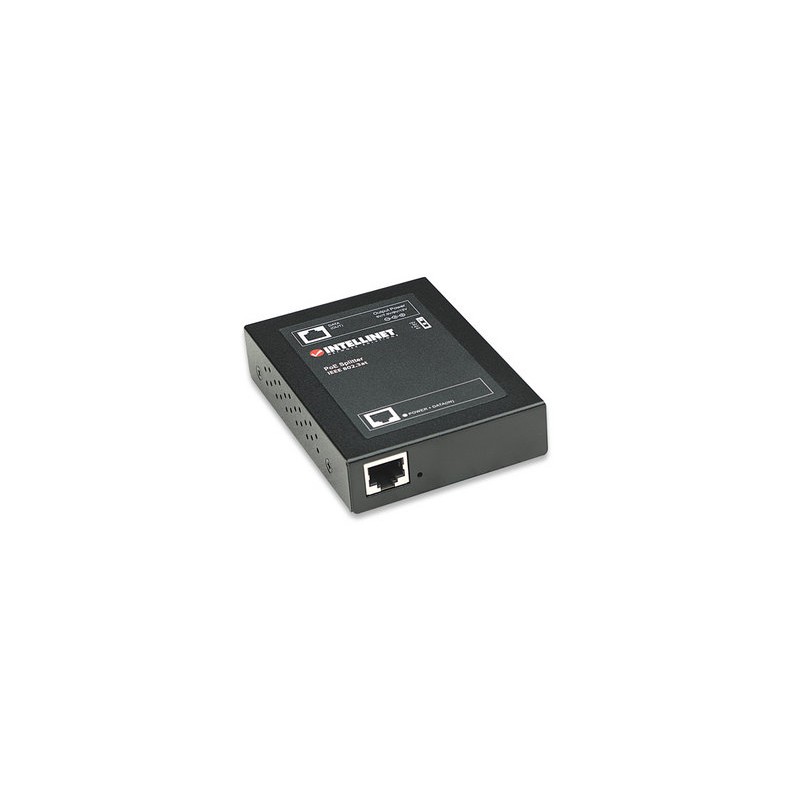

Intellinet 560443 Power over Ethernet (PoE) Black network splitter
  • Intellinet 560443 Power over Ethernet (PoE) Black network splitter
  • Intellinet 560443 Power over Ethernet (PoE) Black network splitter
  • Intellinet 560443 Power over Ethernet (PoE) Black network splitter
  • Intellinet 560443 Power over Ethernet (PoE) Black network splitter
  • Intellinet 560443 Power over Ethernet (PoE) Black network splitter
  • Intellinet 560443 Power over Ethernet (PoE) Black network splitter
  • Intellinet 560443 Power over Ethernet (PoE) Black network splitter
  • Intellinet 560443 Power over Ethernet (PoE) Black network splitter
The intellinet network solutions PoE+ Splitter allows you to deliver both data and electrical power to non-PoE Ethernet-enabled products using the Cat5 Ethernet cable. Using the PoE Splitter, you can take advantage of Power over Ethernet and place Ethernet-enabled products, such as Network Cameras and Wireless Access Points*, where power outlets are not readily available.



Simplify Installation for an Ethernet-based Device

Having to manage only an Ethernet cable simplifies the physical installation of the device. Without having to worry about the availability of a power source, you can mount Ethernet-enabled products on a ceiling or outdoors, up to 100m (328 feet)** from a power source. The PoE Splitter is simple to install and requires no tools or software.



802.3af Compliant Power over Ethernet

The PoE Splitter can be used to complement any PoE injector unit or midspan switch to provide small to medium-sized businesses a complete end-to-end PoE solution. This unit supports 802.3af and 802.3at, ensuring compatibility with other 802.3af/t PoE-compliant injector units or PSE switches.



Adjustable Power Output

During the setup, the PoE Splitter can be set to power any compatible 5 V, 7.5 V, 9 V or 12 V Ethernet-enabled device via the volt selector located on the side.
Cabling technology 10Base-T, 100Base-TX
Colour of product Black
Compliance industry standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u
Depth 102 mm
Ethernet LAN (RJ-45) ports 2
Height 22 mm
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 60 °C
Output power 25.4 W
Output voltage 12 V
Power LED N
Power over Ethernet (PoE) Yes
Quantity 1
Safety FCC, CE
Storage temperature (T-T) -20 - 90 °C
Weight 240 g
Width 74 mm

Specific References

EAN13
1320010373079

Intellinet 560443

PoE+, Fast Ethernet, 0.24kg, black
In Stock
£61.71
£51.42 Ex. VAT
Reference: 560443
Quantity
