Switch and meter outlets & IT equipment across A and B feed: Combines both Switched and Metered Outlet functionality together in 1 ePDU
ePDU G3 Managed models allow complete lights-out control and metering of devices including devices powered across multiple ePDUs. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
ePDU G3 Managed models allow complete lights-out control and metering of devices including devices powered across multiple ePDUs. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
| AC outlet types | C13 coupler,C19 coupler |
| AC outlets quantity | 16 AC outlet(s) |
| Colour of product | Black |
| Dimensions (WxDxH) | 225 x 87 x 445 mm |
| Ethernet LAN (RJ-45) ports | 1 |
| Input frequency | 50 Hz |
| Maximum current | 32 A |
| Maximum power | 7000 W |
| Mounting | Horizontal/Vertical |
| Nominal input voltage | 230 V |
| PDU types | Managed |
| Power plug | IEC 60309 |
| Rack mounting | 2u |
| RoHS compliance | Y |
| Serial ports quantity | 1 |
| Type | Single-phase |

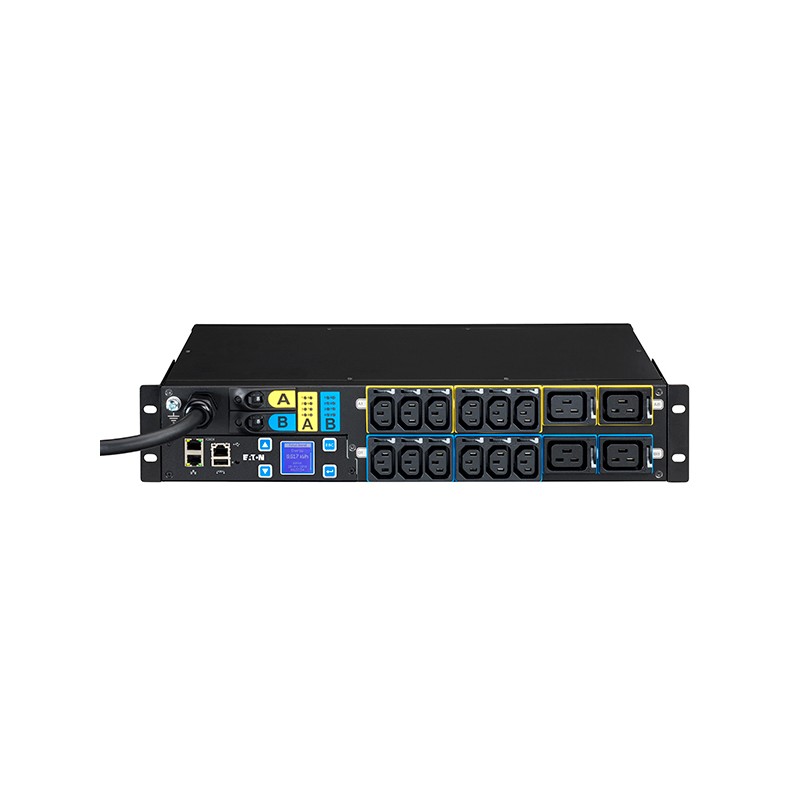

Eaton EMAH06
EMAH06 - MA 2U (309 32A 1P) 12XC13: 4xC19
£1,209.37
£1,007.81 Ex. VAT
EMAH06 - MA 2U (309 32A 1P) 12XC13: 4xC19
