Cisco 1000BASE-LX/LH Long Wavelength; Rugged
The industry-standard Cisco® Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network (Figure 1). SFPs can be used and interchanged on a wide variety of Cisco products and can be intermixed in combinations of 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.



1000BASE-LX/LH SFP for Both Multimode and Single-Mode Fibers

The 100BASE-LX/LH SFP, compatible with the IEEE 802.3z 1000BASE-LX standard, operates on standard single-mode fiber-optic link spans of up to 10 km and up to 550 m on any multimode fibers.
Cabling technology100BASE-LX/LH
Connectivity technologyWired
Connector(s)LC-PC
Data transfer rate (max)1000 Mbit/s
Dimensions (WxDxH)13.4 x 56.5 x 8.5 mm
Fiber typeMMF/SMF
InterfaceSFP
Maximum transfer distance10000 m
Operating temperature (T-T)-40 - 85 °C
Storage temperature (T-T)-40 - 85 °C
Storage temperature range (T-T)-40 - 85 °C
Transmit power-3 - -9.5 dBmW
Weight75 g

Similar products

  • Cisco DS-SFP-GE-T
    Cisco DS-SFP-GE-T
  • Cisco OC-3/STM-1 Pluggable Multi-Mode Fibre (2 km) Transceiver Module multi-mode fibre
    Cisco OC-3/STM-1 Pluggable Multi-Mode...
  • Cisco 10 Gigabit Ethernet ZR (80 km) Optics
    Cisco 10 Gigabit Ethernet ZR (80 km) Optics
  • Cisco CWDM 1550 NM SFP Gigabit Ethernet and 1G/2G FC
    Cisco CWDM 1550 NM SFP Gigabit Ethernet...
  • Cisco OC-3/STM-1 SFP, SM, IR-1
    Cisco OC-3/STM-1 SFP, SM, IR-1

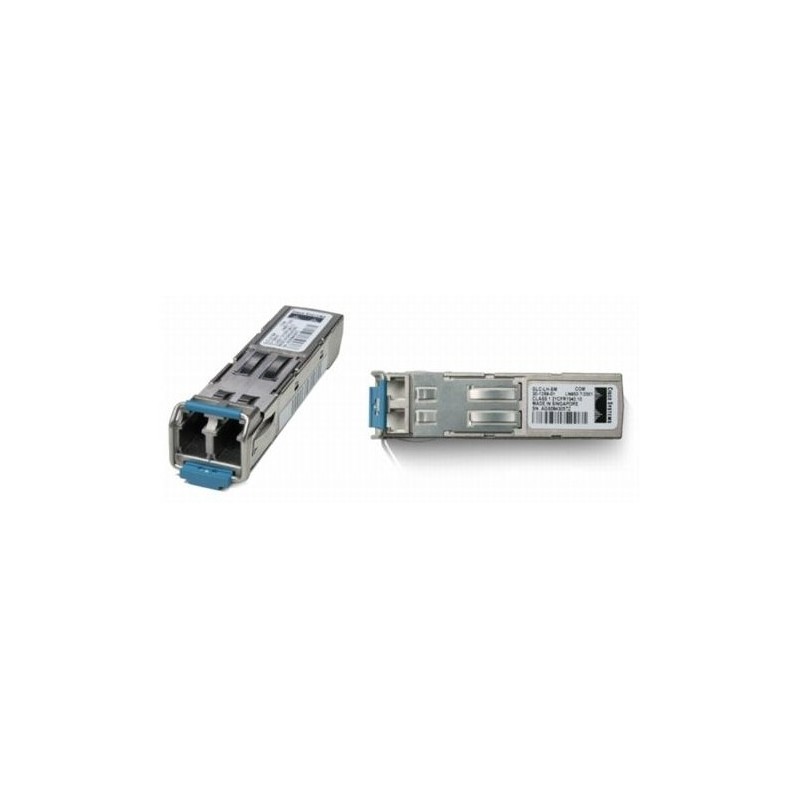

Cisco 1000BASE-LX/LH Long Wavelength Rugged

1000BASE-LX/LH Long Wavelength; Rugged

GLC-LX-SM-RGD=

In Stock

£998.06
£831.72 Ex VAT.
