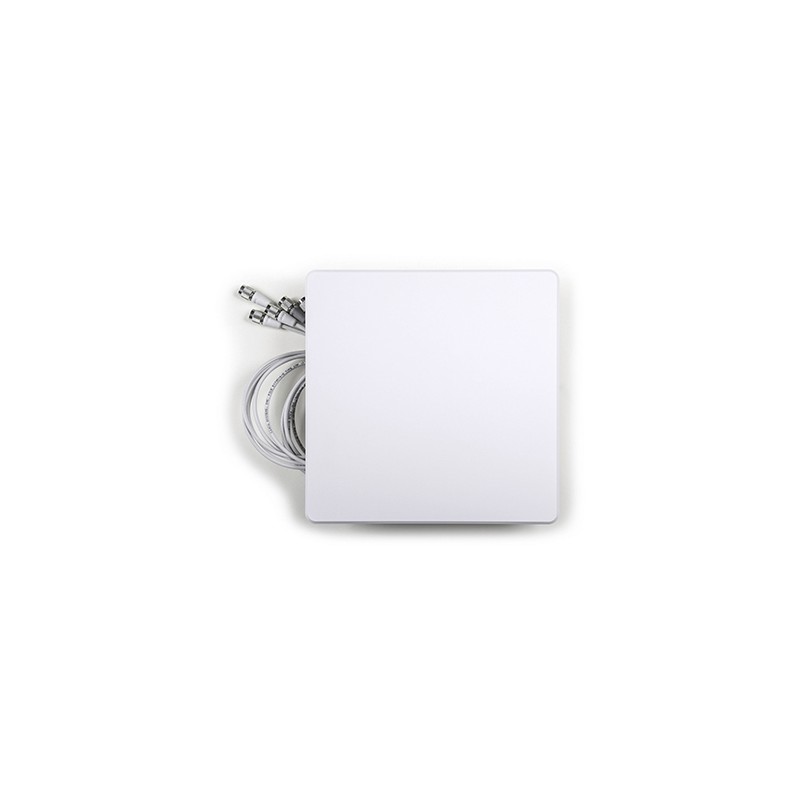

Cisco MA-ANT-3-E6
  • Cisco MA-ANT-3-E6
  • Cisco MA-ANT-3-E6
The Wide Patch antenna is ideal for wall-mounted deployments, aesthetic consensus installations in low density applications and wall mounted or ceiling mounted below 25 ft in high density applications. Some example use cases are in vestibules with very high ceilings but few devices connecting and lecture halls where install is close to the users. This antenna supports Meraki’s smart antenna capabilities. The price shown is for a 5-connector model; the Wide Patch antenna can be purchased with 5 or 6 connectors.
Antenna connector typeRP-TNC
Antenna gain (2.4 GHz)7 dBi
Antenna gain (5 GHz)6.3 dBi
Antenna gain level (max)7 dBi
Colour of productWhite
Diameter275 mm
Frequency band2.4/5 GHz
Height23.5 mm
Horizontal beam width (2.4 GHz)60 °
Horizontal beam width (5 GHz)60 °
Operating temperature (T-T)0 - 40 °C
Vertical beam width (2.4 GHz)60 °
Vertical beam width (5 GHz)60 °
Weight1170 g

MA-ANT-3-E6.pdf

Cisco MA-ANT-3-E6 Data Sheet

Download (536.71k)

Similar products

  • Cisco AIR-ANT5114P-N
    Cisco AIR-ANT5114P-N
  • Cisco AIR-ANT2566P4W-R
    Cisco AIR-ANT2566P4W-R
  • Cisco AIR-ANT2547V-N
    Cisco AIR-ANT2547V-N
  • Cisco AIR-ANT2524DG-R
    Cisco AIR-ANT2524DG-R
  • Cisco AIR-ANT2524DB-R
    Cisco AIR-ANT2524DB-R

Cisco MA-ANT-3-E6

2.4/5GHz, 7/6.3dBi, 60°, RP-TNC

MA-ANT-3-E6

In Stock

£508.46
£423.72 Ex VAT.
