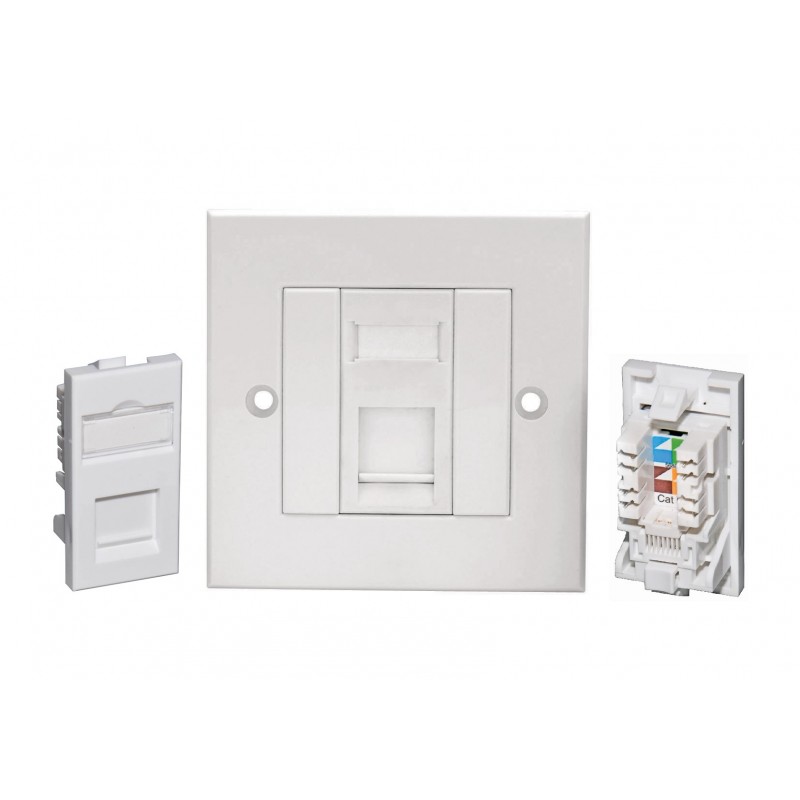

The Connectix Enhanced Category 5 loaded faceplate consists of 1 or two modules in loaded in a singlegang faceplate or 4 modules loaded in a doublegang faceplate.

Ready assembled outlet, ready for installation.

Exceeds Enhanced Category 5 specification when used alongside our cable and patch panels

Details:



Module Details

The Connectix Enhanced Category 5 Compact Module is designed to provide one of the shallowest wall outlets on the market. They are the ideal solution wherever back-box depth is a problem.

The attractive high gloss finish and easy to use labelling system are identical to all other Connectix Cabling Systems Modules, making them interchangeable in most applications.

Enhanced Category 5 Compact Modules can be fitted into single or dual gang faceplates and can be combined with quarter blanks and/or voice modules to provide the required configuration.

The modules offer extended PowerSum characteristics and exceed the ANSI/TIA-568-C specifications. When combined with Connectix Enhanced Category 5 Patch Panels and UTP Cable the link will perform well in excess of the Enhanced Category 5 Specification.

Features:

  • Suitable for Gigabit Ethernet applications
  • Shallow design requires minimal back-box depth
  • Interchangeable with other Euro modules and 1⁄4 blanks
  • Industry standard IDCs
  • Individually QA tested
  • Also available as PABX Secondary or Full Master Voice Module
Faceplate IncludedYes
Module Size25mm x 50mm Euromod
ShieldedNo
SpecificationCat5e
TerminationIDC Punchdown
