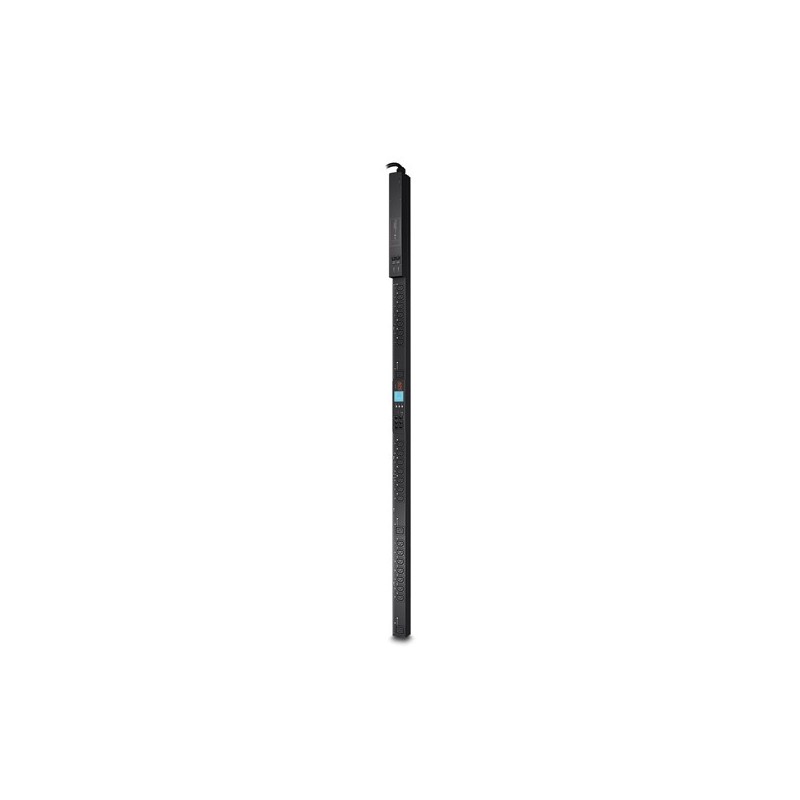

APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.

Includes: CAN Port Terminator, Installation guide, Rack Mounting brackets, Safety guide, Sample locking IEC power cord, Serial configuration cable

AC outlet types	C13 coupler, C19 coupler
AC outlets quantity	24 AC outlet(s)
Cable length	3 m
Certification	EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Colour of product	Black
Dimensions (WxDxH)	56.00 x 51.00 x 1829.00 mm
Input frequency	50/60 Hz
Maximum current	32 A
Maximum input current per phase	32 A
Maximum total current draw per phase	32 A
Nominal input voltage	230 V
Nominal output voltage	230 V
Non-operating altitude	0 - 15000 m
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	5 - 95 %
Operating relative humidity range	5 - 95 %
Operating temperature (T-T)	-5 - 45 °C
Operating temperature range (T-T)	-5 - 45 °C
Package dimensions (WxDxH)	162.00 x 118.00 x 2038.00 mm
Package weight	10500 g
PDU types	Switched
Power protection features	Overload
Rack mounting	0U
RoHS compliance	Yes
Source data-sheet	Icecat.biz
Storage relative humidity (H-H)	5 - 95 %
Storage relative humidity range	5 - 95 %
Storage temperature (T-T)	-25 - 65 °C
Storage temperature range (T-T)	-25 - 65 °C
Weight	8230 g
